MUDGUARD & SPOILER

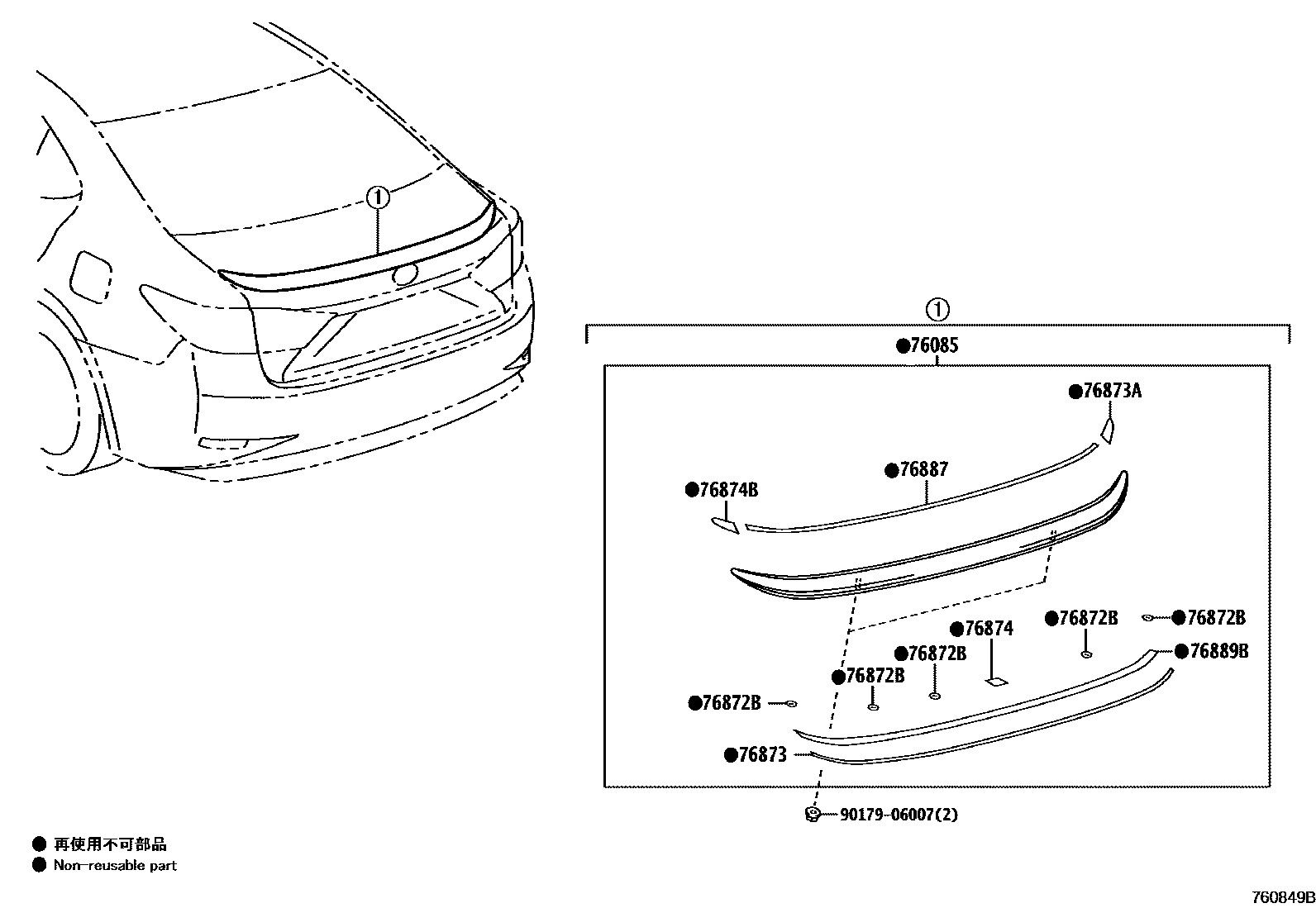

Parts diagram

76085SPOILER SUB-ASSY, REAR

main76085-33100-A0i201206-201507

WHITE PEARL CS.,077

main76085-33100-A1i201507

SONIC QUARTZ,085

main76085-33100-B0i201206-201507

MERCURY GRAY MC.,1H9

main76085-33100-B1i201206-201507

PLATINUM SILVER ME.,1J4

main76085-33100-B2i201408-201507

SONIC TITANIUM,1J7

main76085-33100-C0i201206-201507

BLACK,212

main76085-33100-C1i201206-201507

STARLIGHT BLACK GF.,217

main76085-33100-C2i201507

GRAPHITE BLACK GF.,223

main76085-33100-D0i201206-201507

RED MC.CS.,3R1

main76085-33100-E0i201206-201507

SLEEK ECRU ME.,4U7

main76085-33100-E1i201206-201507

FIRE AGATE M.M.,4V3

main76085-33100-E2i201507

AMBER CS.,4X2

main76085-33100-J0i201206-201408

SILVERY BLUE ME.,8U9

main76085-33100-J1i201206-201507

LAPIS LAZULI MC.,8V3

main76085-33100-J2i201507

DEEP BLUE MC.,8X5

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-33020i201507

76873PROTECTOR, REAR SPOILER, NO.2

main76873-33020i201507

76873APROTECTOR, REAR SPOILER, RH

main76873-33030i201507

76874PROTECTOR, REAR SPOILER, NO.3

main76874-33020i201507

76874BPROTECTOR, REAR SPOILER, LH

main76874-33030i201507

76887SEAL, REAR SPOILER

main76887-33020i201507

76889BSEAL, REAR SPOILER, NO.1

main76889-33010i201507

9017906007

main90179-06007¥80

9 parts on this diagram · 1 diagram in section
