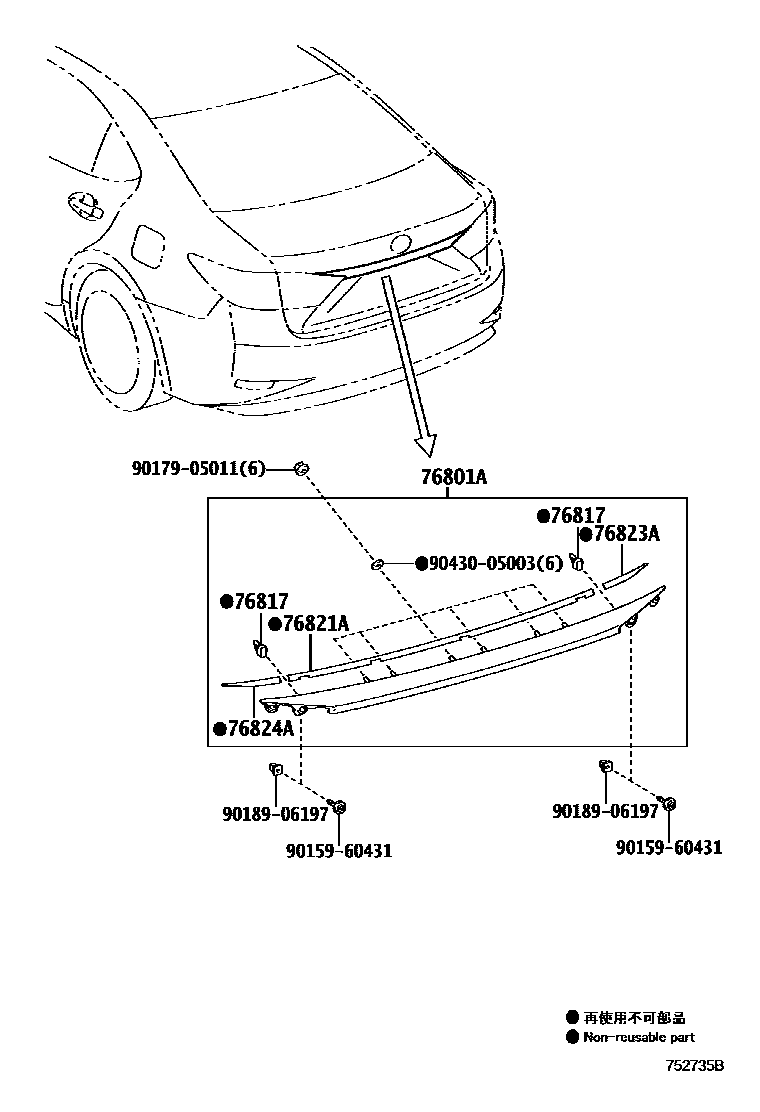

REAR MOULDING

0001 1 0002 1

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-33450iASV60,AVV60201206-201507

PLATED

main76801-33470iGSV60201206-201507

PLATED

main76801-33631iASV6#,GSV60201507

PLATED

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12070iASV60,AVV60,GSV60201206-201507

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-33030iASV60,AVV60,GSV60201206-201507

76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH

main76823-33010iASV60,AVV60,GSV60201206-201507

76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH

main76824-33020iASV60,AVV60,GSV60201206-201507

9015960431

main90159-60431

9017905011

main90179-05011

9018906197

main90189-06197

9043005003

main90430-05003

9 parts on this diagram · 2 diagrams in section
