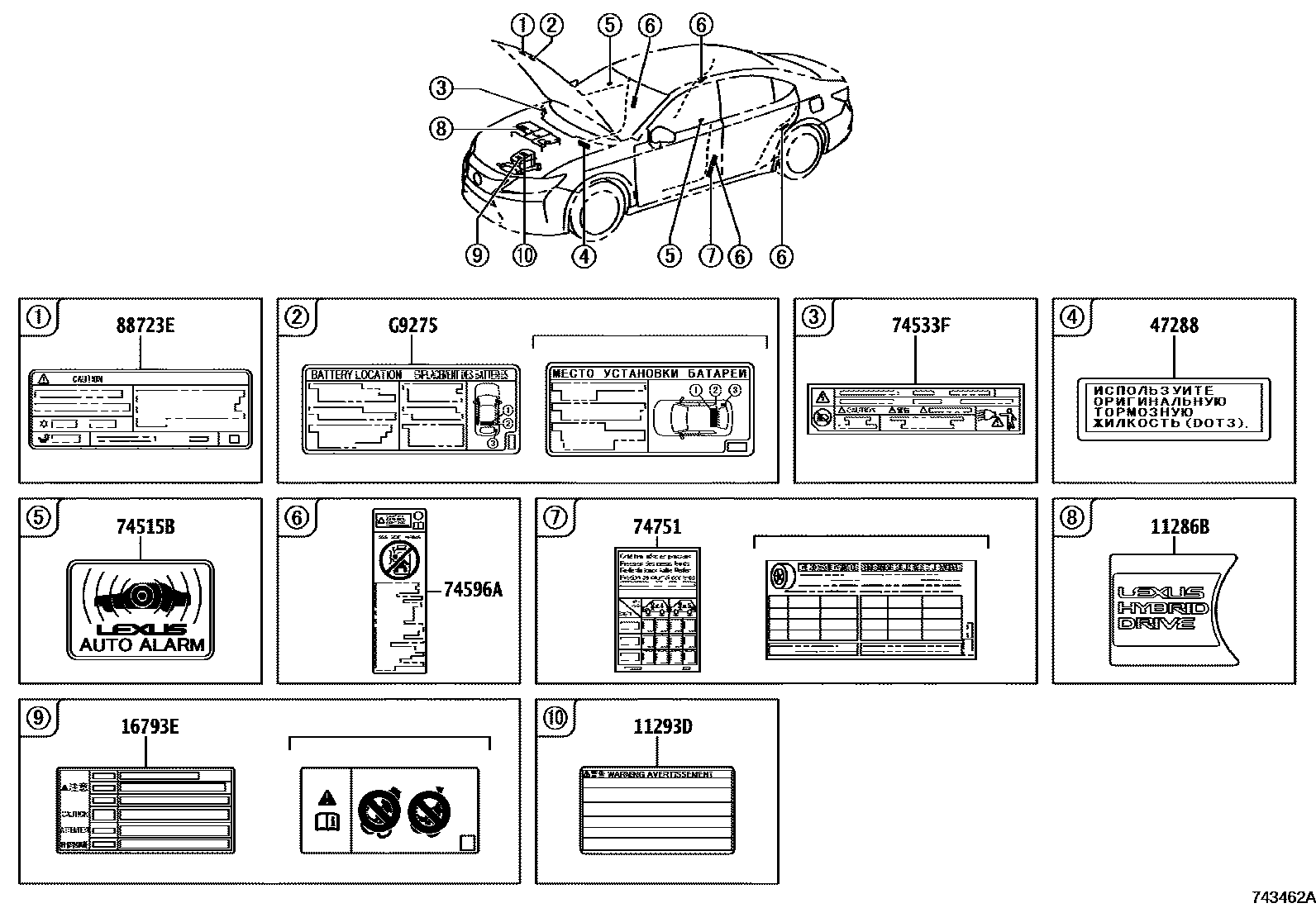

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1ENGINE ROOM & EXTERIOR 0003 1INTERIOR

11286BPLATE, ENGINE SPECIFICATION

main11286-36010i2ARFXE..AVV60201206-201507

11293DLABEL, ENGINE CAUTION

main11293-36070i2ARFXE..AVV60201206-201507

16793ELABEL, COOLING FAN CAUTION

main16793-31040i2AR#,2GRFE..ASV60,AVV60,GSV60201206-201507

main16793-36050i2ARFE,2GRFE..ASV60,GSV60201602-201806

47288LABEL, BRAKE FLUID NOTICE

main47288-33010

74515BPLATE, THEFT WARNING

main74515-30040×2iASV60,AVV60,GSV60201206-201308

74533FLABEL, HEADLAMP VOLTAGE CAUTION

main74533-33020×2iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

74596ALABEL, SIDE AIRBAG CAUTION

main74596-53011×4iASV60,AVV60,GSV60201206-201507

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33A60iASV60,AVV60,GSV60201206-201507

main42661-33B10iGSV60201507

BRAZIL SPEC

88723ELABEL, COOLER SERVICE CAUTION

main88723-30240iAVV60201206-201507

main88723-42070iASV6#,GSV60201507

G9275LABEL, BATTERY CAUTION, NO.1

mainG927576020supersedes G927576040iAVV60201308-201507

UKRAINE SPEC

10 parts on this diagram · 3 diagrams in section
