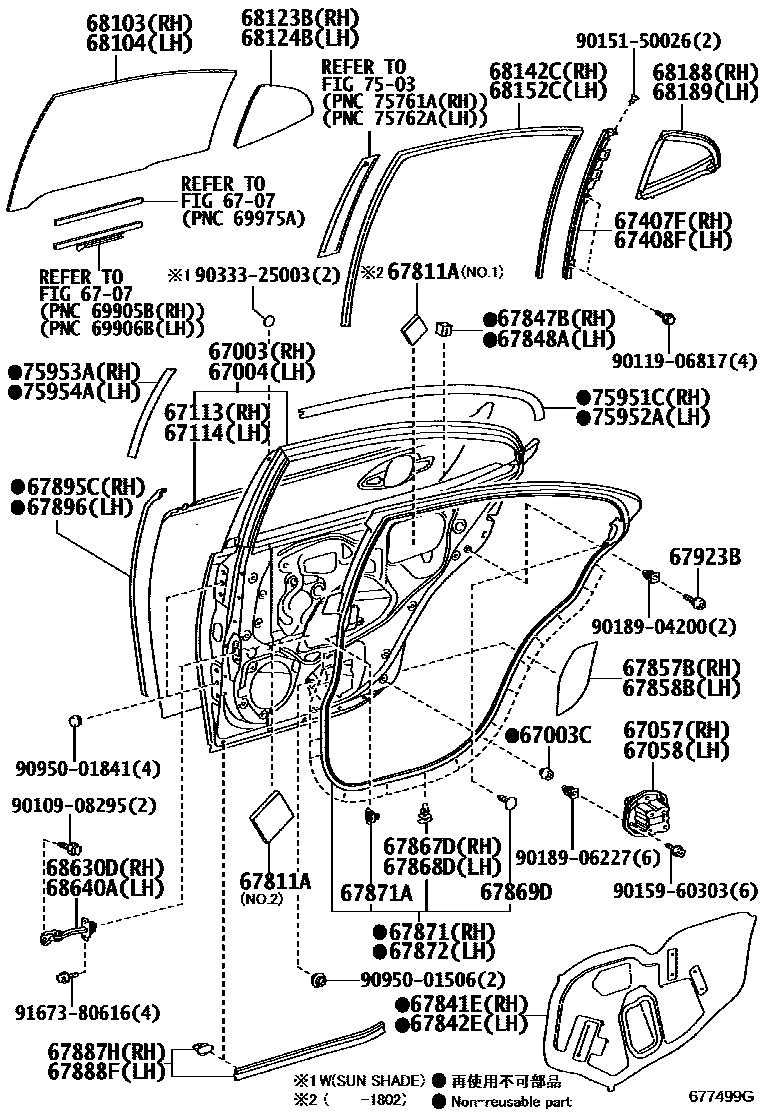

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
C PACKAGE
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
C PACKAGE
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
C PACKAGE
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
C PACKAGE
67811APAD, REAR DOOR SILENCER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
sub68123-33091
DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
sub68123-33101
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
sub68123-33101
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
sub68123-33101
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
C PACKAGE
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
sub68124-33091
DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
sub68124-33101
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
sub68124-33101
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
sub68124-33101
C PACKAGE
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75951CTAPE, BLACK OUT, INNER FRONT RH
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
C PACKAGE
75952ATAPE, BLACK OUT, INNER FRONT LH
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
C PACKAGE
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
9010908295
main90109-08295
9011906817
main90119-06817
9015150026
main90151-50026
9015960303
main90159-60303
9018904200
main90189-04200
9018906227
main90189-06227
9033325003
main90333-25003
9095001506
main90950-01506
9095001841
main90950-01841
9167380616
main91673-80616
53 parts on this diagram · 2 diagrams in section
