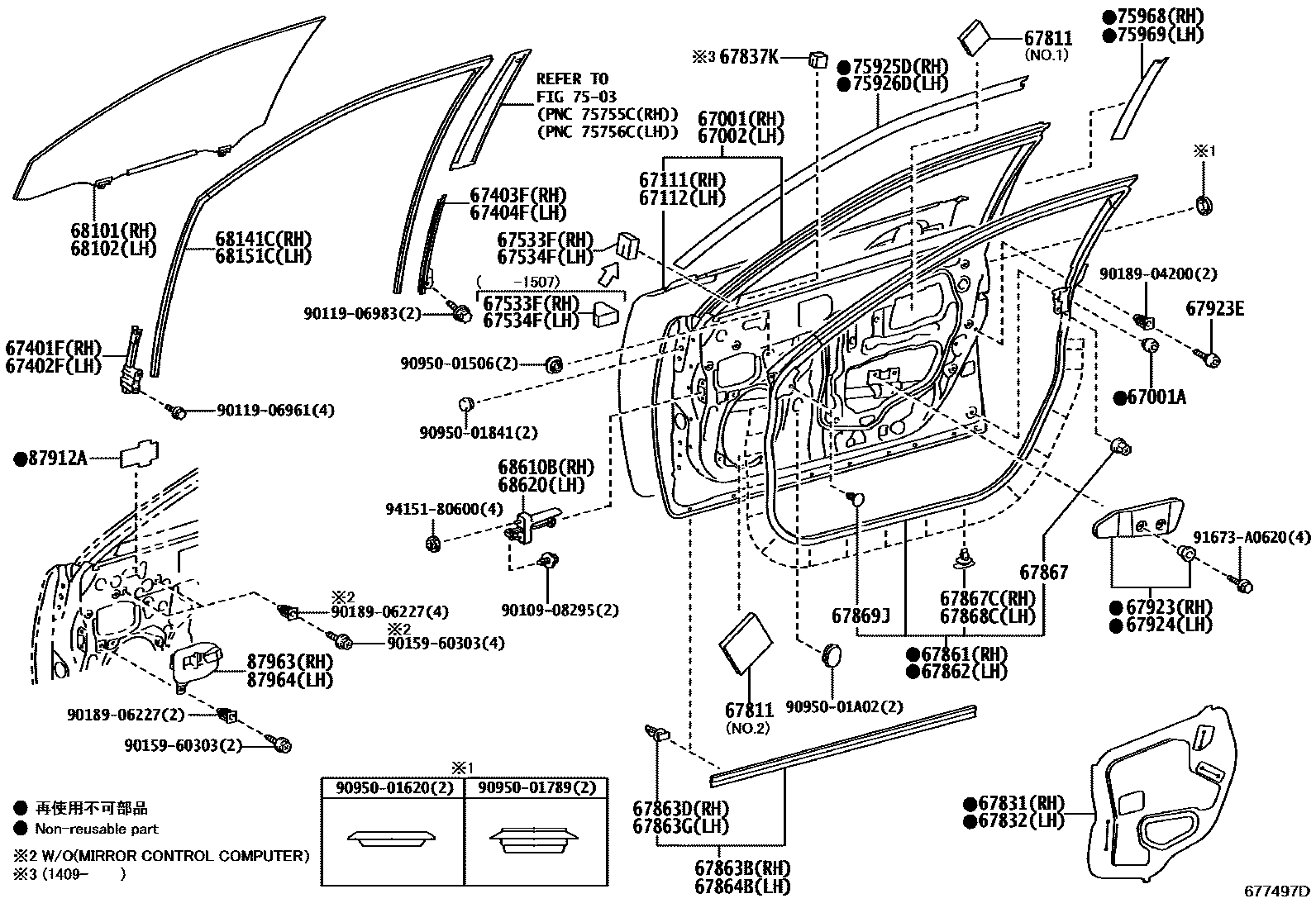

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-33210iASV60,AVV60,GSV60201206-201302

main67001-33211iASV60,AVV60,GSV60201303-201506

main67001-33220iASV60,AVV60,GSV60201506-201507

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iASV60,AVV60,GSV60201206-201507

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-33210iASV60,AVV60,GSV60201206-201302

main67002-33211iASV60,AVV60,GSV60201303-201506

main67002-33240iASV6#,GSV60201507

67111PANEL, FRONT DOOR, OUTER RH

main67111-33130iASV60,AVV60,GSV60201206-201507

67112PANEL, FRONT DOOR, OUTER LH

main67112-33120iASV6#,GSV60201507

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-33090iASV6#,GSV60201507

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-33100iASV6#,GSV60201507

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-33080iASV6#,GSV60201507

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-33080iASV6#,GSV60201507

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67847-48010iASV6#,GSV60201507

main67847-75010iASV60,AVV60,GSV60201206-201507

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main67847-48010iASV6#,GSV60201507

main67847-75010iASV60,AVV60,GSV60201206-201507

67811PAD, FRONT DOOR SILENCER

main67811-30100×2iASV6#,GSV60201507

NO.1:REFER ILLUST.

main67811-33080×2iASV60,AVV60,GSV60201206-201507

NO.2:REFER ILLUST.

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-33120iASV60,AVV60,GSV60201206-201507

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-33120iASV6#,GSV60201507

67837KSEAL, FRONT DOOR VENT

main67847-48040×4iASV60,AVV60,GSV60201409-201507

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-33100iASV6#,GSV60201507

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-33100iASV60,AVV60,GSV60201206-201507

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-33040iASV60,AVV60,GSV60201206-201507

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-48030×9iASV60,AVV60,GSV60201206-201507

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-48030×9iASV6#,GSV60201507

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-33040iASV60,AVV60,GSV60201206-201507

67867CLIP, DOOR WEATHERSTRIP

main90467-06084×2iASV60,AVV60,GSV60201206-201507

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iASV60,AVV60,GSV60201206-201507

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iASV6#,GSV60201507

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iASV60,AVV60,GSV60201206-201507

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-33090iASV60,AVV60,GSV60201206-201507

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48060×2iASV6#,GSV60201507

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-33060iASV60,AVV60,GSV60201206-201507

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-33180supersedes 68101-33171iASV60,AVV60,GSV60201206-201303

FRONT DOOR GLASS-LAMINATED(ACOUSTIC)

main68101-33181supersedes 68101-33171iASV6#,GSV60201507

FRONT DOOR GLASS-UV-CUT GREEN(ACOUSTIC)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-33180supersedes 68102-33171iASV60,AVV60,GSV60201206-201303

FRONT DOOR GLASS-LAMINATED(ACOUSTIC)

main68102-33181supersedes 68102-33171iASV6#,GSV60201507

FRONT DOOR GLASS-UV-CUT GREEN(ACOUSTIC)

68141CRUN, FRONT DOOR GLASS, RH

main68141-33121iASV6#,GSV60201507

68151CRUN, FRONT DOOR GLASS, LH

main68151-33111iASV6#,GSV60201507

68610BCHECK ASSY, FRONT DOOR, RH

main68610-33100iASV6#,GSV60201507

68620CHECK ASSY, FRONT DOOR, LH

main68620-33100iASV6#,GSV60201507

7503

75925DTAPE, BLACK OUT, INNER FRONT RH

main75975-33030iASV6#,GSV60201507

75926DTAPE, BLACK OUT, INNER FRONT LH

main75976-33030iASV6#,GSV60201507

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75985-33030iASV60,AVV60,GSV60201206-201507

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75986-33030iASV60,AVV60,GSV60201206-201507

87912APROTECTOR, OUTER MIRROR

main87912-33030×2iASV6#,GSV60201507

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-33010iASV60,AVV60,GSV60201206-201507

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-33010iASV6#,GSV60201507

9010908295

main90109-08295

9011906961

main90119-06961

9011906983

main90119-06983

9015960303

main90159-60303

9018904200

main90189-04200

9018906227

main90189-06227

9095001506

main90950-01506

9095001620

main90950-01620

9095001789

main90950-01789

9095001841

main90950-01841

9095001A02

main90950-01A02

91673A0620

main91673-A0620

9415180600

main94151-80600

55 parts on this diagram · 2 diagrams in section
