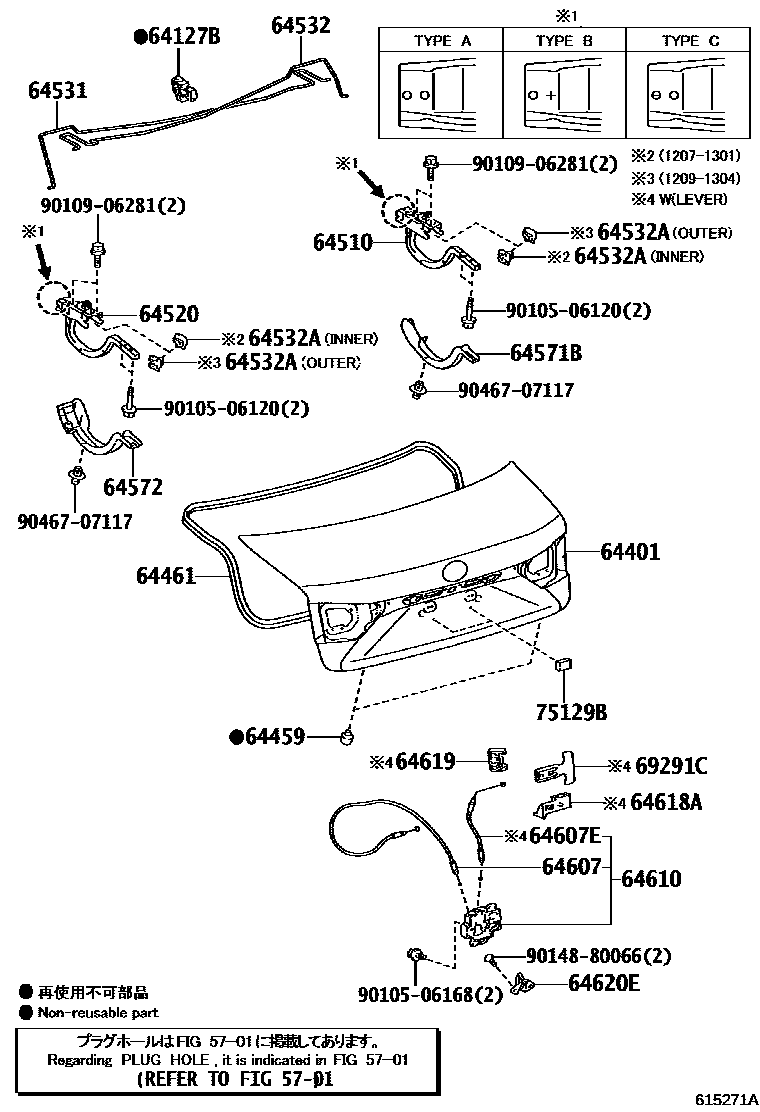

LUGGAGE COMPARTMENT DOOR & LOCK
5701
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
TYPE A:REFER ILLUST.
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
TYPE A:REFER ILLUST.
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID
AUTO & EASY CLOSER DOOR-WITH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID
AUTO & EASY CLOSER DOOR-WITH
64532ABUSH(FOR LUGGAGE DOOR HINGE TORSION BAR)
RH,INNER
LH,INNER
RH,OUTER
LH,OUTER
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM0#,1#,2#
64619PLATE, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE
75129BCUSHION, REAR LICENCE PLATE
9010506120
9010506168
9010906281
9014880066
9046707117
25 parts on this diagram · 2 diagrams in section
