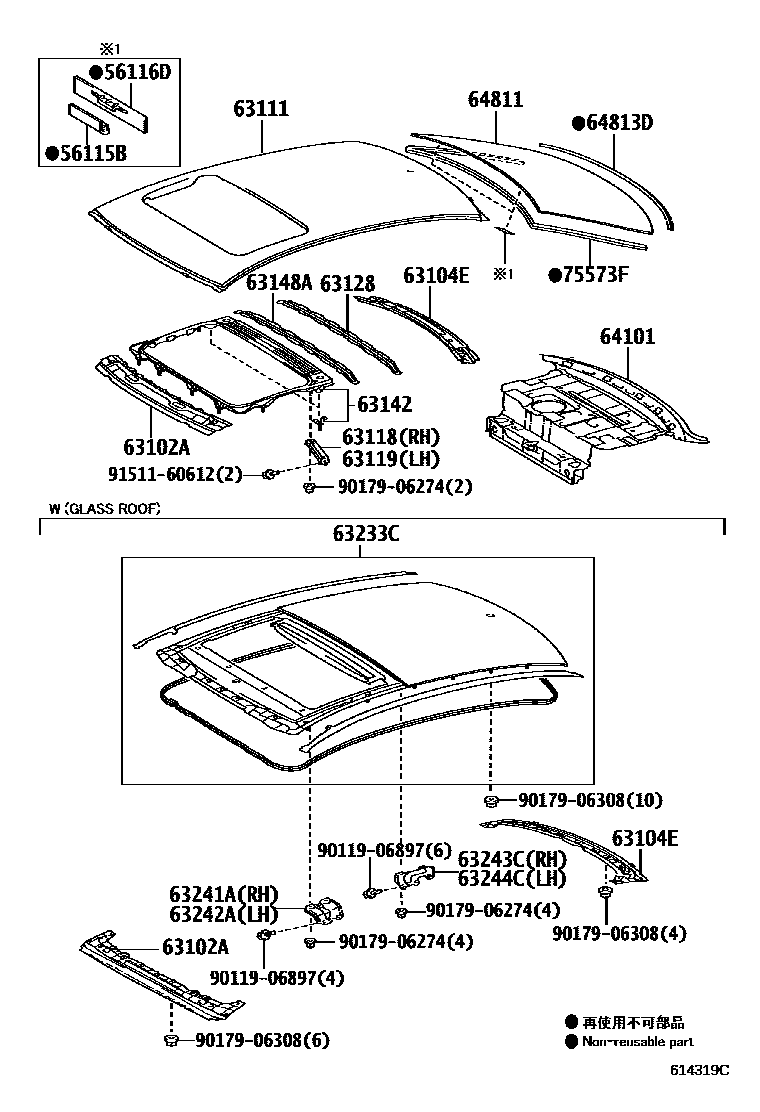

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63128REINFORCEMENT, ROOF PANEL, NO.6
63148AREINFORCEMENT, ROOF PANEL, NO.7
63233CPANEL, SLIDING ROOF HOUSING
63241ABRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242ABRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63243CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH
63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH
64101PANEL SUB-ASSY, UPPER BACK
64811GLASS, BACK WINDOW
sub64801-33905
AUDIO-*DA & CD & 8SPEAKER & DAB
AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB
AUDIO-EMVN & DVD & 8SPEAKER & DAB
CURACAO SPEC&AUDIO-*DA & DVD & 8SPEAKER
CENTRAL & SOUTH AMERICA SPEC&AUDIO-*DA & DVD & 8SPEAKER
BRAZIL SPEC&AUDIO-EMVN & DVD & 8SPEAKER
GUATEMALA SPEC&AUDIO-*DA & DVD & 8SPEAKER
64813DDAM, BACK WINDOW GLASS ADHESIVE
75573FMOULDING, BACK WINDOW, OUTSIDE
9011906897
main90119-06897
9017906274
main90179-06274
9017906308
main90179-06308
9151160612
main91511-60612
23 parts on this diagram · 3 diagrams in section
