MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
(L)
(J)
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#,3#
ORCHID BROWN,TRIM00
CAMEL,TRIM0#
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,5#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK
BLACK
58521BHOOK, FLOOR CARPET
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
BLACK
BLACK
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK
58611BPLATE, MAT SET, NO.1
58612BPLATE, MAT SET, NO.2
58621JSILENCER, CENTER CONSOLE, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
8714
9046710208
main90467-10208

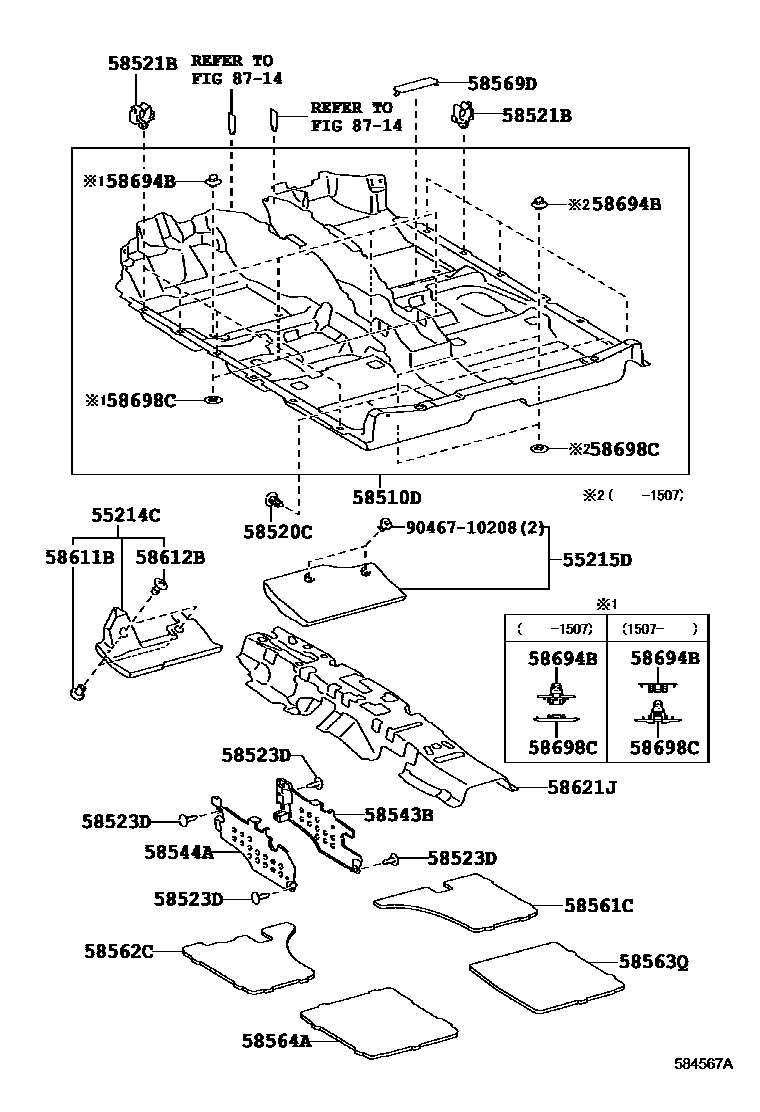

20 parts on this diagram · 1 diagram in section
