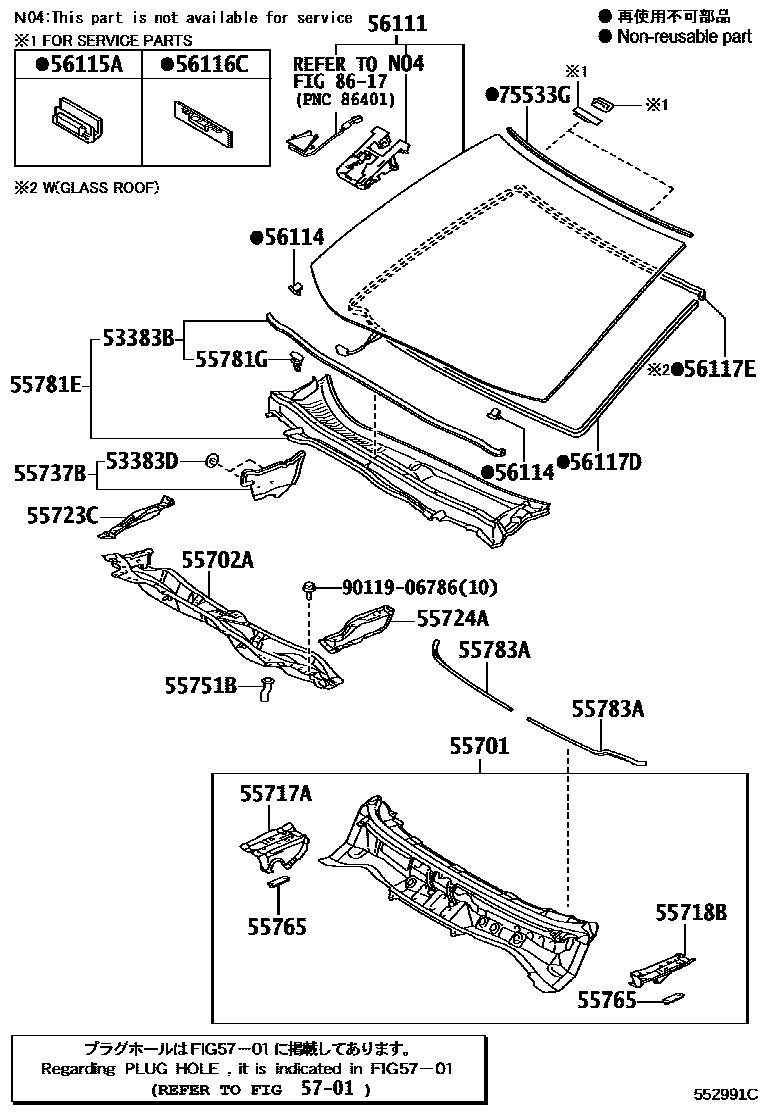

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-33110i201507

main53383-33100i201308-201507

CURACAO SPEC

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-09050×2i201507

55701PANEL SUB-ASSY, COWL

main55701-33190i201206-201507

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-33100i201206-201507

main55702-33120i201206-201507

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33070i201206-201507

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33070i201206-201507

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33080i201206-201307

main55723-33081i201308-201507

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33090i201206-201507

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-33010i201507

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-33040i201507

main55751-33050i201206-201507

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2i201206-201507

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33200i201507

main55708-33190i201308-201507

CURACAO SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main67867-12150×3i201206-201507

55783APAD, COWL TOP SILENCER

main55783-33110×2i201507

56111GLASS, WINDSHIELD

main56101-33931supersedes 56101-33960i201206-201303

G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main56101-33934supersedes 56101-33962i201206-201303

HEAD LAMP-DISCHARGE & *AHB & *DRL

main56101-33937supersedes 56101-33960i201206-201303

G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*

main56101-33938supersedes 56101-33959i201206-201303

G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main56101-33958i201308-201408

G PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & 8S

main56101-33961supersedes 56101-33962i201303-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main56101-33964i201308-201408

G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*

main56101-33965supersedes 56101-33959i201308-201408

G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15

main56101-33976i201507-201703

PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

sub56101-3Y900

sub86466-33041

main56101-33978i201507-201703

PRE-COLLISION SYSTEM-WITH&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAINSENSOR & TIME ADJUSTMENT)

sub56101-3Y902

sub86466-33041

main56101-3T994i201703

PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

main56101-3T996i201703

PRE-COLLISION SYSTEM-WITH&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAINSENSOR & TIME ADJUSTMENT)

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2i201507

main56114-50020×2i201206-201207

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i201206-201507

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i201507

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010supersedes 56117-64010i201206-201507

*D,L=2914

main56117-50140i201408-201507

*D,L=628,G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR& TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP

56117EDAM, WINDOW GLASS ADHESIVE

main56117-50140i201206-201507

*D,L=628,G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR& TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&SEAT HEATER-WITH(HEATER(*DRP

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-33100i201206-201507

main75533-33110i201308-201408

G PACKAGE&MOON ROOF-WITH(GLASS ROOF)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15

8617

9011906786

main90119-06786

24 parts on this diagram · 2 diagrams in section
