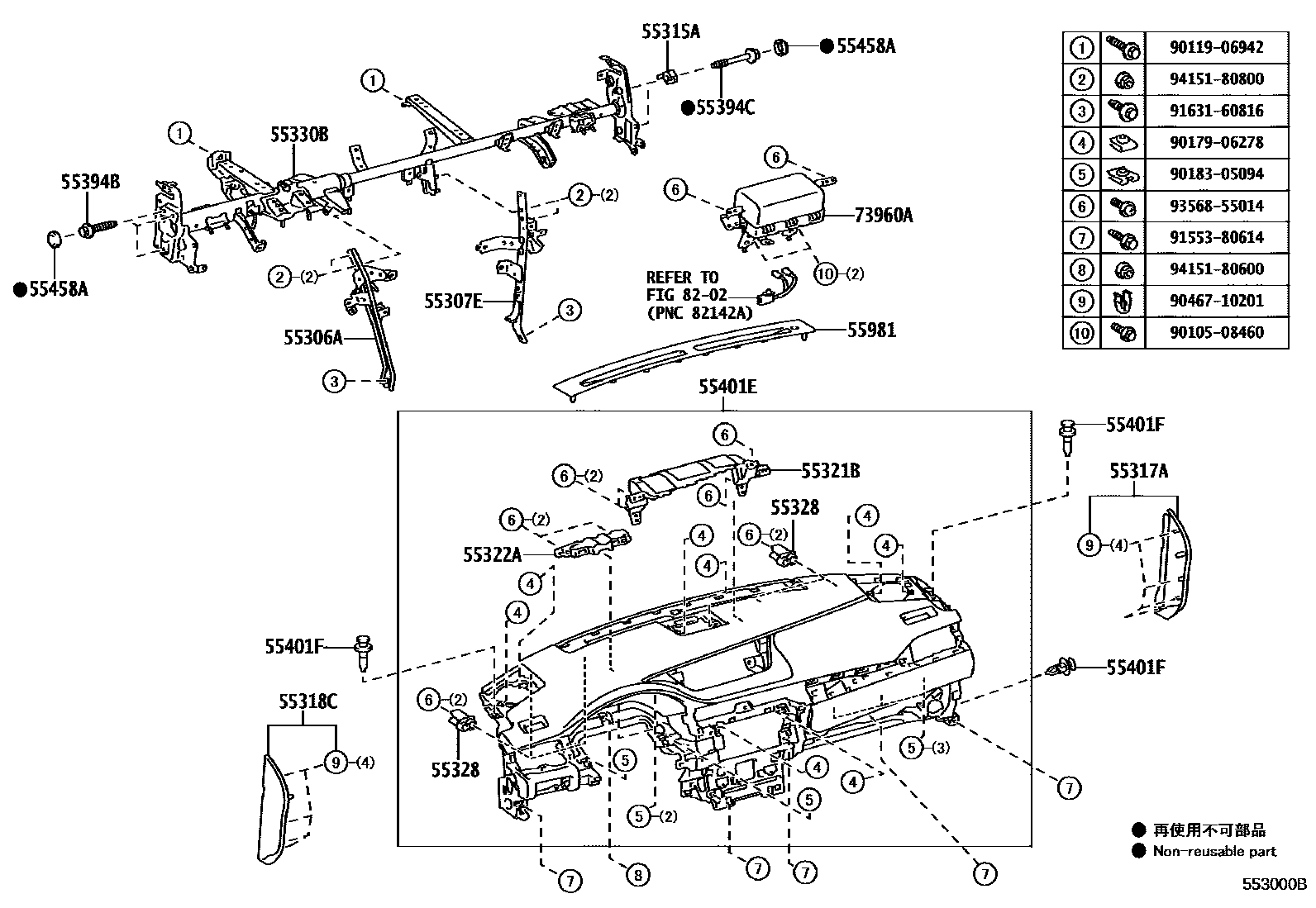

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1CENTER 0003 1PASSENGER SIDE 0004 1DRIVER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33140iASV60,AVV60,GSV60201206-201507

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33170iASV6#,GSV60201507

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iASV60,AVV60,GSV60201206-201507

55317APANEL, INSTRUMENT SIDE, RH

main55317-33110-A0iASV60201206-201507

IVORY,TRIM01

main55317-33110-C0iASV6#201507

BLACK,TRIM1#,2#

main55317-33110-E0iAVV60,GSV60201206-201507

ORCHID BROWN,TRIM00

main55317-33110-E1iGSV60201507

NOBLE BROWN,TRIM0#,5#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-33100-A0iASV60201206-201507

IVORY,TRIM01

main55318-33100-C0iASV60201206-201507

BLACK,TRIM1#,2#

main55318-33100-E0iAVV60,GSV60201206-201507

ORCHID BROWN,TRIM00

main55318-33100-E1iASV6#201507

NOBLE BROWN,TRIM0#,5#

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-33130iASV60,AVV60,GSV60201206-201507

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-33120iASV6#,GSV60201507

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iASV6#,GSV60201507

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-33400iASV60,AVV60,GSV60201206-201507

main55330-33410iASV6#,GSV60201507

55394BBOLT, INSTRUMENT PANEL

main90119-08C98×3iASV60,AVV60,GSV60201206-201507

55394CBOLT, INSTRUMENT PANEL

main90119-08C99×2iASV60,AVV60,GSV60201206-201507

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33180-C3iASV60201206-201507

BLACK/IVORY,TRIM0#

main55401-33180-C4iASV6#,GSV60201507-201512

BLACK/BLACK,TRIM1#,2#

main55401-33180-C5iAVV60,GSV60201206-201507

BLACK/ORCHID BROWN,TRIM00

main55401-33180-C6iASV60201410-201507

BLACK/CRIMSON,TRIM3#

main55401-33180-E3iASV6#,GSV60201507-201512

NOBLE BROWN/TOPAZ BROWN,TRIM5#

main55401-33180-E4iASV6#,GSV60201507-201512

NOBLE BROWN/IVORY,TRIM0#

main55401-33181-C4iASV6#201601

BLACK/BLACK,TRIM1#,2#

main55401-33181-E3iGSV60201601

NOBLE BROWN/TOPAZ BROWN,TRIM5#

main55401-33181-E4iASV6#,GSV60201601

NOBLE BROWN/IVORY,TRIM0#

55401FCLIP(FOR SAFETY PAD)

main52161-16010×3iASV6#,GSV60201507

sub52161-0K040

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×5iASV6#,GSV60201507

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33130-C0iGSV60201507

BLACK,TRIM1#,2#

main55981-33130-E0iGSV60201507

NOBLE BROWN,TRIM0#,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33150iASV60,AVV60,GSV60201206-201507

8202

9010508460

main90105-08460

9011906942

main90119-06942

9017906278

main90179-06278

9018305094

main90183-05094

9046710201

main90467-10201

9155380614

main91553-80614

9163160816

main91631-60816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 4 diagrams in section
