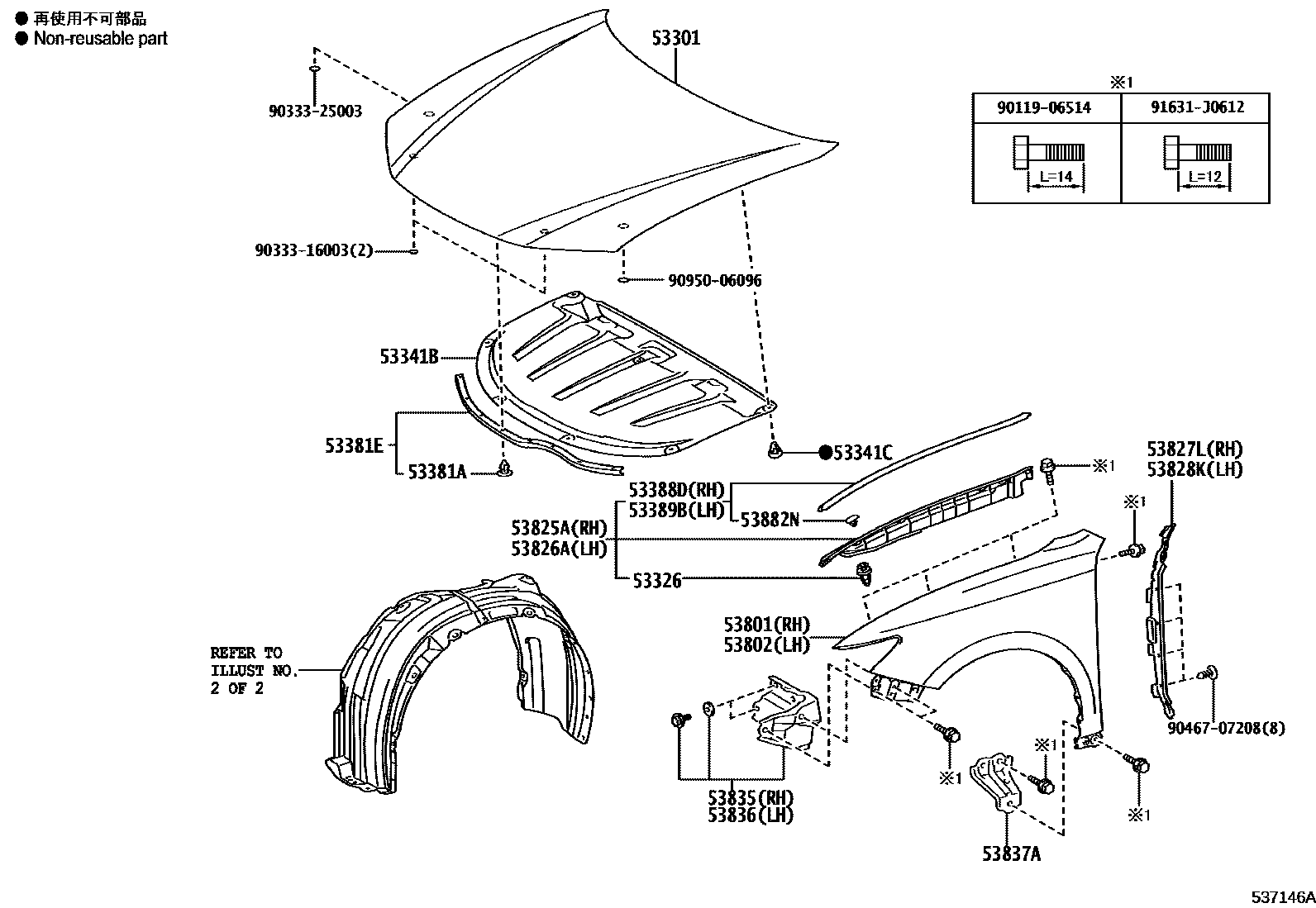

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-33160iASV60,AVV60,GSV60¥86,100201206-201507

53326CLIP, HOOD PROTECTOR

main90467-10167iASV60,AVV60,GSV60¥90201206-201507

53341BINSULATOR, HOOD

main53341-33200iASV60,AVV60,GSV60¥6,100201206-201507

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iASV60,AVV60,GSV60¥120201206-201507

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iASV60,AVV60,GSV60¥100201206-201507

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-33100iASV60,AVV60,GSV60¥1,150201206-201507

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-33070iASV60,AVV60,GSV60201206-201507

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-33080iASV60,AVV60,GSV60201206-201507

53801FENDER SUB-ASSY, FRONT RH

main53811-33230iASV60,AVV60,GSV60201206-201507

53802FENDER SUB-ASSY, FRONT LH

main53812-33230iASV60,AVV60,GSV60¥59,400201206-201507

53825APROTECTOR, FRONT FENDER, UPPER RH

main53805-33040iASV60,AVV60,GSV60201206-201507

53826APROTECTOR, FRONT FENDER, UPPER LH

main53806-33050iASV60,AVV60,GSV60201206-201507

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-33070iASV60,AVV60,GSV60201206-201507

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33070iASV60,AVV60,GSV60¥2,400201206-201507

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-33100iASV60,AVV60,GSV60201206-201507

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53804-33040iASV60,AVV60,GSV60¥1,750201206-201507

53837ABRACKET, FRONT SIDE PANEL, NO.2

main53837-33010iASV60,AVV60,GSV60¥500201206-201507

53882NCLIP(FOR FRONT FENDER SEAL)

main65487-60010iASV60,AVV60,GSV60¥80201206-201507

9011906514

main90119-06514¥100

9033316003

main90333-16003¥80

9033325003

main90333-25003¥70

9046707208

main90467-07208¥110

9095006096

main90950-06096¥100

91631J0612

main91631-J0612¥110

24 parts on this diagram · 2 diagrams in section
