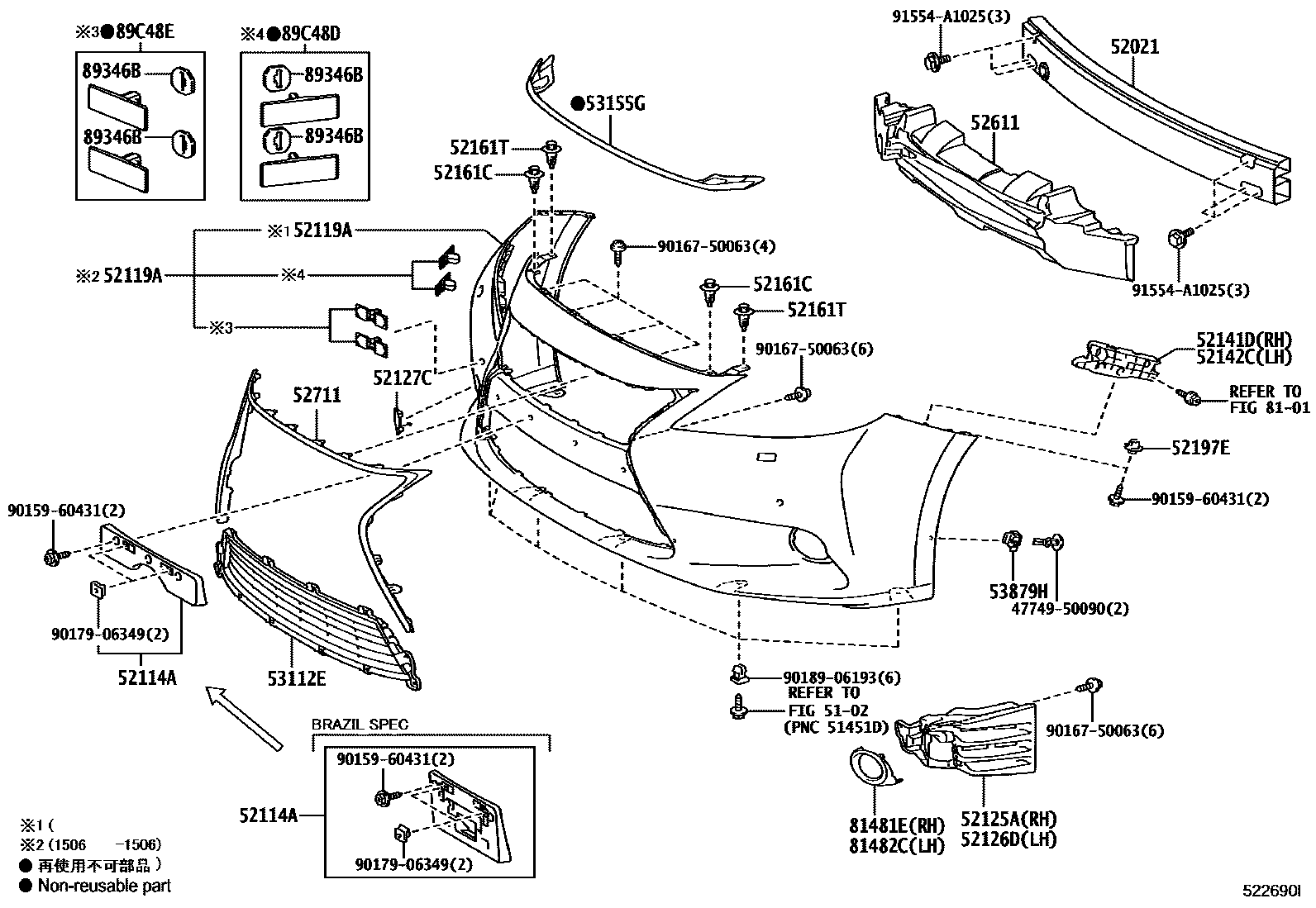

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-33190iASV60,AVV60,GSV60201206-201507

main52021-33210iASV6#,GSV60201507

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-33340iASV60,AVV60,GSV60201206-201507

main52114-33450iASV6#,GSV60201507

main52114-33320iGSV60201206-201507

BRAZIL SPEC

main52114-33380iGSV60201507

BRAZIL SPEC

52119ACOVER, FRONT BUMPER

main52119-33998iAVV60,GSV60201206-201506

PAINT REQ.

main52119-3T910iASV6#,GSV60201507

PAINT REQ.

main52119-3T922supersedes 52119-3T918iAVV60,GSV60201506-201507

PAINT REQ.

main52119-33994iGSV60201206-201506

PAINT REQ.,BRAZIL SPEC

main52119-3T920iGSV60201506-201507

PAINT REQ.,BRAZIL SPEC

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-33110iASV60,AVV60,GSV60201206-201212

main52125-33111iASV60,AVV60,GSV60201301-201507

main52125-33120iASV6#,GSV60201507

52126DBRACKET, FOG LAMP MOUNTING, LH

main52126-33110iASV60,AVV60,GSV60201206-201212

main52126-33111iASV60,AVV60,GSV60201301-201507

main52126-33120iASV6#,GSV60201507

52127CCOVER, FRONT BUMPER HOLE

main52128-33210iASV6#,GSV60201507

main52128-33912iASV60,AVV60,GSV60201206-201507

52141DSTAY, FRONT BUMPER, RH

main52145-33060iASV60,AVV60,GSV60201206-201507

main52145-33070iASV6#,GSV60201507

52142CSTAY, FRONT BUMPER, LH

main52146-33060iASV60,AVV60,GSV60201206-201507

main52146-33070iASV6#,GSV60201507

52161CPIECE, FRONT BUMPER

main52161-16010×2iASV60,AVV60,GSV60201206-201507

sub52161-0K040

52161TPIECE, FRONT BUMPER

main52161-16010×2iASV60,AVV60,GSV60201206-201507

sub52161-0K040

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040×2iASV60,AVV60,GSV60201206-201507

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33220iASV60,AVV60,GSV60201206-201507

main52611-33280iASV6#,GSV60201507

52711MOULDING, FRONT BUMPER

main53121-33050supersedes 53121-33060iGSV60201206-201507

PLATED,KAZAKHSTAN SPEC

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-33070iAVV60201206-201507

NO PAINT REQ.

main53112-33150iASV60,GSV60201206-201507

NO PAINT REQ.

53155GSEAL, RADIATOR GRILLE

main53155-33050iASV60,AVV60,GSV60201206-201507

main53155-33060iASV6#,GSV60201507

53879HRETAINER, FRONT FENDER LINER

main53879-30040×2iASV6#,GSV60201507

8101

81481ECOVER, FOG LAMP, RH

main81481-33040supersedes 81481-33050iGSV60201206-201507

AZERBAYCAN SPEC&HEAD LAMP-DISCHARGE & *AHB & *DRL

main81481-33060supersedes 81481-33070iGSV60201507

CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC

81482CCOVER, FOG LAMP, LH

main81482-33040supersedes 81482-33070iASV60201608

CHILE SPEC

main81482-33050supersedes 81482-33060iGSV60201206-201507

AZERBAYCAN SPEC&HEAD LAMP-DISCHARGE & *AHB & *DRL

89346BADJUSTER, ULTRASONIC SENSOR

main89346-33010×4iASV60,AVV60,GSV60201208-201507

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-33110×2iASV60,AVV60,GSV60201206-201507

main89348-78020×2iASV6#,GSV60201507-201806

89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-33110×2iASV60,AVV60,GSV60201206-201507

4774950090CLIP, PIN HOLD

main47749-50090

9015960431

main90159-60431

9016750063

main90167-50063

9017906349

main90179-06349

9018906193

main90189-06193

91554A1025

main91554-A1025

29 parts on this diagram · 2 diagrams in section
