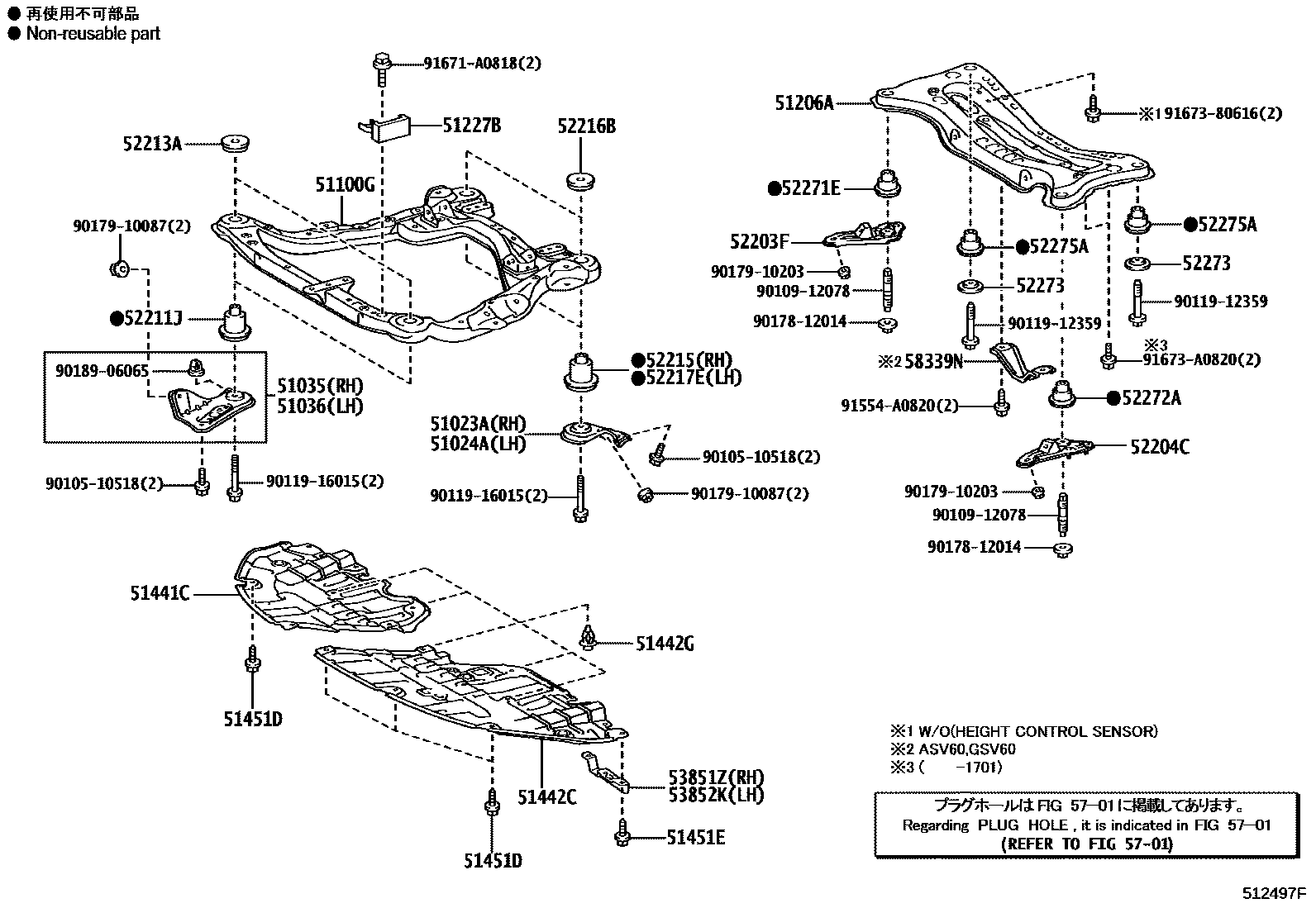

SUSPENSION CROSSMEMBER & UNDER COVER
51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51206AMEMBER SUB-ASSY, REAR SUSPENSION
sub51206-06091
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51441CCOVER, ENGINE UNDER, RH
51442CCOVER, ENGINE UNDER, LH
51442GCLIP, ENGINE UNDER COVER, NO.1
51451DSCREW, NO.1
51451ESCREW, NO.2
52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
53851ZPAD, FRONT WHEEL OPENING EXTENSION, RH
53852KPAD, FRONT WHEEL OPENING EXTENSION, LH
5701
58339NBRACKET, JACK UP
9010510518
main90105-10518
9010912078
main90109-12078
9011912359
main90119-12359
9011916015
main90119-16015
9017812014
main90178-12014
9017910087
main90179-10087
9017910203
main90179-10203
9018906065
main90189-06065
91554A0820
main91554-A0820
91671A0818
main91671-A0818
9167380616
main91673-80616
91673A0820
main91673-A0820
39 parts on this diagram · 1 diagram in section
