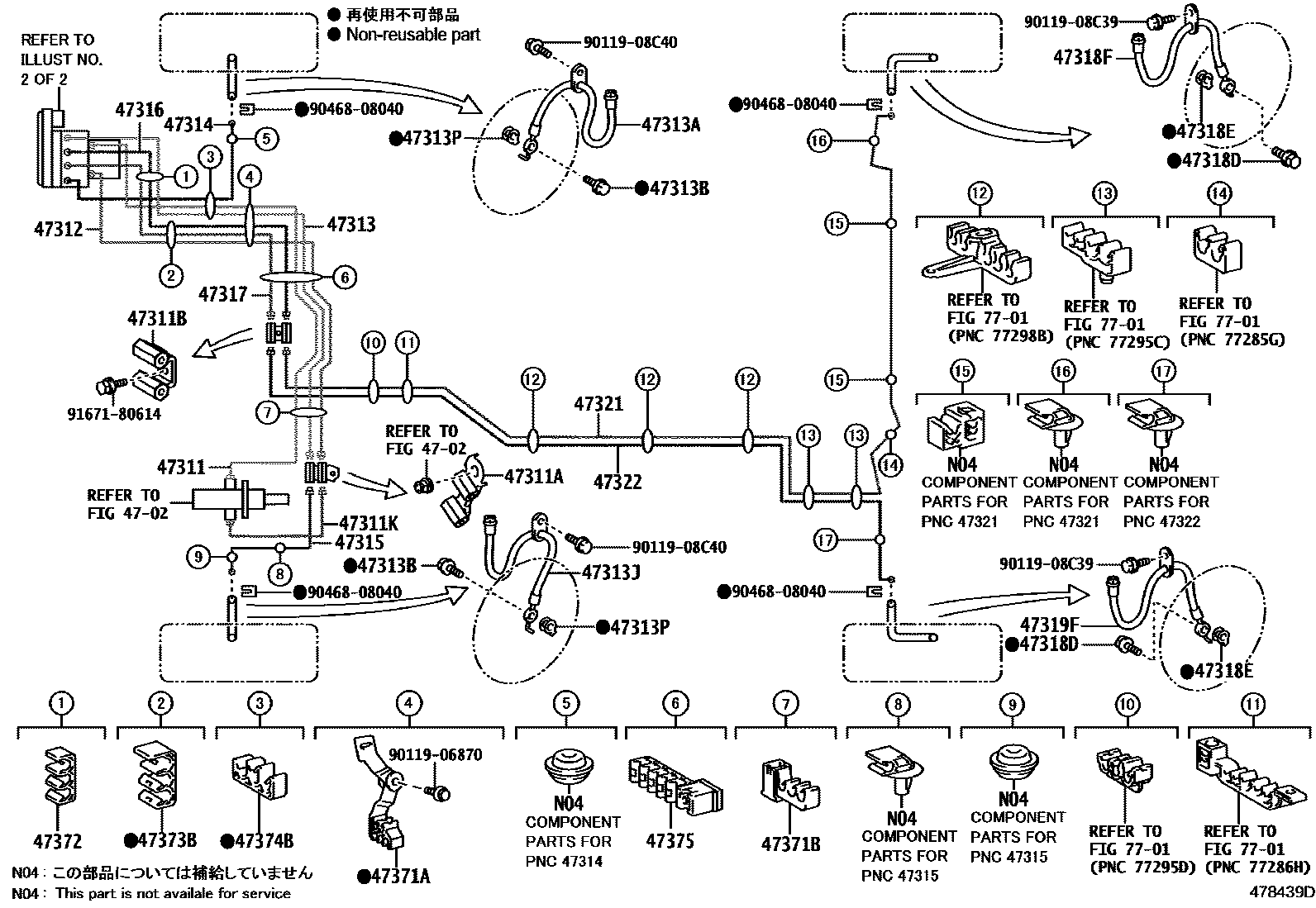

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR 0005 1BRAKE BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-33301iAVV60201206-201507

main47311-33310iASV60,GSV60201206-201507

main47311-33330iASV6#,GSV60201507

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-12066iASV60,GSV60201206-201507

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iASV6#,GSV60201206-201507

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-33240iASV60,GSV60201206-201507

47312TUBE, FRONT BRAKE, NO.2

main47312-33250iASV60,GSV60201206-201507

main47312-33270iASV6#,GSV60201507

47313TUBE, FRONT BRAKE, NO.3

main47313-33260iASV60,GSV60201206-201507

main47313-33280iASV6#,GSV60201507

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G61iASV60,AVV60,GSV60201206-201507

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iASV60,AVV60,GSV60201206-201507

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G62iASV60,AVV60,GSV60201206-201507

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iASV60,AVV60,GSV60201206-201507

47314TUBE, FRONT BRAKE, NO.4

main47314-33210iAVV60201206-201507

sub47314-33260

main47314-33220iASV60,GSV60201206-201507

main47314-33280iASV6#,GSV60201507

47315TUBE, FRONT BRAKE, NO.5

main47315-33240iASV60,GSV60201206-201507

sub47315-33291

main47315-33280iAVV60201206-201507

sub47315-33310

main47315-33291iASV6#,GSV60201507

47316TUBE, FRONT BRAKE, NO.6

main47316-33340iAVV60201206-201507

sub47316-33410

main47316-33350iASV60,GSV60201206-201507

main47316-33370iASV6#,GSV60201507

47317TUBE, FRONT BRAKE, NO.7

main47317-33330iAVV60201206-201507

sub47317-33400

main47317-33340iASV60,GSV60201206-201507

main47317-33360iASV6#,GSV60201507

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iASV60,AVV60,GSV60201206-201507

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iASV60,AVV60,GSV60201206-201507

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G63iASV60,AVV60,GSV60201206-201507

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G64iASV60,AVV60,GSV60201206-201507

47321TUBE, REAR BRAKE, NO.1

main47321-33190iASV60,AVV60,GSV60201206-201507

sub47321-33191

main47321-33191iASV60,GSV60201507

main47321-33210iASV61201507

47322TUBE, REAR BRAKE, NO.2

main47322-33160iASV60,AVV60,GSV60201206-201507

sub47322-33161

main47322-33161iASV60,GSV60201507

main47322-33180iASV61201507

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33280iASV6#,GSV60201206-201507

main90464-00880iAVV60201206-201507

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D50iASV60,GSV60201206-201507

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iASV6#,GSV60201206-201507

main90949-01540iAVV60201206-201507

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00894iASV60,GSV60201206-201507

main90949-01D16iAVV60201206-201507

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00919iASV60,GSV60201206-201507

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D51iASV60,GSV60201206-201507

7701

9011906870

main90119-06870

9011908C39

main90119-08C39

9011908C40

main90119-08C40

9046808040

main90468-08040

9167180614

main91671-80614

33 parts on this diagram · 5 diagrams in section
