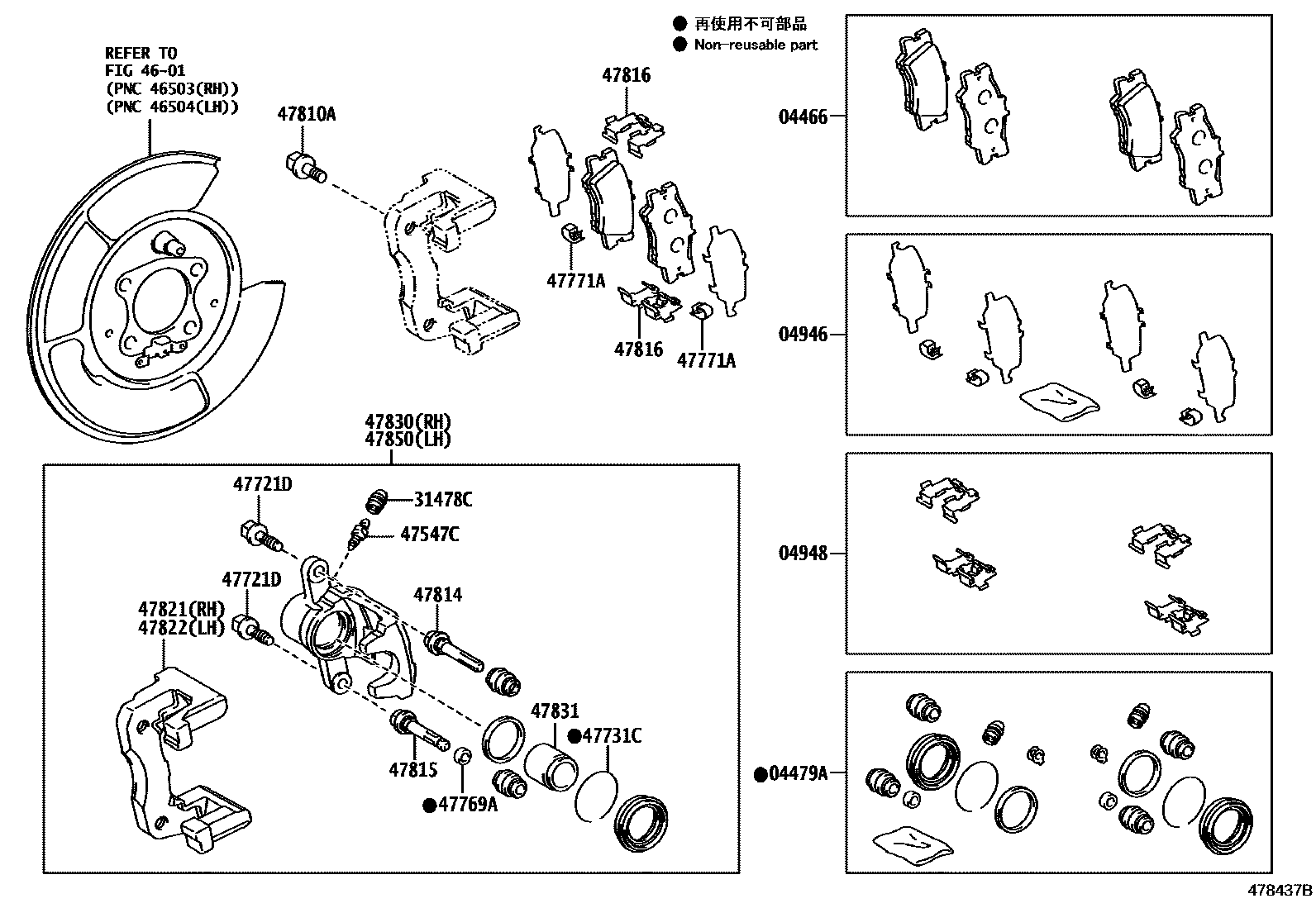

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33200iASV60,AVV60,GSV60201206-201507

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33340iASV60,AVV60,GSV60201206-201507

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33070iASV60,AVV60,GSV60201206-201507

04948FITTING KIT, DISC BRAKE, REAR

main04948-33040iASV60,AVV60,GSV60201206-201507

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iASV60,AVV60,GSV60201206-201507

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iASV60,AVV60,GSV60201206-201507

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iASV60,AVV60,GSV60201206-201507

*8-1.00PX23-15

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iASV60,AVV60,GSV60201206-201507

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240iASV60,AVV60,GSV60201206-201507

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-72010iASV60,AVV60,GSV60201206-201507

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iASV60,AVV60,GSV60201206-201507

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iASV60,AVV60,GSV60201206-201507

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iASV60,AVV60,GSV60201206-201507

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-33211iASV60,AVV60,GSV60201206-201507

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-33250iASV60,AVV60,GSV60201206-201507

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-33250iASV60,AVV60,GSV60201206-201507

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-33250iASV60,AVV60,GSV60201206-201507

47831PISTON, REAR DISC BRAKE

main47831-33210iASV60,AVV60,GSV60201206-201507

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33250iASV60,AVV60,GSV60201206-201507

20 parts on this diagram · 1 diagram in section
