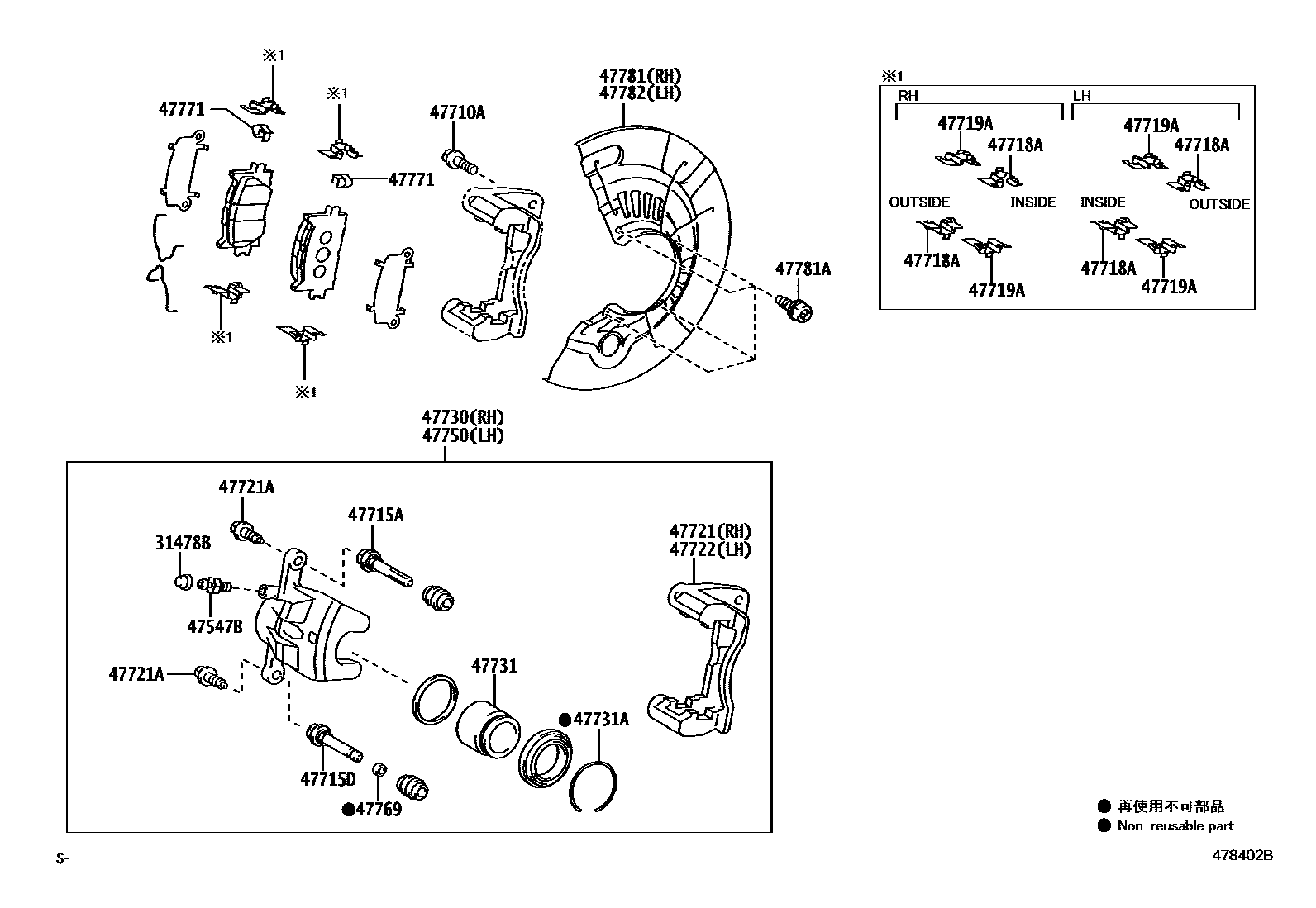

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iASV60,AVV60,GSV60¥160201206-201507

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iASV60,AVV60,GSV60¥200201206-201507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iASV60,AVV60,GSV60¥160201206-201507

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-33361iASV60,AVV60,GSV60¥620201206-201507

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iASV60,AVV60,GSV60¥490201206-201507

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-33340iASV60,AVV60,GSV60¥360201206-201507

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-33340iASV60,AVV60,GSV60¥360201206-201507

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33361iASV60,AVV60,GSV60¥8,500201206-201507

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iASV60,AVV60,GSV60¥90201206-201507

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33361iASV60,AVV60,GSV60¥8,500201206-201507

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33361iASV60,AVV60,GSV60¥39,400201206-201507

47731PISTON, FRONT DISC BRAKE

main47731-33340iASV60,AVV60,GSV60¥2,680201206-201507

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iASV60,AVV60,GSV60¥210201206-201507

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33361iASV60,AVV60,GSV60¥39,400201206-201507

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iASV60,AVV60,GSV60¥50201206-201507

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-53060iASV60,AVV60,GSV60¥200201206-201507

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06130iASV60,AVV60,GSV60¥1,650201206-201507

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iASV60,AVV60,GSV60¥90201206-201507

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06130iASV60,AVV60,GSV60¥1,650201206-201507

19 parts on this diagram · 2 diagrams in section
