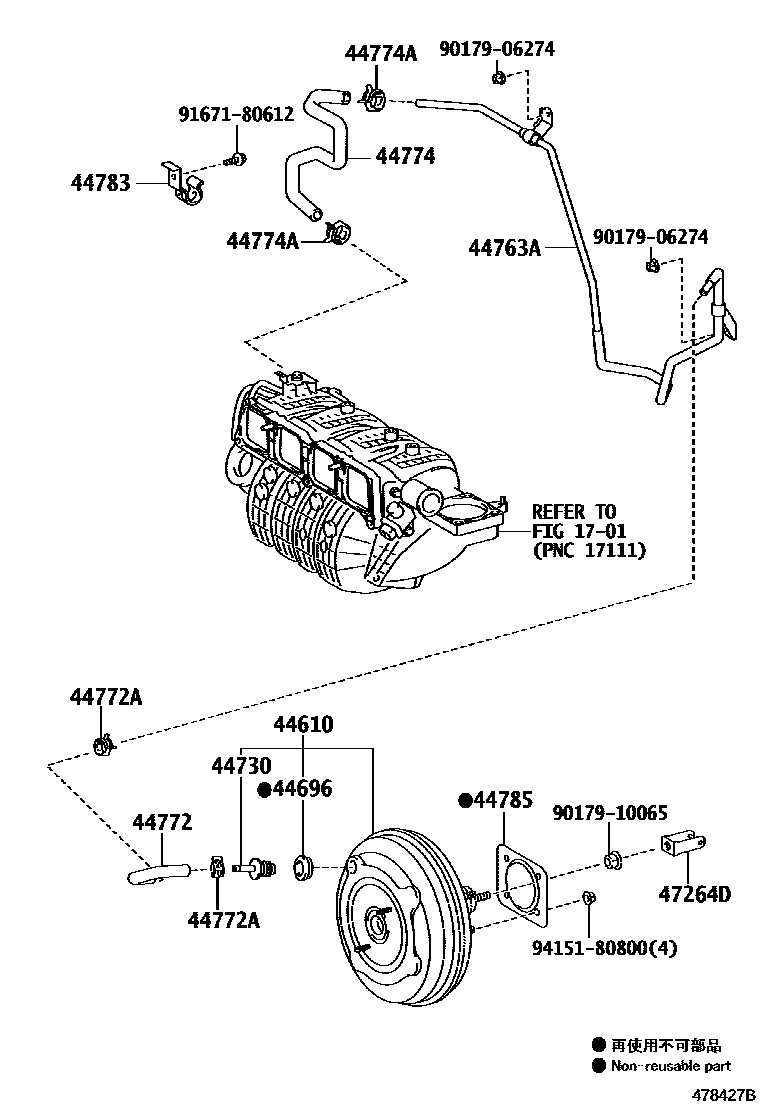

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-33A10iASV60,GSV60201206-201507

main44610-33A80iASV60,GSV60201507

main44610-33B10iASV61201507

44696GROMMET, CHECK VALVE

main90480-24015iASV6#,GSV60201206-201507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iASV60,GSV60201206-201507

44763ATUBE, HOSE TO HOSE, NO.1

main44763-33070iASV60201206-201507

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33210iASV60201206-201507

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iASV60201206-201507

44774HOSE, UNION TO CONNECTOR TUBE

main44774-33110iASV60201206-201507

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iASV60201206-201507

44783CLAMP, VACUUM HOSE

main44783-33010iGSV60201206-201507

main44783-33020iASV61201507

main44783-42030iASV60201206-201507

44785GASKET, BRAKE BOOSTER

main44785-12040iASV60,GSV60201206-201507

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iASV60,GSV60201206-201507

9017906274

main90179-06274

9017910065

main90179-10065

9167180612

main91671-80612

9415180800

main94151-80800

16 parts on this diagram · 3 diagrams in section
