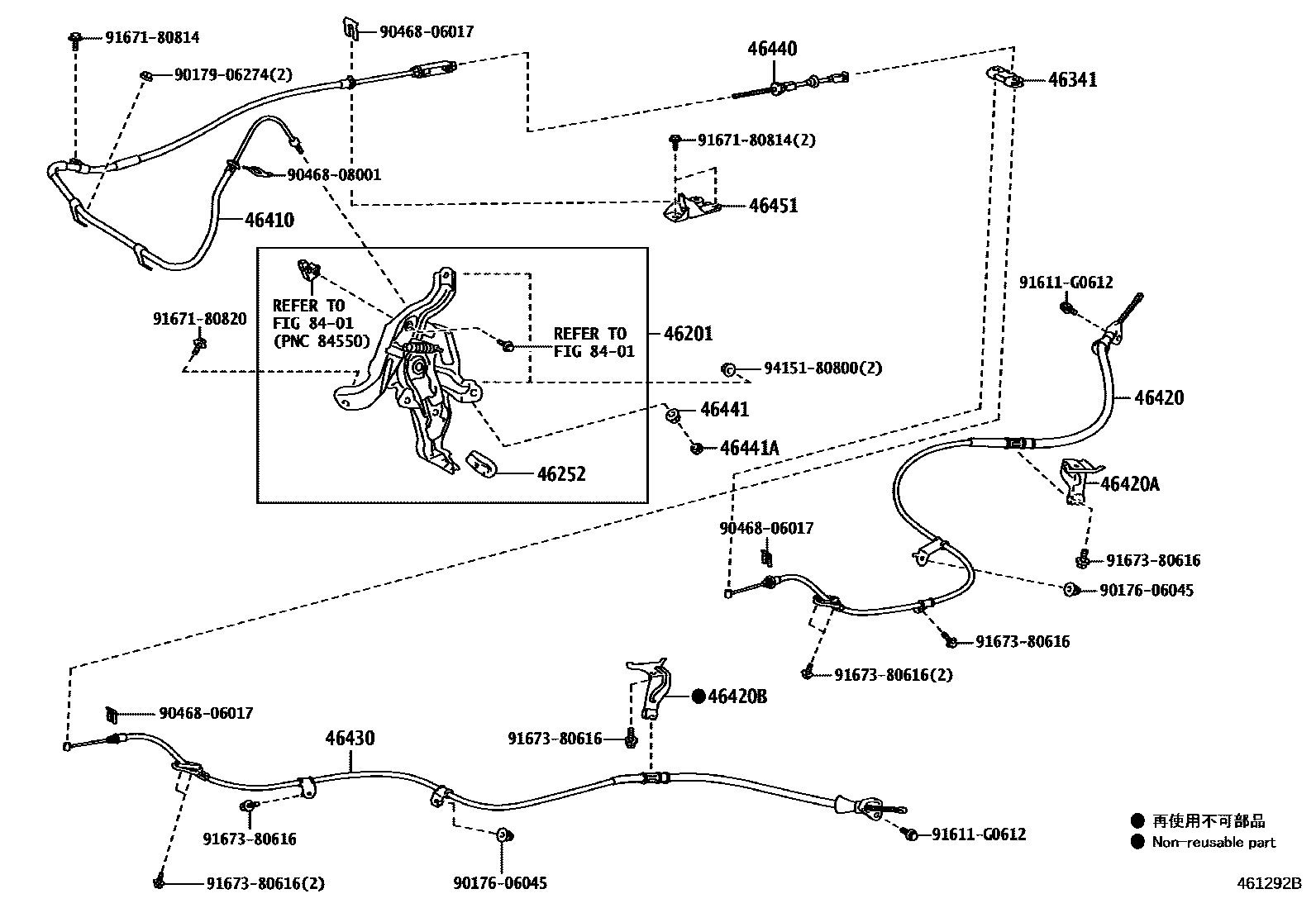

PARKING BRAKE & CABLE

0001 1 0002 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-33240iASV60,AVV60,GSV60201206-201507

46252PAD, PARKING PEDAL

main46252-33020iASV60,AVV60,GSV60201206-201507

46341EQUALIZER, PARKING BRAKE

main46341-33030iASV60,AVV60,GSV60201206-201507

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-33200iASV60,AVV60,GSV60201206-201507

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33212iASV60,AVV60,GSV60201206-201507

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-33010iASV60,AVV60,GSV60201206-201507

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-33010iASV60,AVV60,GSV60201206-201507

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33202iASV60,AVV60,GSV60201206-201507

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-33090iASV60,AVV60,GSV60201206-201507

46441NUT, WIRE ADJUSTING, NO.1

main90182-06008iASV60,AVV60,GSV60201206-201507

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iASV60,AVV60,GSV60201206-201507

46451BRACKET, CABLE SUPPORT

main46451-33100iASV60,AVV60,GSV60201206-201507

8401

9017606045

main90176-06045

9017906274

main90179-06274

9046806017

main90468-06017

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180814

main91671-80814

9167180820

main91671-80820

9167380616

main91673-80616

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
