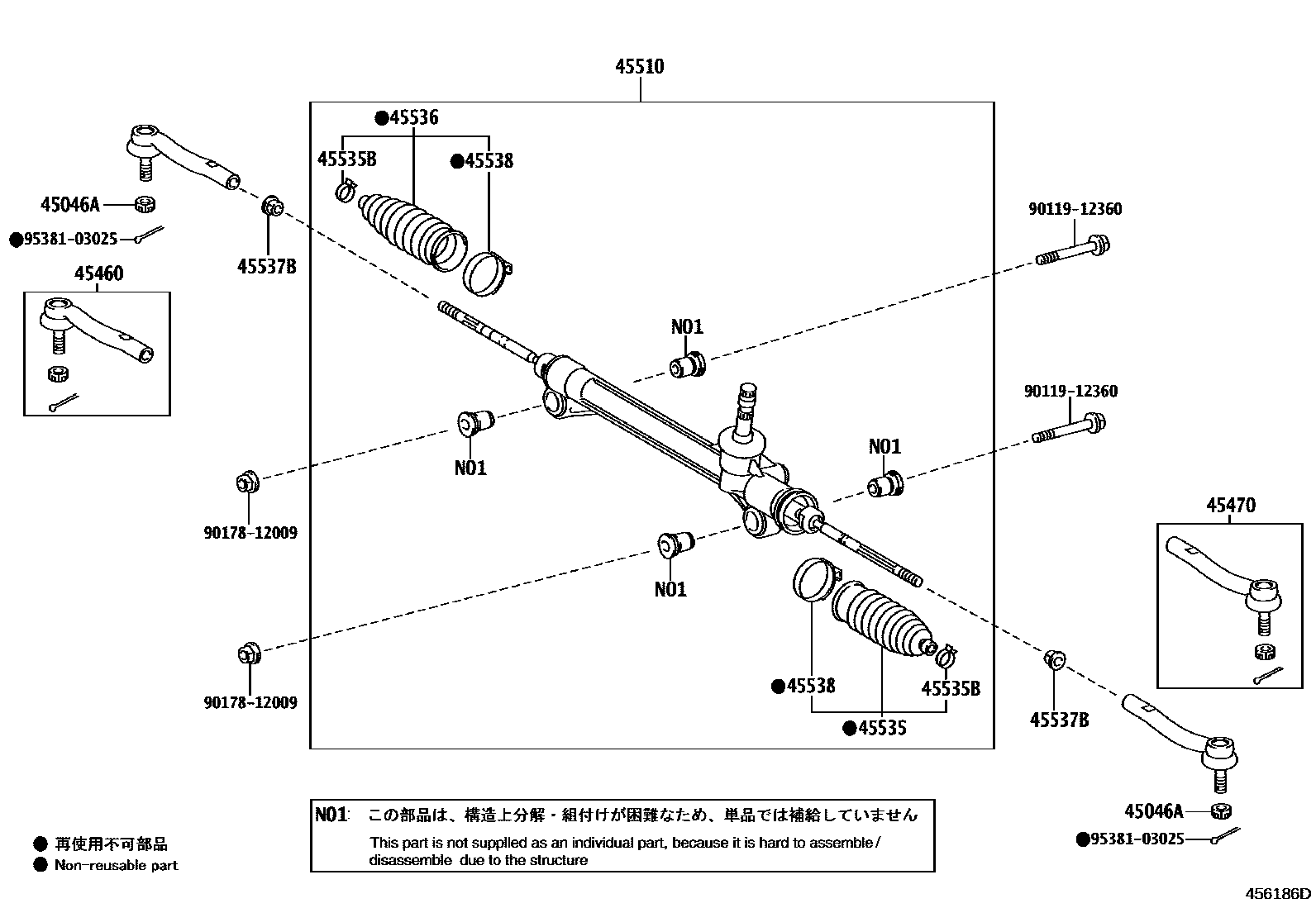

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iASV60,AVV60,GSV60201206-201507

45460ROD ASSY, TIE, RH

main45460-80005iASV60,AVV60,GSV60201206-201507

45470ROD ASSY, TIE, LH

main45470-39345iASV60,AVV60,GSV60201206-201507

45510GEAR ASSY, STEERING

main45510-33050iASV60,AVV60,GSV60201206-201507

45535BOOT, STEERING RACK, NO.1

main45535-39035iASV60,AVV60,GSV60201206-201507

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iASV60,AVV60,GSV60201206-201507

45536BOOT, STEERING RACK, NO.2

main45535-39035iASV60,AVV60,GSV60201206-201507

45537BNUT, RACK END LOCK

main90178-15003iASV60,AVV60,GSV60201206-201507

45538RETAINER, STEERING RACK BOOT

main45538-48020iASV60,AVV60,GSV60201206-201507

9011912360

main90119-12360

9017812009

main90178-12009

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
