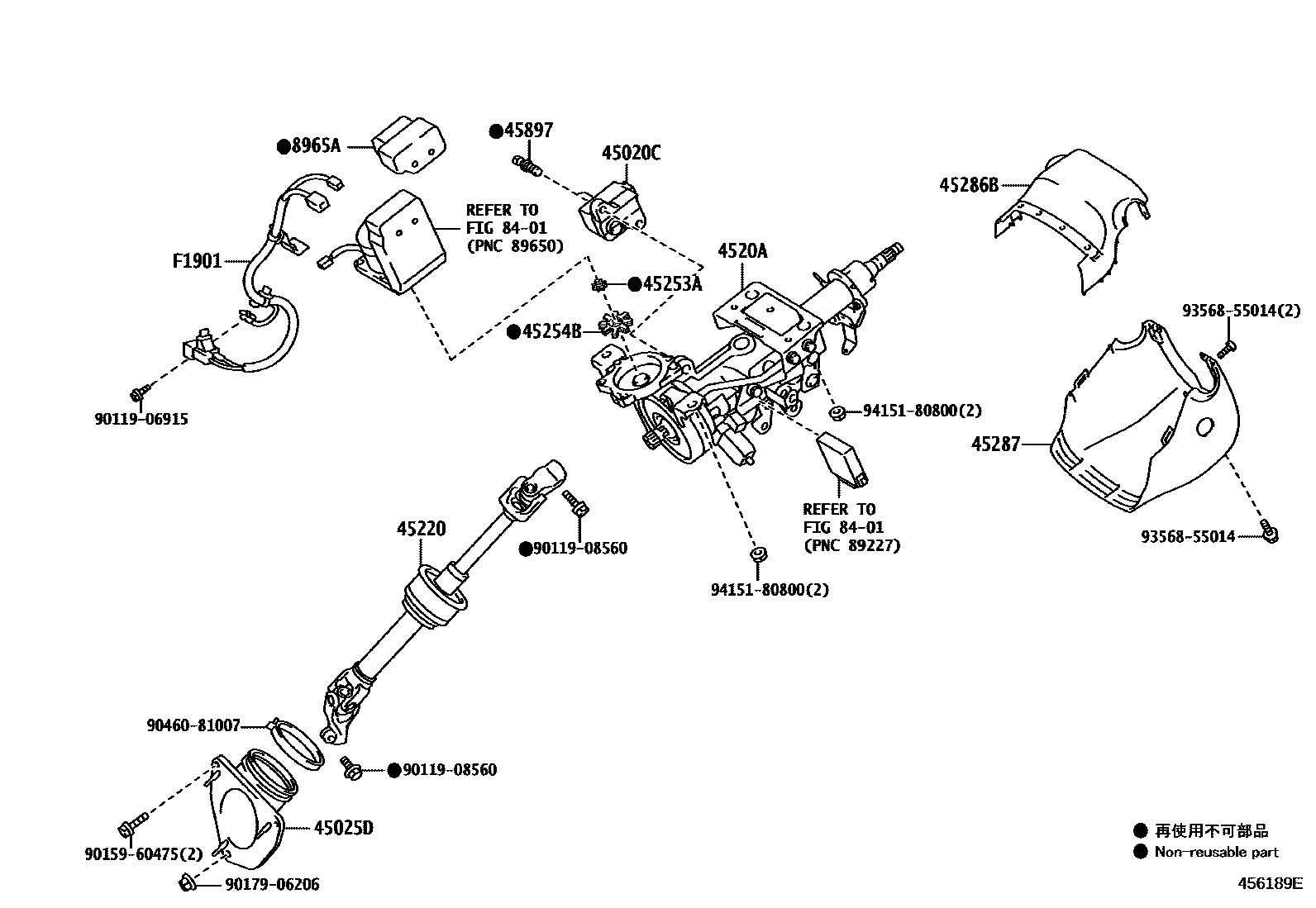

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45220SHAFT ASSY, STEERING INTERMEDIATE
45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM0#,41,5#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM0#,41,5#
45897BOLT, STEERING LOCK SET
8401
8965APROTECTOR, POWER STEERING COMPUTER
F1901WIRE SUB-ASSY, COMPUTER
9011906915
main90119-06915
9011908560
main90119-08560
9015960475
main90159-60475
9017906206
main90179-06206
9046081007
main90460-81007
9356855014
main93568-55014
9415180800
main94151-80800
19 parts on this diagram · 1 diagram in section
