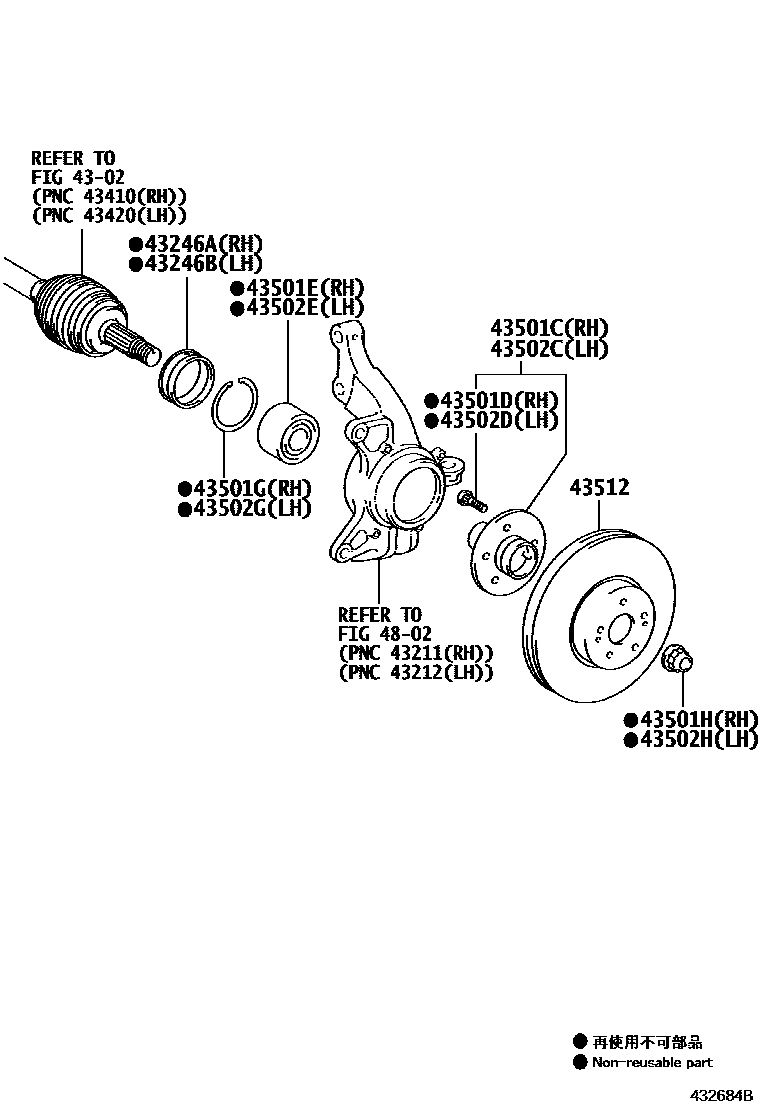

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-73010iASV6#,GSV60201206-201507

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-73010iASV60,AVV60,GSV60201206-201507

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28090iASV6#201206-201507

main43502-28100iGSV60201206-201507

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iASV60,AVV60,GSV60201206-201507

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45003iASV60,AVV60,GSV60201206-201507

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iASV60,AVV60,GSV60201206-201507

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASV6#,GSV60201206-201507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28090iASV60201206-201507

main43502-28100iAVV60,GSV60201206-201507

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iASV60,AVV60,GSV60201206-201507

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45003iASV6#,GSV60201206-201507

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iASV60,AVV60,GSV60201206-201507

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iASV60,AVV60,GSV60201206-201507

43512DISC, FRONT

main43512-33140iASV60,AVV60,GSV60201206-201507

4802

15 parts on this diagram · 1 diagram in section
