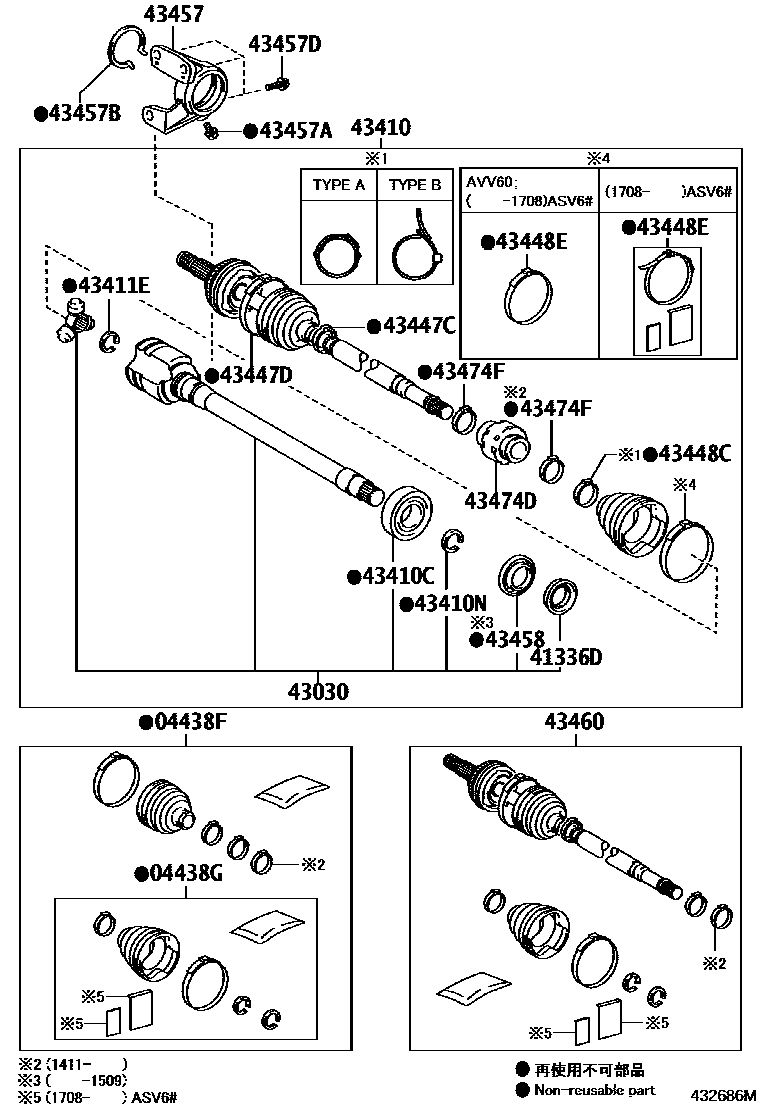

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06540iGSV60201308-201507

main04427-33100iAVV60¥10,800201206-201411

sub04427-33101¥9,000

main04427-33101iAVV60¥9,000201411-201507

sub04427-33103¥8,900

main04427-44030iASV60¥10,800201206-201411

sub04427-44031¥10,800

main04427-75011iASV60¥9,000201411-201708

sub04427-75013¥9,000

main04427-75012iASV6#¥9,000201708

main04428-0W070iGSV60201206-201307

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08050iGSV60¥5,500201308-201507

main04437-33070iAVV60¥5,500201206-201507

main04437-44040iASV60¥5,500201206-201708

main04437-44041iASV6#¥5,500201708

main04438-08130iGSV60¥5,500201206-201307

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iGSV60¥890201206-201507

main41336-12020iASV6#¥330201206-201507

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06450iGSV60201712

main43030-0W040iGSV60¥29,000201206-201712

main43030-33041iASV6#¥33,600201206-201708

main43030-33080iASV6#201708

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06780iGSV60201206-201207

sub43410-06A50¥71,100

main43410-06A50iGSV60¥71,100201208-201711

sub43410-06B80¥71,100

main43410-06B80iGSV60¥71,100201712

main43410-33310iASV6#¥71,100201206-201707

sub43410-33311¥71,100

main43410-33311iASV6#¥71,100201708

main43410-33340iAVV60¥71,100201206-201507

sub43410-33341¥71,100

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iGSV60¥2,750201206-201507

main90363-41003iASV60,AVV60¥2,750201206-201507

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iGSV60¥140201206-201507

main90520-38015iASV60,AVV60¥100201206-201507

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGSV60¥60201206-201507

main43425-28010iASV6#¥40201206-201507

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGSV60¥190201206-201507

main42345-42100iASV6#¥220201206-201507

main42345-42120iAVV60¥220201206-201507

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06250iGSV60¥800201206-201507

main42345-42090iASV6#¥340201206-201507

main42345-42110iAVV60¥350201206-201507

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08070iGSV60¥360201206-201507

main42345-33120iASV6#¥260201708

main42345-42010iASV60,AVV60¥200201206-201708

TYPE A:REFER ILLUST.

main90949-01559iASV60,AVV60¥320201206-201708

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGSV60¥430201206-201507

main42345-12160iASV60,AVV60¥300201206-201708

main42345-33140iASV6#¥1,480201708

43457BRACKET, DRIVE SHAFT BEARING

main43457-33030iGSV60¥4,270201206-201507

main43457-33040iAVV60¥4,270201206-201507

main43457-48010iASV60¥4,270201206-201507

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iASV60,AVV60,GSV60¥200201206-201507

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iASV60,AVV60,GSV60¥160201206-201507

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iASV60,AVV60,GSV60¥100201206-201507

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iGSV60¥650201206-201607

main43458-12010iASV6#¥910201206-201509

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09M20iGSV60201206-201207

main43460-09W60iGSV60201208-201507

main43460-39285iASV60201206-201411

sub43460-39286

main43460-39286iASV60201411-201708

main43460-39287iASV6#201708

main43470-39575iAVV60¥50,300201206-201411

sub43470-39576¥41,800

main43470-39576iAVV60¥41,800201411-201507

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06300iGSV60201208-201507

sub43474-06540

main43474-0W030iGSV60¥3,940201206-201208

main43474-48020iASV60¥3,940201206-201410

sub43474-48080¥2,480

main43474-48080iASV6#¥2,480201411-201507

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iGSV60¥200201206-201208

main42345-06790iGSV60¥190201208-201507

main42345-12090iASV6#¥140201708

main42345-14010iASV6#¥700201206-201708

20 parts on this diagram · 4 diagrams in section
