DISC WHEEL & WHEEL CAP

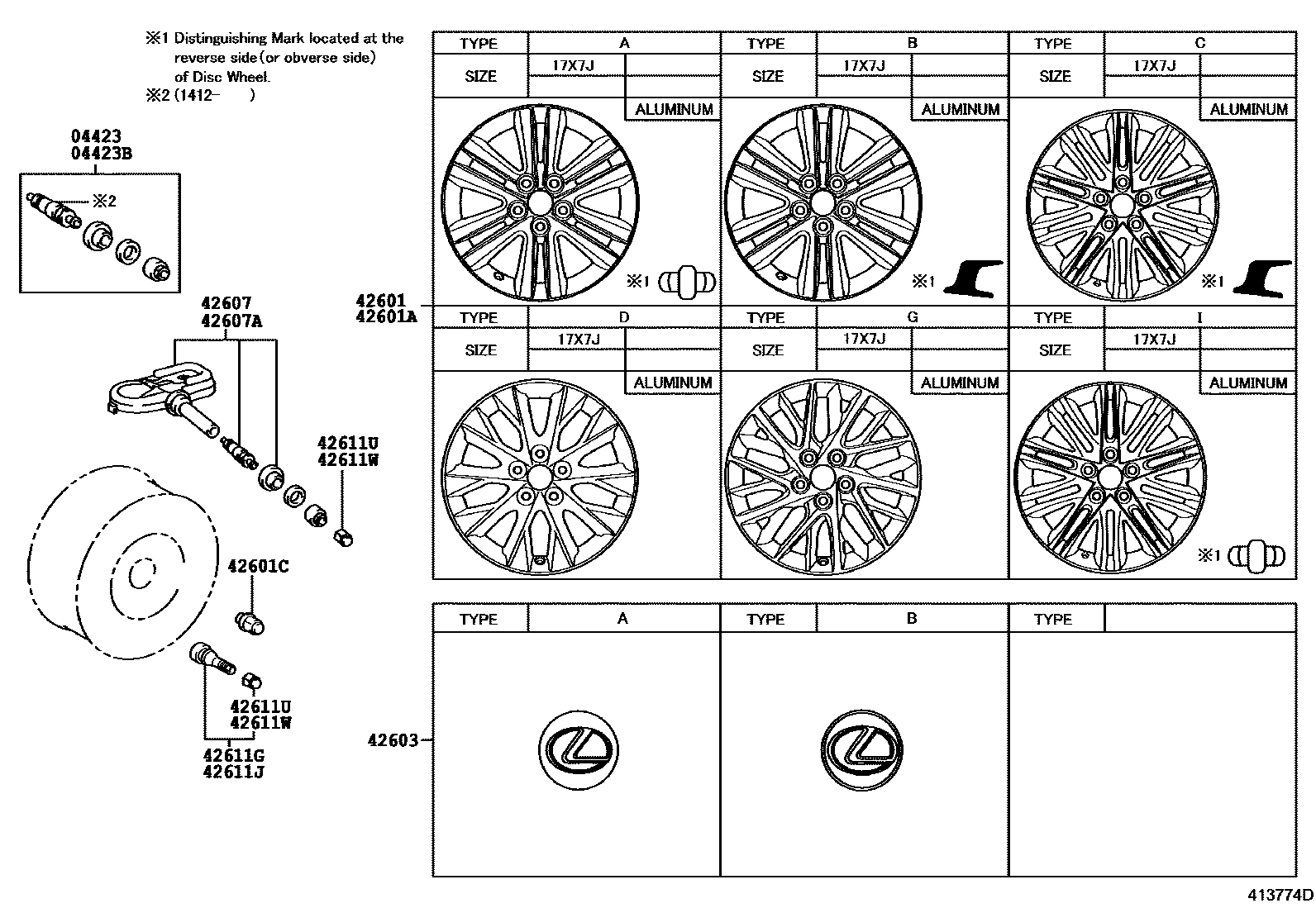

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i201206-201412
sub04423-33060
main04423-33030i201411-201412
THE CRAFTED LINE
sub04423-33060
main04423-33060i201412-201507
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i201206-201412
sub04423-33060
main04423-33060i201412-201507
42601WHEEL, DISC
main42611-33870i201708
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33870i201708
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33880i201307-201402
17X7J, #,CURACAO SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,GUATEMALA SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,PERU SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,CHILE SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201206-201402
17X7J, #,BRAZIL SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33881i201403-201507
17X7J, #,PERU SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,BRAZIL SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,CHILE SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,GUATEMALA SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,CURACAO SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33890i201206-201402
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33891i201403-201507
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33892
main42611-33A00i201307-201407
17X7J, #,CURACAO SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201206-201407
17X7J, #,BRAZIL SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,CHILE SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,PERU SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,GUATEMALA SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A01i201408-201507
17X7J, #,BRAZIL SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,CHILE SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,PERU SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,GUATEMALA SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,CURACAO SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A10i201206-201407
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A11
main42611-33A11i201408-201507
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A12
main42611-33A30i201206-201402
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A31
main42611-33A31i201403-201507
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A32
main42611-33A90i201411-201507
17X7J, #,THE CRAFTED LINE,TYPE C:REFER ILLUST.
sub42611-33A91
main42611-33B00i201507-201604
17X7J, #,CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,CHILE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,PERU SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFERILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,GUATEMALA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,DOMINICAN REPUBLIC SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,CURACAO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B01i201605-201608
17X7J, #,CHILE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605-201608
17X7J, #,DOMINICAN REPUBLIC SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605-201608
17X7J, #,PERU SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFERILLUST.
main42611-33B01i201605
17X7J, #,CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,CURACAO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,GUATEMALA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B10i201507-201604
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B11
main42611-33B10i201507-201604
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B11
main42611-33B11i201605
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B11i201605
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B40i201507-201605
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,BRAZIL SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,CHILE SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,PERU SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,GUATEMALA SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,CURACAO SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B41i201606-201608
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606-201608
17X7J, #,PERU SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606-201608
17X7J, #,CHILE SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,BRAZIL SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,GUATEMALA SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,CURACAO SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B50i201507-201605
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B51
main42611-33B51i201606
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B52
main42611-33D40i201608
17X7J, #,PERU SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201610
17X7J, #,CURACAO SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,GUATEMALA SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,CHILE SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,BRAZIL SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D50i201610
17X7J, #,TYPE I:REFER ILLUST.
sub42611-33B52
main42611-33D50i201608-201610
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC,TYPE I:REFER ILLUST.
sub42611-33B52
main4261A-33090i201206-201402
17X7J, #,AZERBAYCAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,AZERBAYCAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33091i201403-201507
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,AZERBAYCAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,AZERBAYCAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
42601AWHEEL, DISC (FOR SPARE)
main42611-33870i201708
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33870i201708
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33880i201307-201402
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,PERU SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,CHILE SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,CURACAO SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201307-201402
17X7J, #,GUATEMALA SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201206-201402
17X7J, #,BRAZIL SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33881i201403-201507
17X7J, #,PERU SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,BRAZIL SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,CHILE SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,GUATEMALA SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,CURACAO SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33890i201206-201402
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33891i201403-201507
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33892
main42611-33A00i201307-201407
17X7J, #,CURACAO SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,GUATEMALA SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,PERU SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,CHILE SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201307-201407
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201206-201407
17X7J, #,BRAZIL SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A01i201408-201507
17X7J, #,BRAZIL SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,GUATEMALA SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,CURACAO SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,CHILE SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,PERU SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A10i201206-201407
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A11
main42611-33A11i201408-201507
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A12
main42611-33A30i201206-201402
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A31
main42611-33A31i201403-201507
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A32
main42611-33A90i201411-201507
17X7J, #,THE CRAFTED LINE,TYPE C:REFER ILLUST.
sub42611-33A91
main42611-33B00i201507-201604
17X7J, #,CURACAO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,CHILE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,PERU SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFERILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,GUATEMALA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,DOMINICAN REPUBLIC SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B01i201605
17X7J, #,GUATEMALA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,CURACAO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605-201608
17X7J, #,DOMINICAN REPUBLIC SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605-201608
17X7J, #,CHILE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605-201608
17X7J, #,PERU SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFERILLUST.
main42611-33B10i201507-201604
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B11
main42611-33B10i201507-201604
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B11
main42611-33B11i201605
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B11i201605
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B40i201507-201605
17X7J, #,CHILE SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,GUATEMALA SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,CURACAO SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,BRAZIL SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,PERU SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B41i201606-201608
17X7J, #,CHILE SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606-201608
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606-201608
17X7J, #,PERU SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,BRAZIL SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,GUATEMALA SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,CURACAO SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B50i201507-201605
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B51
main42611-33B51i201606
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B52
main42611-33D40i201608
17X7J, #,BRAZIL SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,CHILE SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,PERU SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,GUATEMALA SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,DOMINICAN REPUBLIC SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,CENTRAL & SOUTH AMERICA SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201610
17X7J, #,CURACAO SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D50i201610
17X7J, #,TYPE I:REFER ILLUST.
sub42611-33B52
main42611-33D50i201608-201610
17X7J, #,CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC,TYPE I:REFER ILLUST.
sub42611-33B52
main4261A-33090i201206-201402
17X7J, #,AZERBAYCAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,AZERBAYCAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33091i201403-201507
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,AZERBAYCAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,AZERBAYCAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
42601CNUT, HUB (FOR AXLE)
main90942-01033i201206-201507
42603ORNAMENT SUB-ASSY, WHEEL HUB
main42603-30550i201206-201507
*CHR,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM,TYPE B:REFER ILLUST.
sub42603-30551
main42603-30550i201708
*CHR,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE B:REFER ILLUST.
sub42603-30551
main42603-30550i201507
*CHR,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE B:REFER ILLUST.
sub42603-30551
main42603-50340i201206-201409
*ALU,TYPE A:REFER ILLUST.
main42603-50370i201409-201507
*ALU,TYPE A:REFER ILLUST.
main42603-53110i201408-201507
*ALU,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-30060i201708
CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201307-201608
CHILE SPEC
main42607-30060i201307-201608
PERU SPEC
main42607-30060i201307-201507
GUATEMALA SPEC
main42607-30060i201307-201608
DOMINICAN REPUBLIC SPEC
main42607-30060i201708
CENTRAL & SOUTH AMERICA SPEC
main42607-30060i201507-201608
CHILE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201507-201608
PERU SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201507-201608
DOMINICAN REPUBLIC SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201507
GUATEMALA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30070i201206-201404
sub42607-30071
main42607-30071i201405-201507
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-30060i201307-201608
DOMINICAN REPUBLIC SPEC
main42607-30060i201307-201608
CHILE SPEC
main42607-30060i201307-201608
PERU SPEC
main42607-30060i201307-201507
GUATEMALA SPEC
main42607-30060i201507-201608
CHILE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201507-201608
PERU SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201507-201608
DOMINICAN REPUBLIC SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201507
GUATEMALA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201708
CENTRAL & SOUTH AMERICA SPEC
main42607-30060i201708
CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30070i201206-201404
sub42607-30071
main42607-30071i201405-201507
42611GVALVE (FOR TUBELESS TIRE)
main90942-05028i201206-201507
AZERBAYCAN SPEC&G PACKAGE
main90942-05028i201206-201507
AZERBAYCAN SPEC&H PACKAGE
main90942-05028i201206-201507
BRAZIL SPEC
main90942-05028i201206-201507
AZERBAYCAN SPEC
main90942-05028i201307-201708
CENTRAL & SOUTH AMERICA SPEC
main90942-05028i201507-201708
CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC
main90942-05028i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201507
BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201708
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE,ALUMI
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05028i201507-201708
CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201206-201507
AZERBAYCAN SPEC
main90942-05028i201206-201507
AZERBAYCAN SPEC&G PACKAGE
main90942-05028i201206-201507
AZERBAYCAN SPEC&H PACKAGE
main90942-05028i201206-201507
BRAZIL SPEC
main90942-05028i201307-201708
CENTRAL & SOUTH AMERICA SPEC
main90942-05028i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC
main90942-05028i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201507
BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201708
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE,ALUMI
42611UCAP, TIRE VALVE
main90942-05029i201307-201708
CENTRAL & SOUTH AMERICA SPEC
main90942-05029i201507-201708
CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201206-201507
AZERBAYCAN SPEC
main90942-05029i201206-201507
AZERBAYCAN SPEC&G PACKAGE
main90942-05029i201206-201507
AZERBAYCAN SPEC&H PACKAGE
main90942-05029i201206-201507
BRAZIL SPEC
main90942-05029i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC
main90942-05029i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201507
BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201708
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE,ALUMI
main90942-05037i201206-201207
main90942-05042i201207-201507
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05029i201507
BRAZIL SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201206-201507
BRAZIL SPEC
main90942-05029i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201507
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC
main90942-05029i201507-201708
CENTRAL & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201307-201708
CENTRAL & SOUTH AMERICA SPEC
main90942-05029i201206-201507
AZERBAYCAN SPEC&H PACKAGE
main90942-05029i201206-201507
AZERBAYCAN SPEC&G PACKAGE
main90942-05029i201206-201507
AZERBAYCAN SPEC
main90942-05029i201708
CAUCASAI(AZERBAYCAN,ARMENIA,GEORGIA)SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE,ALUMI
main90942-05037i201206-201207
main90942-05042i201207-201507

12 parts on this diagram · 1 diagram in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
