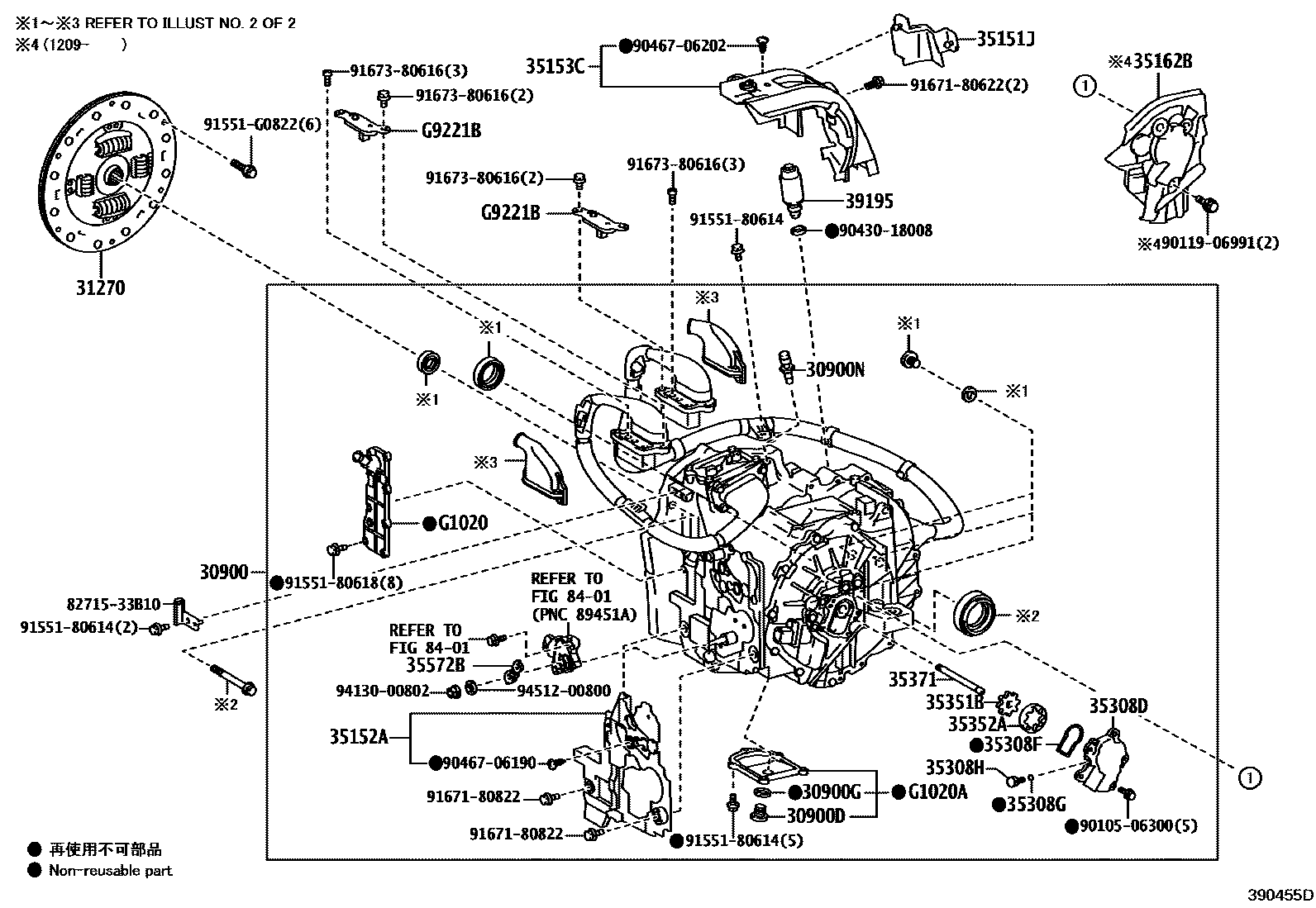

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
31270DAMPER ASSY, TRANSMISSION INPUT
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3
35162BPROTECTOR, TRANSAXLE CASE
KAZAKHSTAN SPEC
35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35351BROTOR, TRANSAXLE OIL PUMP DRIVE
35352AROTOR, TRANSMISSION OIL PUMP DRIVEN
35371SHAFT, OIL PUMP DRIVE
35572BLEVER, TRANSMISSION, OUTER
39195DAMPER, HV TRANSAXLE MASS
8401
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G9221BCOVER, INVERTER, UPRPER
8271533B10BRACKET,WIRING HARNESS CLAMP
9010506300
9011906991
9043018008
9046706190
9046706202
9155180614
9155180618
91551G0822
9167180622
9167180822
9167380616
9413000802
9451200800
36 parts on this diagram · 2 diagrams in section
