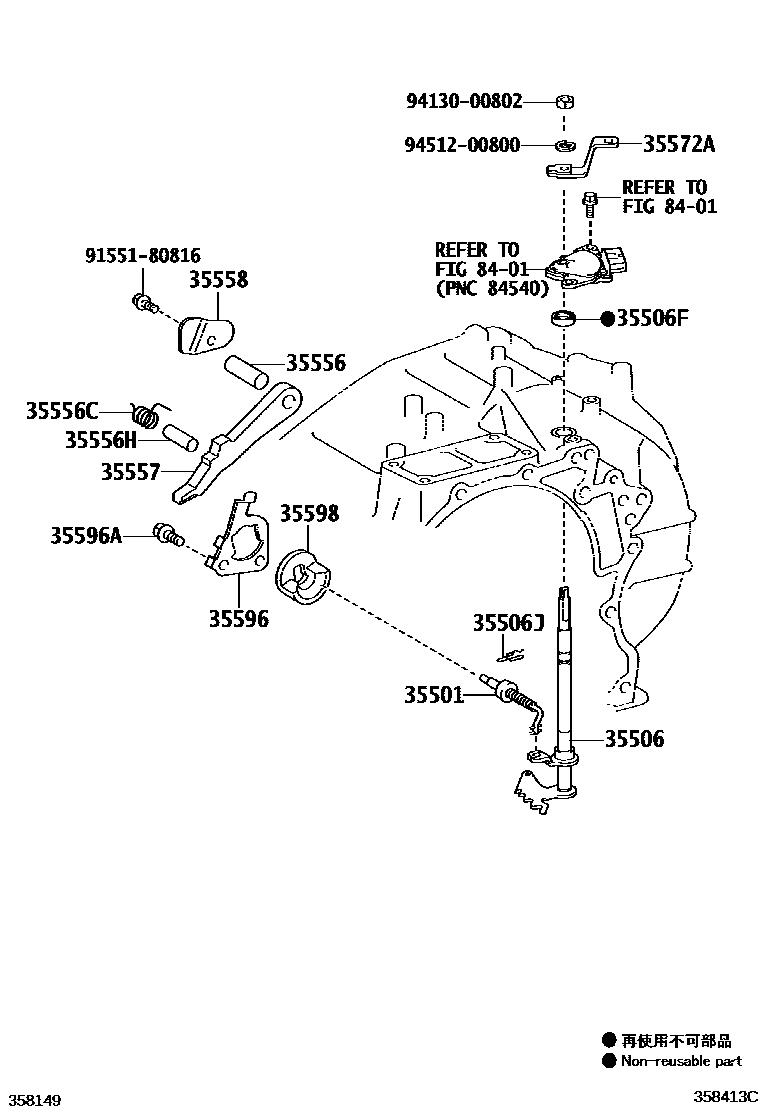

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U760E,U761E 0002 1U660E

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020iASV60,GSV60201206-201507

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iASV61201507

main35506-33020iGSV60201206-201507

main35506-73011iASV60201206-201507

sub35506-33011

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iASV60,GSV60201206-201507

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002iASV60,GSV60201206-201507

35556SHAFT, PARKING LOCK PAWL

main35556-33010iASV60,GSV60201206-201507

main35556-33020iASV61201507

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21007iGSV60201206-201507

main90508-21008iASV60201206-201507

35556HSHAFT, PARKING LOCK PAWL

main35556-33030iASV61201507

main35556-63010iASV60,GSV60201206-201507

35557PAWL, PARKING LOCK

main35557-33021iGSV60201206-201507

main35557-73010iASV6#201206-201507

35558CLAMP, PAWL SHAFT

main35558-33010iASV60,GSV60201206-201507

main35558-33020iASV61201507

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iASV60,GSV60201206-201507

35596PLATE, PAWL STOPPER

main35596-33010iGSV60201206-201507

main35596-73010iASV6#201206-201507

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816iASV60,GSV60201206-201507

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010iASV60,GSV60201206-201507

8401

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
