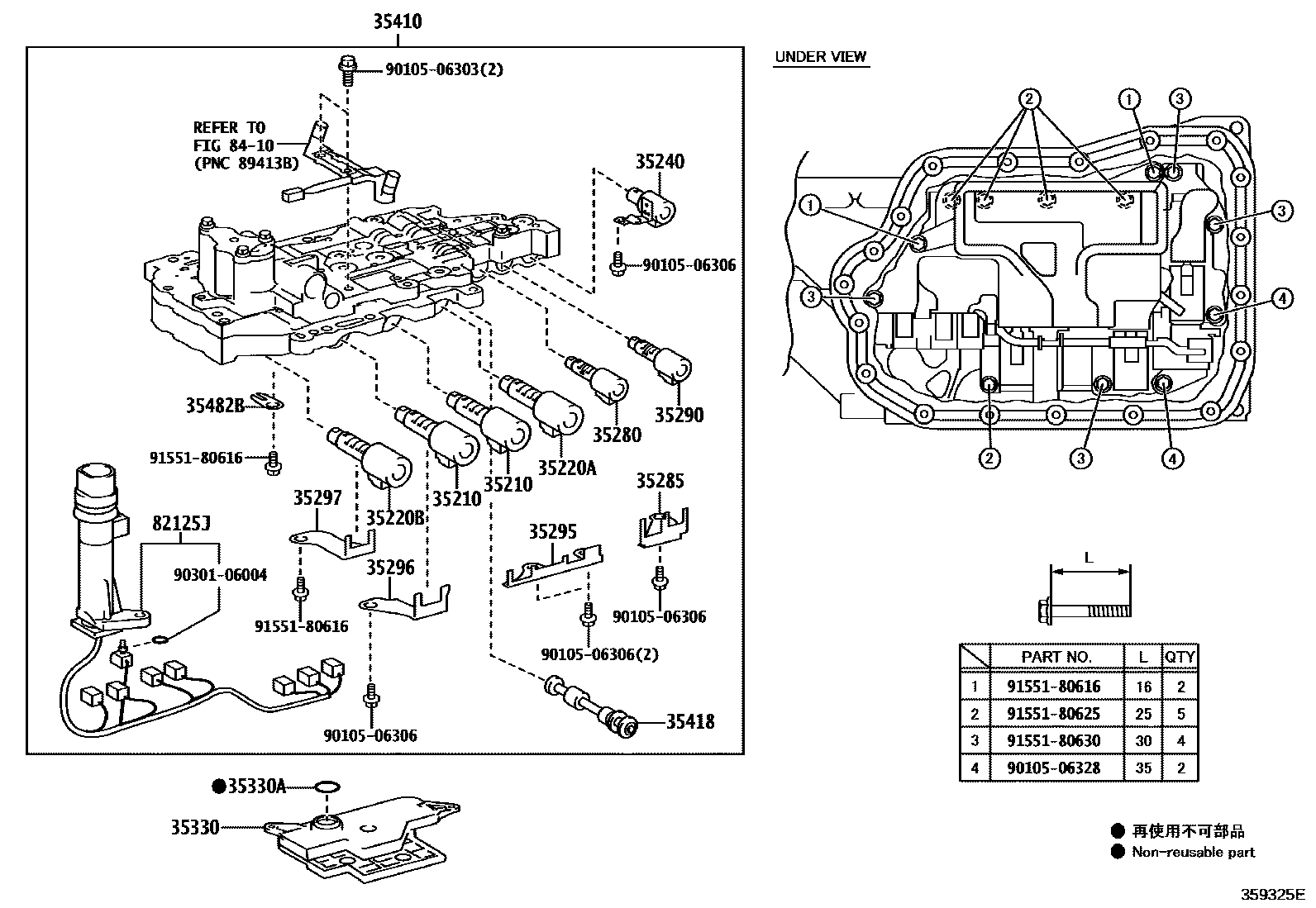

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E,U761E 0002 1U660E 0003 1U660E,U760E,U761E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iASV60¥7,000201206-201507

main35210-48030iASV61¥7,700201507

main35210-73010iASV60¥10,100201206-201409

sub35210-33030¥7,000

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iGSV60¥7,000201206-201507

35220AVALVE, SOLENOID(SL2)

main35220-33050iASV61201507-201703

main35220-33100iASV61201703

main35220-48020iASV60¥7,000201410-201507

main35220-73010iASV60¥10,100201206-201409

sub35220-48020¥7,000

35220BVALVE, SOLENOID(SL4)

main35220-33050iASV61201507

main35220-48020iASV60¥7,000201410-201507

main35220-73010iASV60¥10,100201206-201409

sub35220-48020¥7,000

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iASV60,GSV60¥11,100201206-201507

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASV60¥7,700201206-201507

main35280-33040iASV61201507

main35280-52040iGSV60¥7,700201206-201507

35285PLATE, SOLENOID LOCK

main35285-33070iASV61¥360201507

main35285-73010iASV60201206-201507

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASV60,GSV60¥7,400201206-201507

main35290-48020iASV61¥7,700201507

35295PLATE, SOLENOID LOCK, NO.2

main35295-33050iASV61¥510201507

main35295-73010iASV60201206-201507

35296PLATE, SOLENOID LOCK, NO.3

main35296-33050iASV61¥340201507

main35296-73010iASV60201206-201507

35297PLATE, SOLENOID LOCK, NO.4

main35297-33030iASV61201507

main35297-73010iASV60201206-201507

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGSV60¥4,730201206-201308

sub35330-48020¥3,290

main35330-48020iGSV60¥3,290201308-201507

main35330-73010iASV60¥3,290201206-201507

main35330-73021iASV61¥3,290201507

35330ARING, O (FOR OIL STRAINER)

main90301-27015iASV60,GSV60¥190201206-201507

35410BODY ASSY, TRANSMISSION VALVE

main35410-33240iGSV60¥80,100201206-201507

main35410-33250iASV60¥96,200201206-201507

sub35410-33260¥80,100

main35410-33270iASV61201507

35418VALVE, MANUAL

main35418-33030iASV61201507

main35418-73010iASV60,GSV60¥2,260201206-201507

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iASV6#¥170201206-201507

82125JWIRE, TRANSMISSION

main82125-33150iGSV60¥2,830201206-201807

sub82125-33151¥2,360

main82125-73010iASV60¥4,250201206-201807

sub82125-73011¥3,540

8410

9010506303

main90105-06303¥90

9010506306

main90105-06306¥80

9010506328

main90105-06328¥70

9030106004

main90301-06004¥120

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180630

main91551-80630¥60

25 parts on this diagram · 3 diagrams in section
