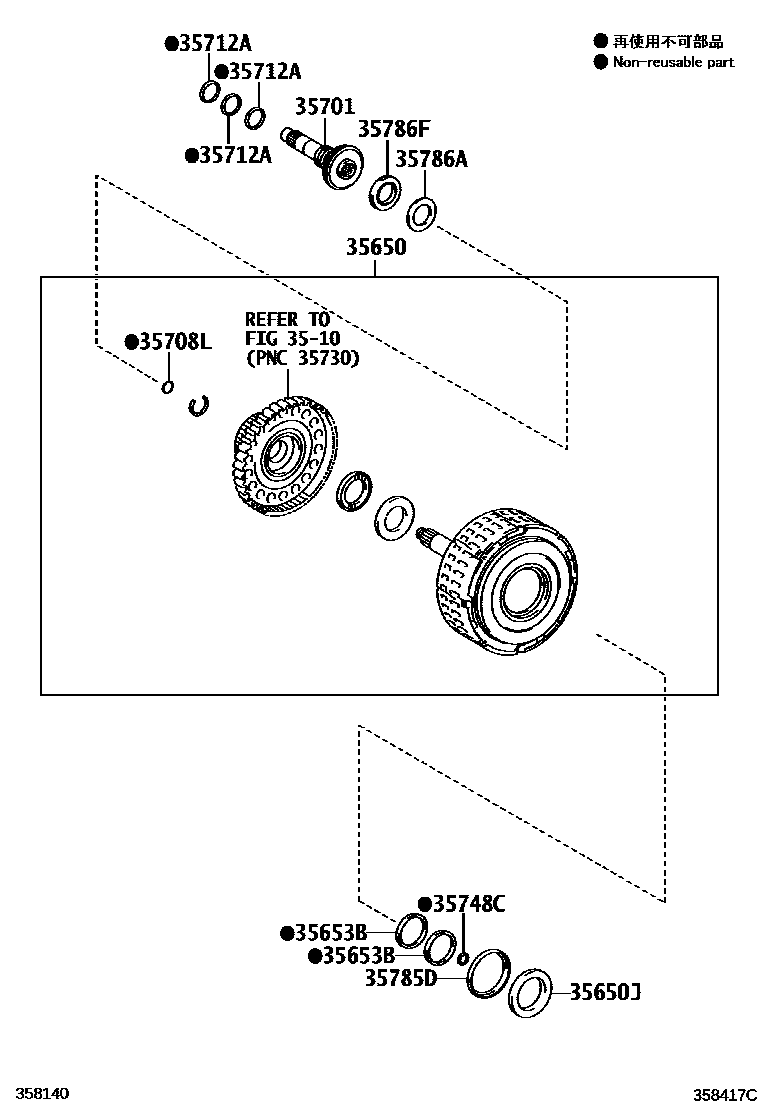

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1U760E,U761E 0002 1U660E

3510

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-33070iGSV60201206-201507

main35650-33110iASV61201507

main35650-73020iASV60201206-201507

sub35650-33090

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48006iASV60,GSV60201206-201310

sub90374-48009

main90374-48009iASV60,GSV60201310-201507

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010iASV60,GSV60201206-201507

35701SHAFT SUB-ASSY, INPUT

main35711-33060iGSV60201206-201507

main35711-33080iASV61201507

main35711-33090iASV60201206-201507

sub35711-33080

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11032iASV60,GSV60201206-201507

35712ARING, INPUT SHAFT OIL SEAL

main35712-33010iASV61201206-201707

sub35712-33020

main35712-33020iASV6#,GSV60201707

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASV60,GSV60201206-201507

35785DRACE, THRUST BEARING, NO.4

main35785-33020iASV60,GSV60201206-201310

sub35785-48020

main35785-48020iASV6#,GSV60201310-201507

35786ARACE, THRUST BEARING, NO.1

main35786-33010iASV6#,GSV60201206-201507

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29005iGSV60201206-201507

main90374-29007iASV6#201401-201507

11 parts on this diagram · 2 diagrams in section
