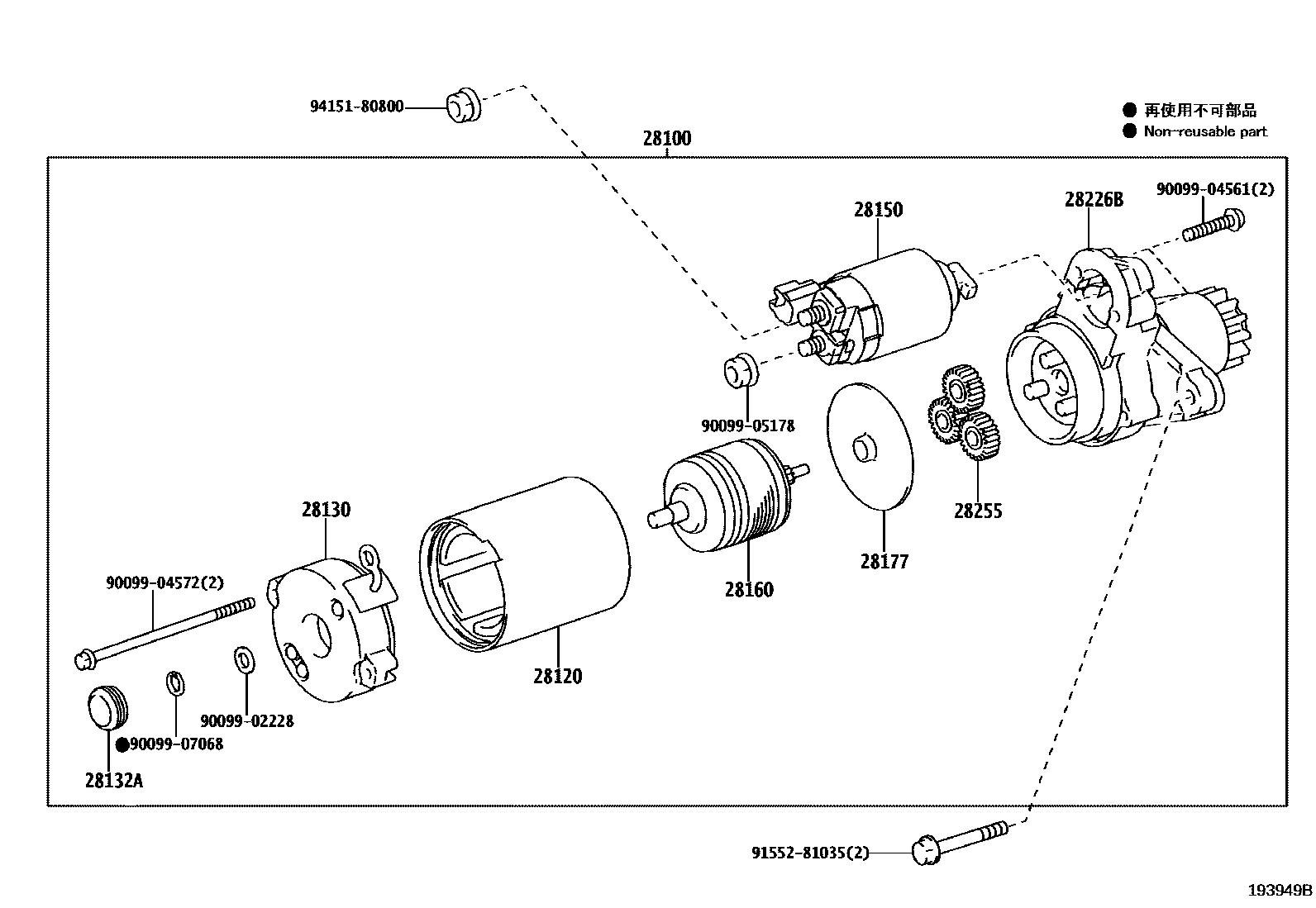

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-20021i2ARFE,2GRFE..ASV60,GSV60201206-201407

12V 1.7KW

sub28100-20022

main28100-20022i2ARFE,2GRFE..ASV60,GSV60201408-201507

12V 1.7KW

main28100-36160i6ARFSE..ASV61201507

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28060i2ARFE,2GRFE..ASV60,GSV60201206-201507

main28120-36110i6ARFSE..ASV61201507

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2ARFE,2GRFE..ASV60,GSV60201206-201507

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2ARFE,2GRFE..ASV60,GSV60201206-201507

28150SWITCH ASSY, MAGNET STARTER

main28226-28051i2ARFE,2GRFE..ASV60,GSV60201206-201507

main28226-31100i6ARFSE..ASV61201507

28160ARMATURE ASSY, STARTER

main28160-28040i2ARFE,2GRFE..ASV60,GSV60201206-201507

main28160-36110i6ARFSE..ASV61201701

main28160-37100i6ARFSE..ASV61201507-201701

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ARFE,2GRFE..ASV60,GSV60201206-201507

28226BSTARTER KIT, REPAIR SERVICE

main28226-28041i2ARFE,2GRFE..ASV60,GSV60201206-201507

main28226-36160i6ARFSE..ASV61201507

28255GEAR, PLANET

main28255-20020i2ARFE,2GRFE..ASV60,GSV60201206-201507

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9155281035

main91552-81035

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
