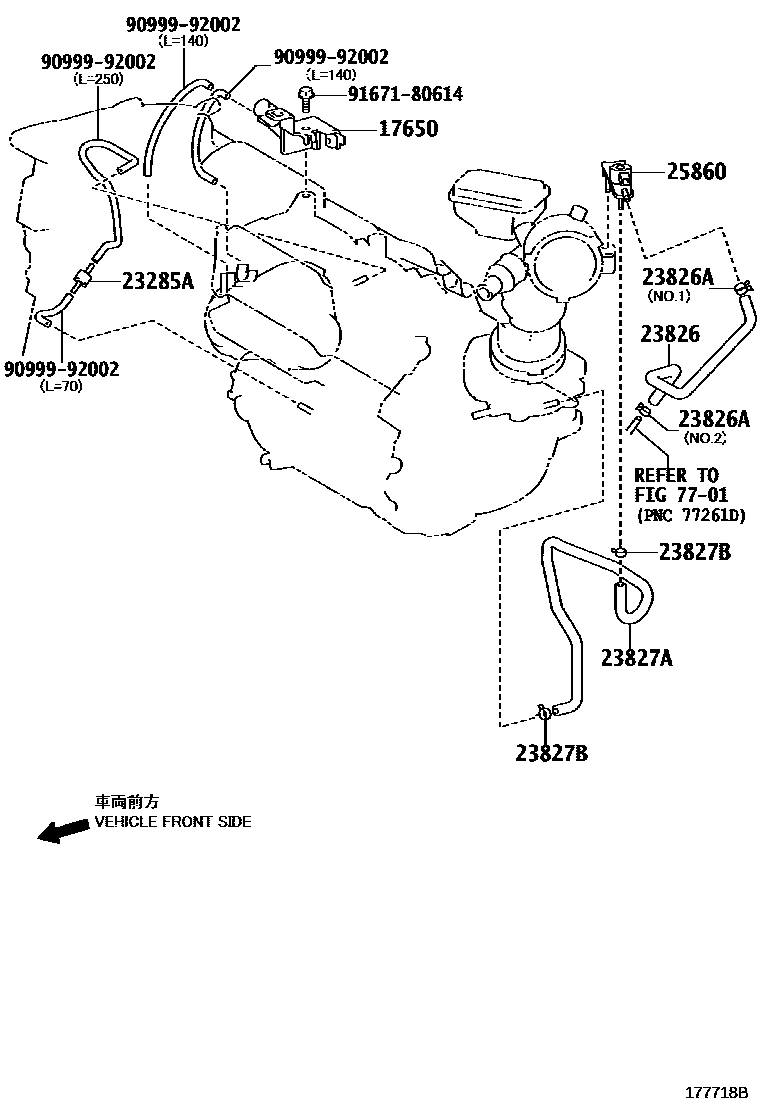

VACUUM PIPING
17650VALVE ASSY, VACUUM SWITCHING
23285AVALVE, CHECK, NO.1
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1:REFER ILLUST.
NO.1
NO.2:REFER ILLUST.
NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
9099992002
9167180614
10 parts on this diagram · 4 diagrams in section
