V-BELT

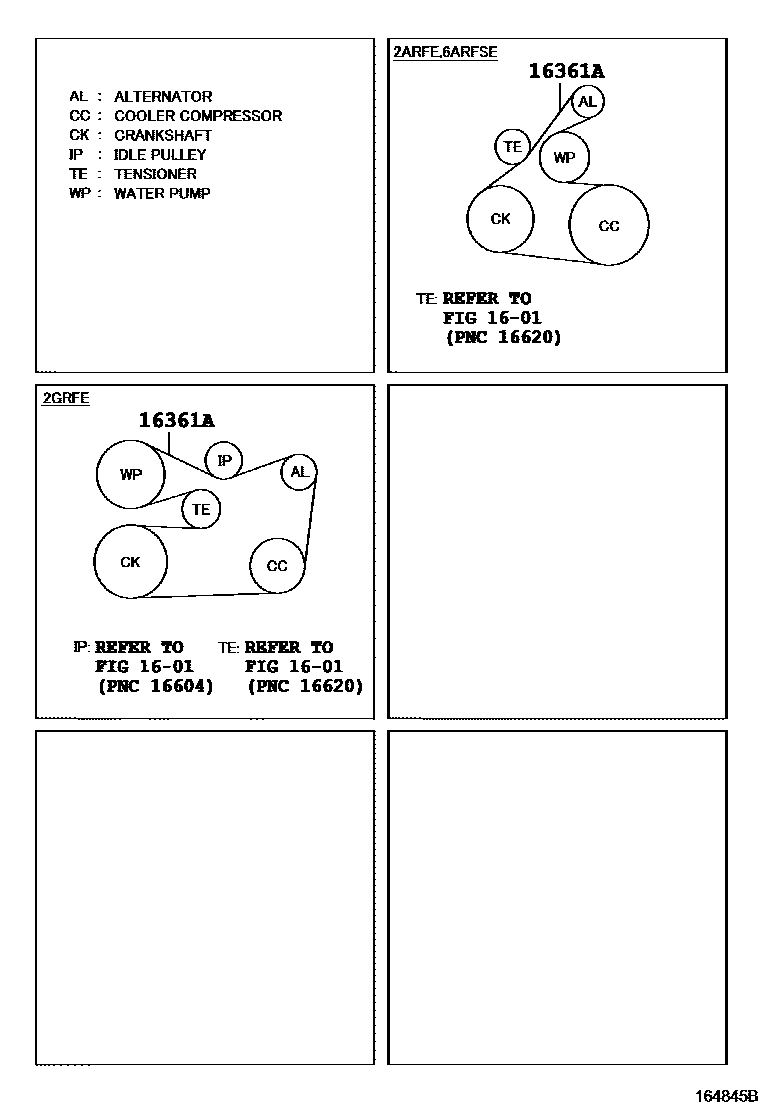

Parts diagram
1601
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02667i201206-201507
BANDO
main90916-02668i201206-201507
MITSUBOSHI
main90916-02731i201507
main99367-C1550i201206-201610
sub99367-K1550
main99367-K1550i201611

2 parts on this diagram · 1 diagram in section
