WATER PUMP

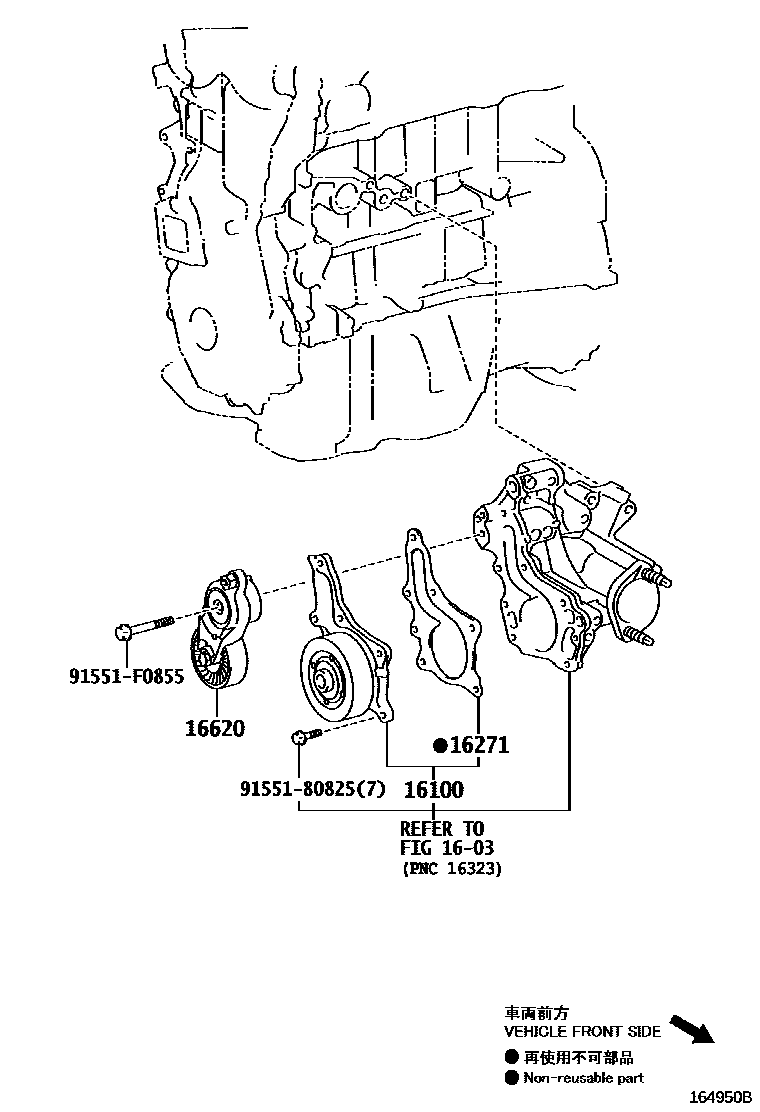

Parts diagram
1603
16100PUMP ASSY, ENGINE WATER
main16100-09700i201507
main16100-39456i201206-201507
main16100-39515i201206-201507
sub16100-39516
main161A0-39025i201206-201507
16271GASKET, WATER PUMP
main16271-0V010i201507
main16271-31030i201206-201507
main16271-36010i201206-201507
main16271-36020i201206-201507
16620TENSIONER ASSY, V-RIBBED BELT
main16620-0V050i201507-201508
sub16620-0V051
main16620-0V051i201509
main16620-31040i201206-201507
main16620-36010i201206-201402
sub16620-36011
main16620-36011i201402-201509
sub16620-36012
main16620-36012i201510-201712
sub16620-36013
main16620-36013i201801
9155180825
main91551-80825
91551F0855
main91551-F0855

6 parts on this diagram · 4 diagrams in section
