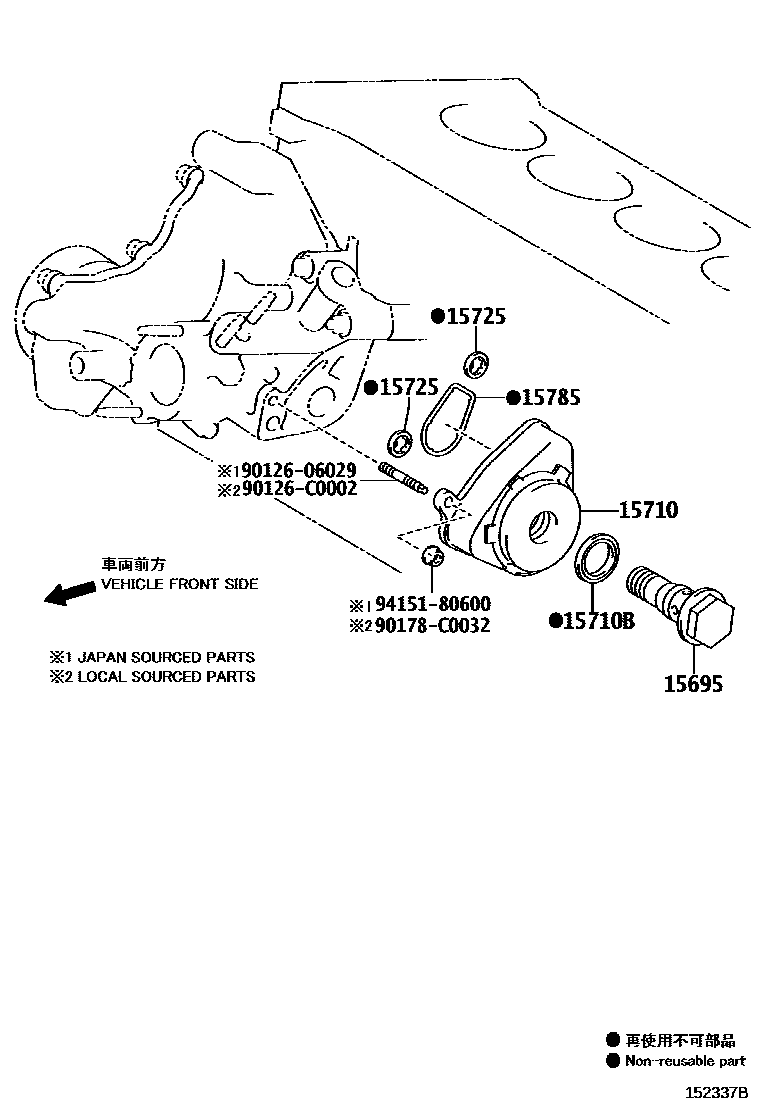

ENGINE OIL COOLER

0001 1 0002 1

15695BOLT, OIL COOLER UNION

main15695-62030i6ARFSE..ASV61¥1,170201507

15710COOLER ASSY, OIL

main15710-36010i6ARFSE..ASV61¥32,900201507

15710BRING, O(FOR OIL COOLER)

main90210-22001i6ARFSE..ASV61201507

15725GASKET, OIL COOLER COVER

main15725-36010i6ARFSE..ASV61¥380201507

15785GASKET, OIL COOLER

main15785-36010i6ARFSE..ASV61¥380201507

9012606029

main90126-06029¥60

90126C0002

main90126-C0002

90178C0032

main90178-C0032

9415180600

main94151-80600¥60

9 parts on this diagram · 2 diagrams in section
