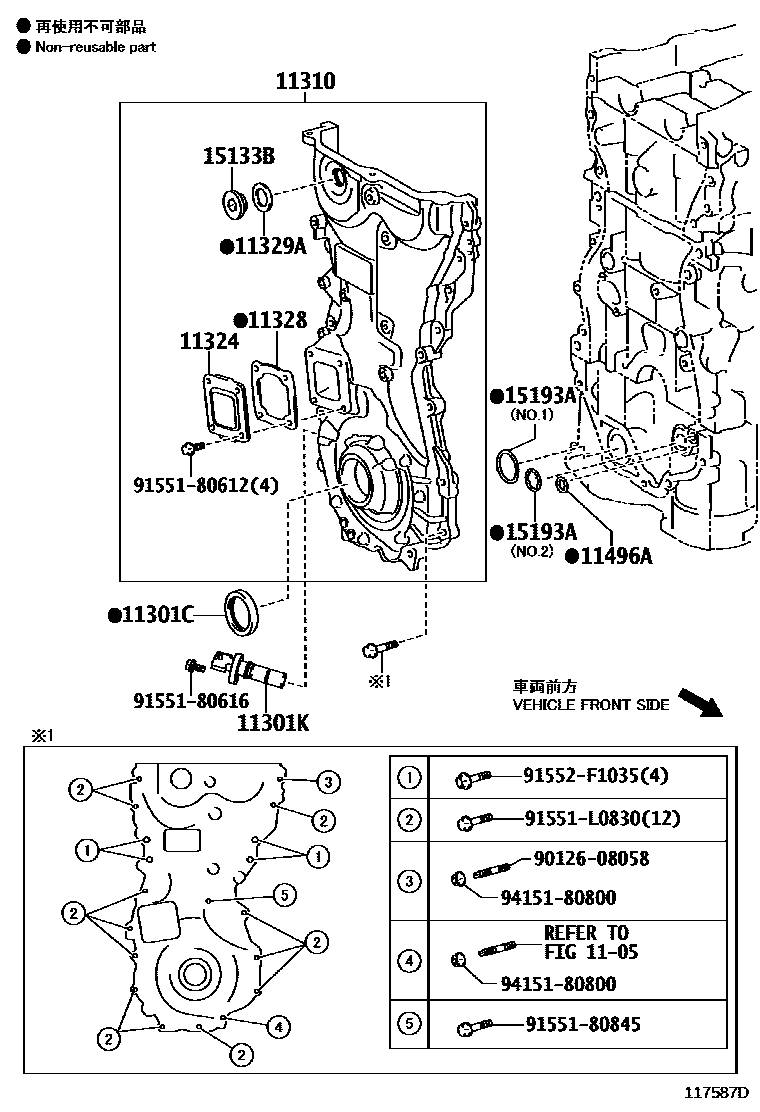

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301KSENSOR, CRANK POSITION
11310COVER ASSY, TIMING CHAIN
11324PLATE, TIMING CHAIN COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
11496AGASKET, OIL HOLE COVER
15133BPLUG, OIL PUMP RELIEF VALVE
15193AGASKET, OIL PUMP
NO.1
NO.1
NO.2
NO.2
9012608058
9155180612
9155180616
9155180845
91551L0830
91552F1035
9415180800
17 parts on this diagram · 3 diagrams in section
