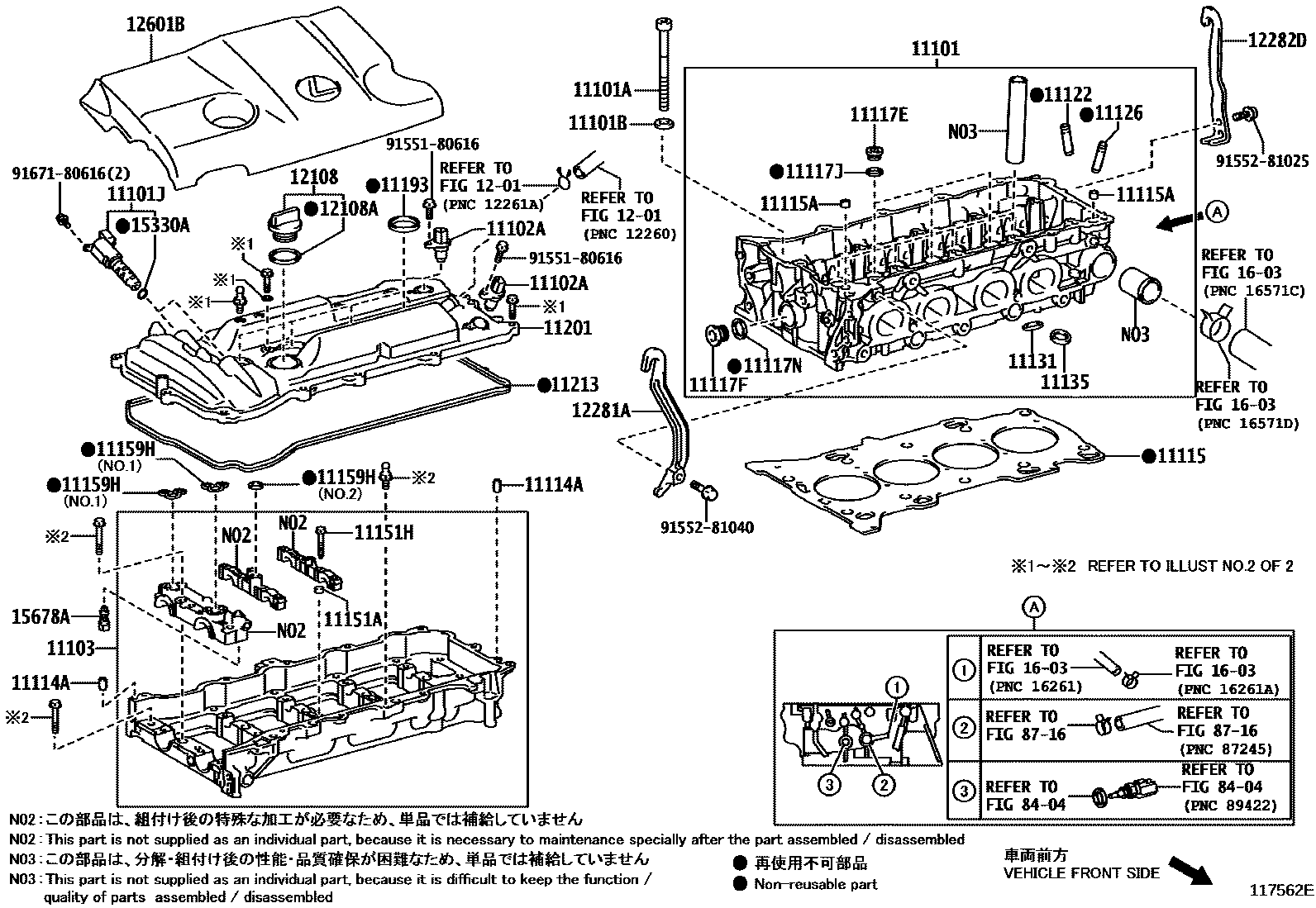

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
TYPE A
(J)
TYPE B
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
(L)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11102HEAD, CYLINDER, LH
11102ASENSOR, CAMSHAFT POSITION
(J)
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
11114APIN, STRAIGHT
L=14,OD=6
L=14,OD=6
11115GASKET, CYLINDER HEAD
11115APIN, RING
(J)
(L)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
(J)
(L)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,(J)
L=12.5,OD=8
L=12.5,OD=8,(L)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1
NO.1
NO.2
NO.2
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
(L)
(J)
1603
8404
8716
9155180616
9155281025
9155281040
9167180616
39 parts on this diagram · 7 diagrams in section
