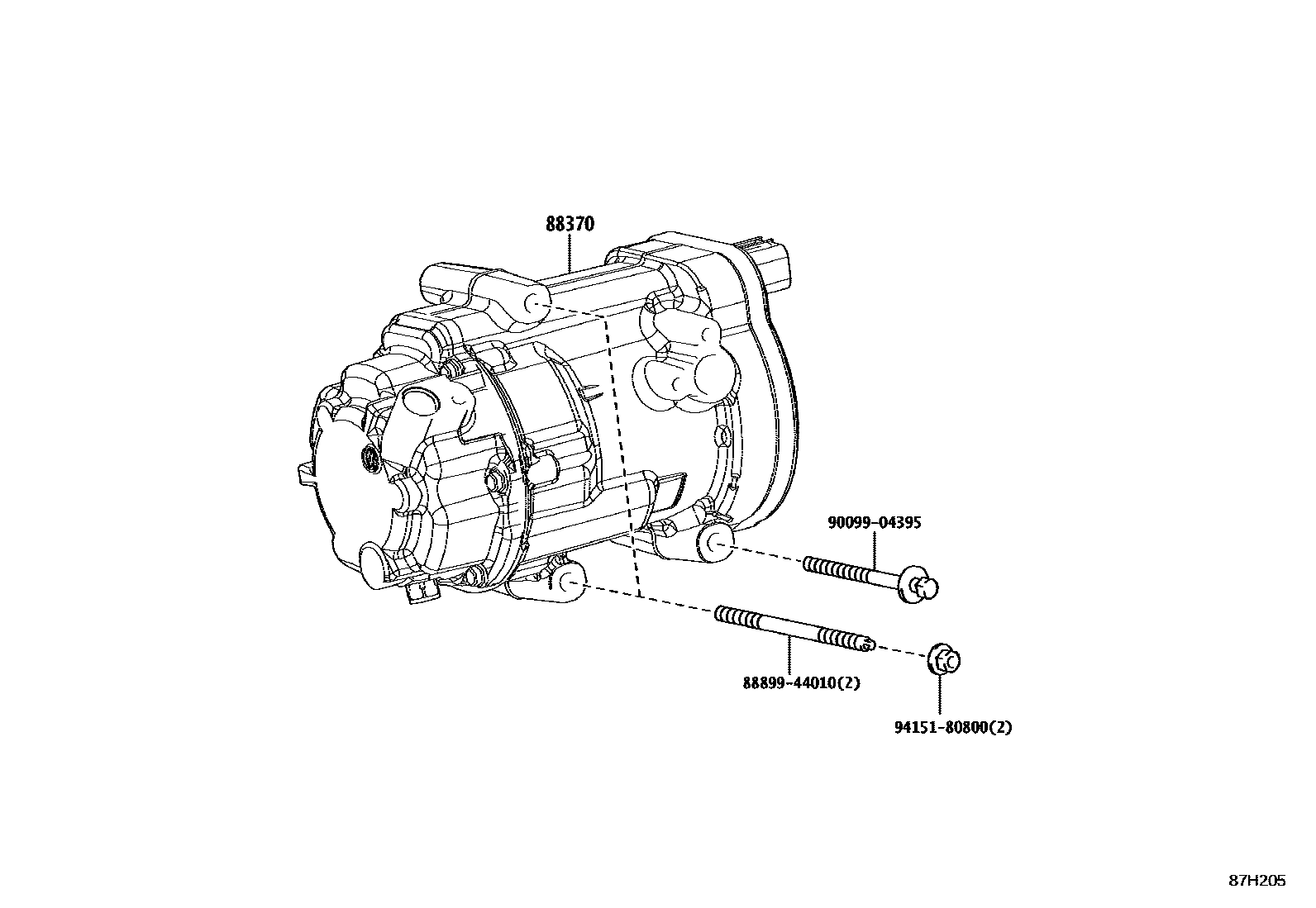

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88370COMPRESSOR ASSY, W/MOTOR

main88370-33040iAXZH10201807-201908

sub88370-33050

main88370-33050iAXZH10201909-202106

sub88370-33051

main88370-33051iAXZH10202107-202403

main88370-42081iAXZH10202403

8889944010COVER, EVAPORATOR

main88899-44010

9009904395

main90099-04395

9415180800

main94151-80800¥80

4 parts on this diagram · 4 diagrams in section
