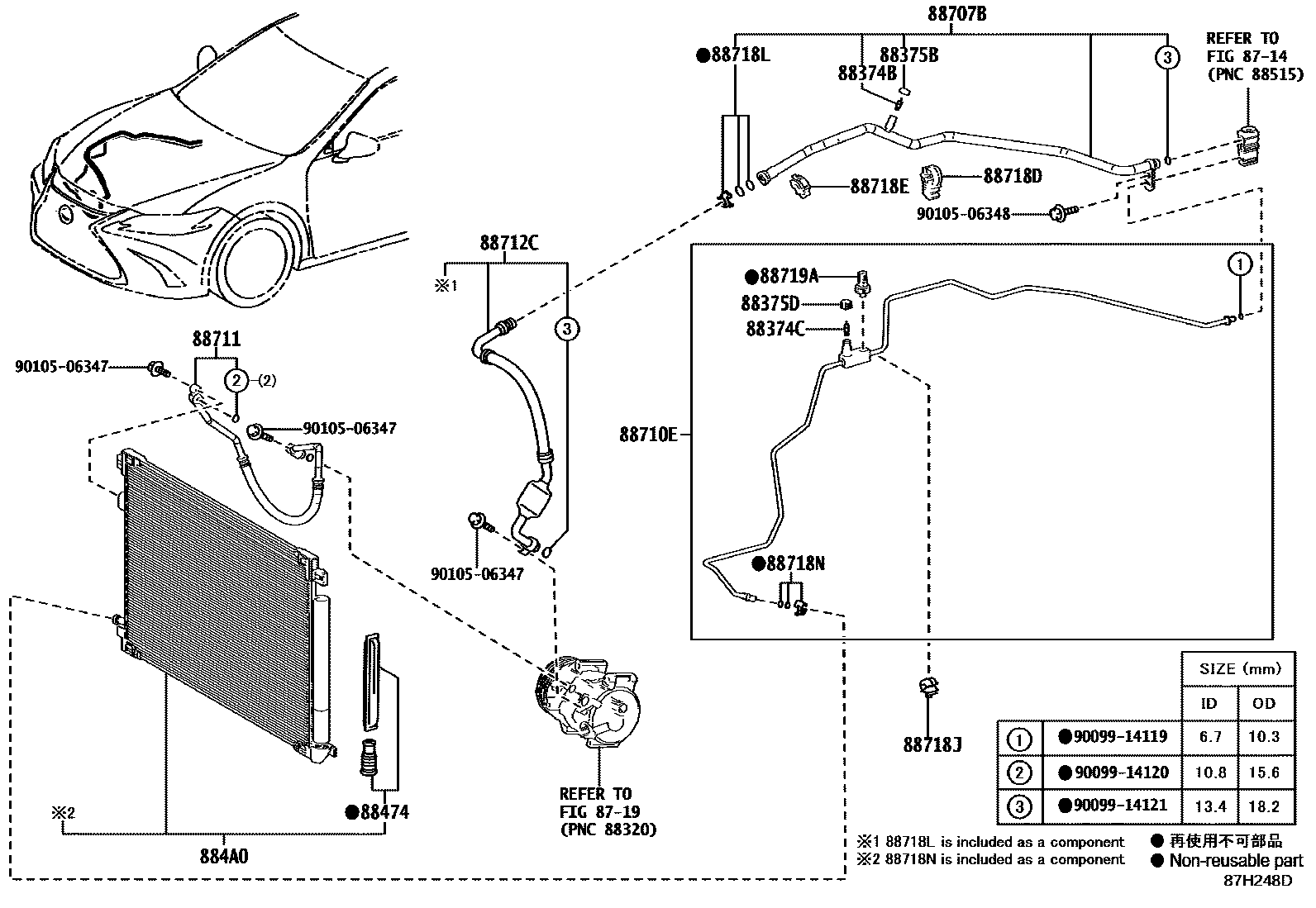

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

88374CVALVE, SERVICE, NO.2

main88374-30010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iASZ10,AXZA10,GSZ10;AXZH10,MXZA10..ARL,CHI,GCC,GEN,IND201806-202110

main88375-30290iAXZH10..LHD..EUR202108

MOROCCO SPEC

main88375-30310iAXZH10..EUR201807-202108

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iASZ10,AXZA10,GSZ10;AXZH10,MXZA10..ARL,CHI,GCC,GEN,IND201806-202110

main88375-30280iAXZA10,GSZ10,MXZA10;AXZH10..ARL,CHI,GCC,GEN,IND202108

MOROCCO SPEC

main88375-30320iAXZH10..EUR201807-202108

88474DRYER, COOLER

main88474-12020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

884A0CONDENSER ASSY, COOLER

main884A0-33040iAXZA10,GSZ10,MXZA10201806-202108

main884A0-33060iAXZH10201807-202110

88707BTUBE SUB-ASSY, SUCTION, B

main88707-33110iAXZH10..RHD..EUR201807-202108

main88707-33130iASZ10,AXZA10,GSZ10,MXZA10..LHD201806-202108

main88707-33180iAXZH10..ARL,GEN,IND201807-202110

main88707-33190iAXZH10..LHD..EUR201807-202108

MOROCCO SPEC

main88707-33200iAXZA10..RHD201806-202108

main88707-33210iAXZH10..LHD..EUR201807-202108

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33450iASZ10,AXZA10,GSZ10,MXZA10..LHD201806-202108

main88710-33500iAXZH10..ARL,GEN,IND201807-202110

main88710-33570iAXZH10..RHD..EUR201807-201902

sub88710-33571

main88710-33571iAXZH10..RHD..EUR201903-202108

main88710-33580iAXZH10..LHD..EUR201807-202108

MOROCCO SPEC

main88710-33590iAXZA10..RHD201806-202108

main88710-33600iAXZH10..LHD..EUR201807-202108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33320iASZ10201806-202108

main88711-33340iAXZH10201807-202110

main88711-33350iGSZ10201806-202108

main88711-33360iAXZA10201806-201912

main88711-33361iAXZA10202001-202403

sub88711-33362

main88711-33362iAXZA10202404

main88711-33370iMXZA10201907-201912

main88711-33371iMXZA10202001-202108

88712CHOSE, SUCTION

main88704-33630iAXZH10201807-202110

main88704-33640iGSZ10201806-202108

main88704-33650iASZ10201806-202108

main88704-33660iAXZA10201806-201912

main88704-33661iAXZA10202001-202403

main88704-33662iAXZA10202404

main88704-33670iMXZA10201907-201912

main88704-33671iMXZA10202001-202108

88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

main88718-33490iAXZA10,MXZA10;ASZ10,GSZ10..EUR,GCC201806-202108

88718ECLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

main88718-42110iASZ10,AXZA10,GSZ10,MXZA10201806-202110

88718JCLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)

main88718-33560iAXZH10202311

main88718-58050iAXZH10201806-202310

88718LCLAMP, PIPING

main88718-52280iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

88718NCLAMP, PIPING

main88718-1E150iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

23 parts on this diagram · 4 diagrams in section
