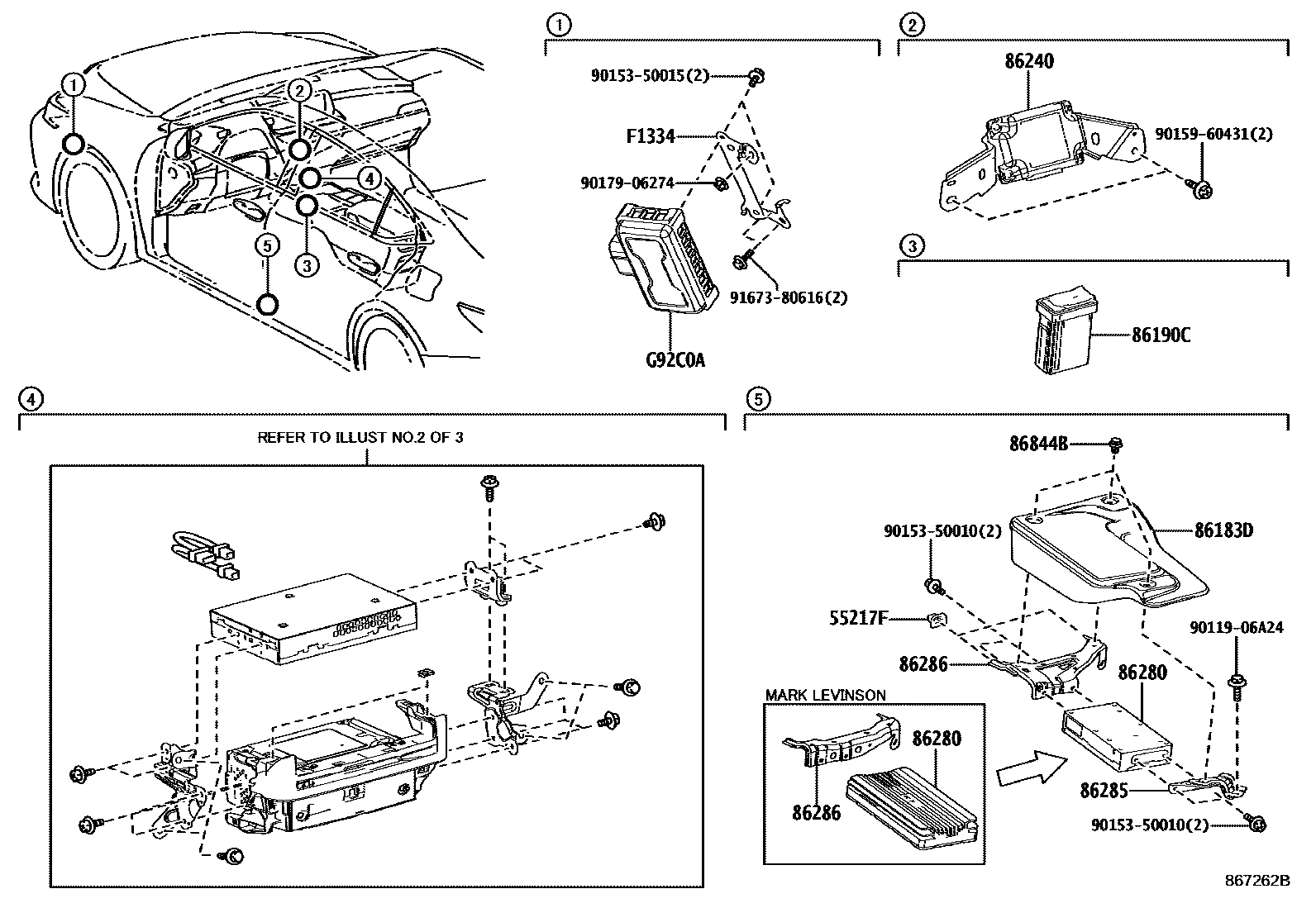

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1RECEIVER & AMPLIFIER 0003 1RECEIVER & AMPLIFIER 0004 1RECEIVER & AMPLIFIER 0005 1CONDENSER

55217FRETAINER, AUDIO AMPLIFIER

main55217-32010iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

86183DCOVER, AUDIO AMPLIFIER

main86183-33120-C0iMXZA10..CHI202108

AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,BLACK,TRIM0#,2#,3#,4#,6#,7#

main86183-33120-C0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

BLACK,TRIM1#,2#

main86183-33120-C0iAXZA10,GSZ10..CHI,GCC;AXZH10..ARL,CHI,GCC,GEN202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main86183-33120-C0iAXZA10,GSZ10..CHI,GCC;AXZH10..ARL,CHI,GCC,GEN202108

BLACK,TRIM0#,2#,4#,6#,7#

main86183-33120-C0iAXZH10..IND202110

BLACK,TRIM2#,4#,6#,7#

main86183-33120-E0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

NOBLE BROWN,TRIM5#,6#

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010iASZ10,AXZA10,AXZH10,GSZ10,MXZA10201806-202008

main86190-24030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10202008-202208

main86190-48090iAXZH10..IND202208

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-33030iAXZH10..ARL,CHI,EUR,GCC,GEN202108-202208

F SPORT

main86240-33030iAXZH10..IND201807-202210

main86240-33040iAXZH10..IND202208-202402

main86240-33040iAXZH10..ARL,GCC,GEN202208

F SPORT

main86240-33100iAXZH10..EUR202402-202411

main86240-33130iAXZH10..CHI202411

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WE70iAXZH10..IND202001-202208

main86280-33300iASZ10,AXZA10,GSZ10;AXZH10..CHI,EUR,GCC,GEN201806-201902

main86280-33301iASZ10,AXZA10,GSZ10;AXZH10..CHI,EUR,GCC,GEN201902-201905

AUDIO-8INCH DISPLAY & *DA & CD & DAB

main86280-33302iGSZ10..GCC;AXZH10..CHI,EUR,GCC;AXZA10,MXZA10..CHI,EUR,GCC,GEN202108-202208

AUDIO-8INCH DISPLAY & *DA & DVD & DAB

main86280-33302iAXZH10..CHI,EUR,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10201905-202108

AUDIO-8INCH DISPLAY & *DA & CD & DAB

main86280-33310iAXZH10..ARL201807-201902

main86280-33311iAXZH10..ARL201902-201905

AUDIO-12.3INCH DISPLAY & DVD

main86280-33311iAXZH10..EUR,GEN;ASZ10,AXZA10,GSZ10..ARL,EUR,GEN201902-201905

AUDIO-12.3INCH DISPLAY & DVD & DAB

main86280-33312iGSZ10..GCC;AXZH10..EUR,GCC;AXZA10,MXZA10..EUR,GCC,GEN202108-202208

AUDIO-12.3INCH DISPLAY & DVD

main86280-33312iAXZH10..ARL201905-202208

AUDIO-12.3INCH DISPLAY & DVD & DAB

main86280-33410iAXZH10,GSZ10..CHI,GCC;AXZA10,MXZA10..CHI,EUR,GCC,GEN202208

AUDIO-8INCH DISPLAY & *DA & CD & DAB

main86280-33410iAXZH10..EUR202208-202402

main86280-33420iAXZH10,GSZ10..GCC;AXZA10,MXZA10..EUR,GCC202208

AUDIO-12.3INCH DISPLAY & DVD & DAB

main86280-33420iGSZ10..EUR;AXZA10..ARL;AXZH10..ARL,GEN202208

AUDIO-12.3INCH DISPLAY & DVD

main86280-33420iAXZH10..EUR202402

main86280-33440iAXZH10..LHD..EUR;AXZA10..EUR,GCC,GEN;AXZH10,GSZ10..CHI,GCC,GEN202208-202406

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB

main86280-33440iAXZH10..LHD..EUR;AXZA10..EUR,GCC,GEN;AXZH10,GSZ10..CHI,GCC,GEN202208-202406

AUDIO-12.3INCH DISPLAY & DVD & *MAR

main86280-33441iAXZH10..IND202407

AUDIO-12.3INCH DISPLAY & DVD & *MAR

main86280-33441iAXZH10..IND202407

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB

86285BRACKET, AMPLIFIER, NO.1

main86285-33180iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

86286BRACKET, AMPLIFIER, NO.2

main86286-33170iAXZH10..IND202001-202110

main86286-33180iAXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN201806-202208

main86286-33190iAXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN202208

AUDIO-12.3INCH DISPLAY & DVD

86844BRETAINER, AUDIO AMPLIFIER COVER

main86844-33010-C1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

BLACK,TRIM1#,2#

main86844-33010-C1iMXZA10;AXZH10..EUR;AXZA10,GSZ10..ARL,EUR,GEN202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main86844-33010-C1iMXZA10;AXZH10..EUR;AXZA10,GSZ10..ARL,EUR,GEN202108

BLACK,TRIM0#,2#,4#,6#,7#

main86844-33010-C1iMXZA10;AXZH10..EUR;AXZA10,GSZ10..ARL,EUR,GEN202108

AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,BLACK,TRIM0#,2#,3#,4#,6#,7#

main86844-33010-C1iAXZH10..IND202110

BLACK,TRIM2#,4#,6#,7#

main86844-33010-E2iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

NOBLE BROWN,TRIM5#,6#

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF133433020iASZ10..CHI201806-202108

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iASZ10..EUR;AXZA10,MXZA10..ARL,CHI,EUR,GEN201806-202108

9011906A24

main90119-06A24

9015350010

main90153-50010

9015350015

main90153-50015

9015960431

main90159-60431

9017906274

main90179-06274

9167380616

main91673-80616

16 parts on this diagram · 5 diagrams in section
