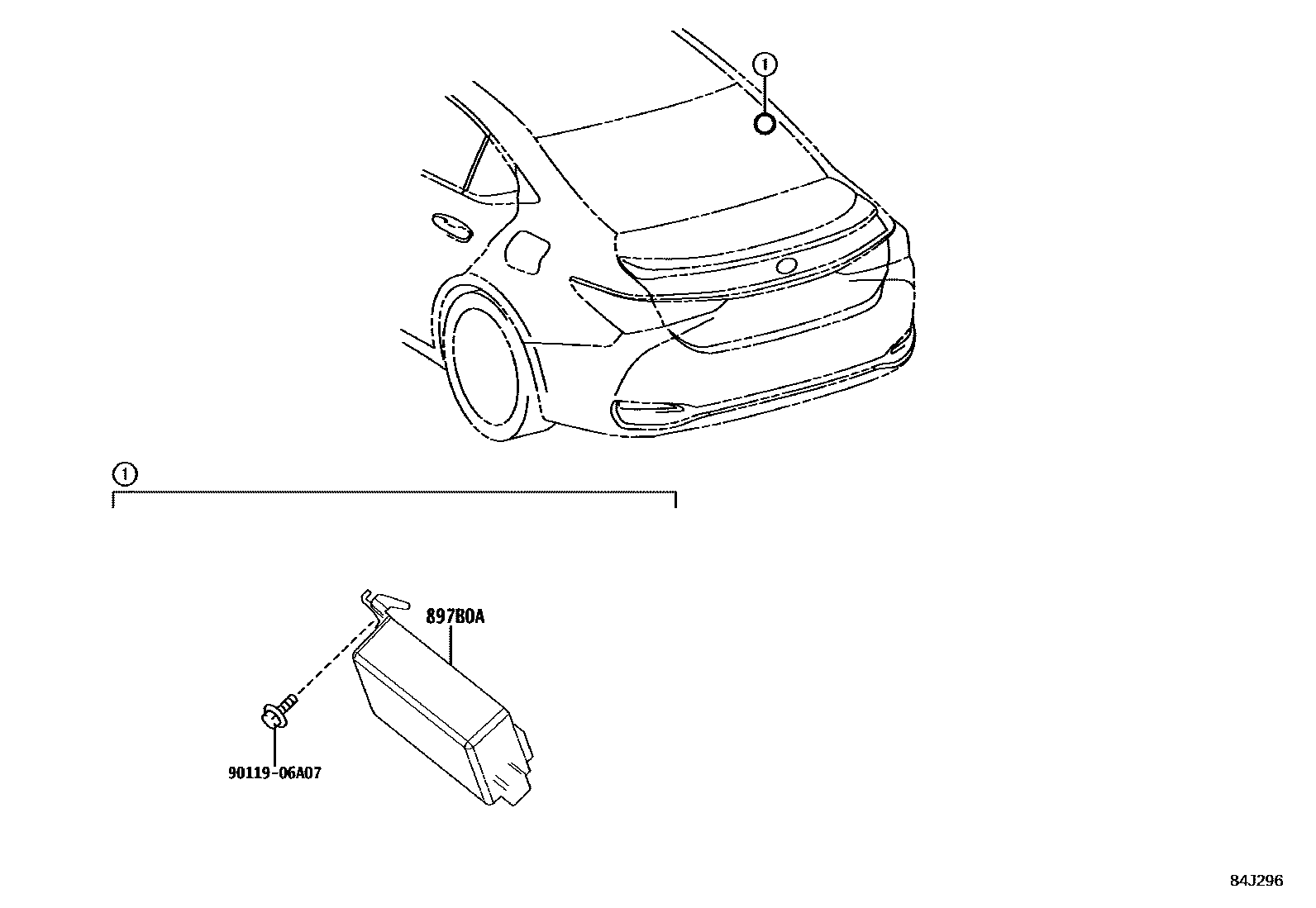

TIRE PRESSURE WARNING SYSTEM

0001 1 0003 1

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-33300iASZ10..CHI201806-202402

TAIWAN SPEC

main897B0-33300iMXZA10..CHI202208

TAIWAN SPEC&TIRE & DISC WHEEL- 235/45R18, SUMMER TIRE, ALUMI

main897B0-33300iASZ10..CHI201907-202007

main897B0-33310iASZ10,AXZA10,AXZH10,GSZ10..EUR201806-202207

sub897B0-33311

main897B0-33311iAXZH10..LHD..EUR202402

UKRAINE SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33311iAXZH10..LHD..EUR202402

UKRAINE SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33311iAXZH10..LHD..EUR202402

MOLDOVA SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33311iAXZH10..LHD..EUR202402

MOLDOVA SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33311iAXZH10..LHD..EUR202402

GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33311iAXZH10..LHD..EUR202402

GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33311iAXZH10..LHD..EUR202402

AZERBAIJAN SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33311iAXZH10..LHD..EUR202402

AZERBAIJAN SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33311iAXZH10..EUR202208-202402

main897B0-33320iAXZH10..LHD..EUR202108-202306

VIETNAM SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

sub897B0-33321

main897B0-33320iAXZH10..GCC,GEN;AXZA10,GSZ10..ARL,GCC,GEN201806-202108

sub897B0-33321

main897B0-33320iAXZH10..LHD..EUR201807-202306

TURKEY SPEC

sub897B0-33321

main897B0-33320iAXZH10..LHD..EUR201807-202108

SOUTH AFRICA SPEC

sub897B0-33321

main897B0-33320iAXZH10..LHD..EUR201807-202306

ISRAEL SPEC

sub897B0-33321

main897B0-33320iAXZH10..LHD..EUR201807-202108

MOROCCO SPEC

sub897B0-33321

main897B0-33320iAXZA10..EUR201811-202306

VIETNAM SPEC

sub897B0-33321

main897B0-33320iAXZH10..LHD..EUR201907-202108

VIETNAM SPEC&TIRE & DISC WHEEL-*592

sub897B0-33321

main897B0-33320iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN202108-202306

MOROCCO SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

sub897B0-33321

main897B0-33320iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN202108-202306

MOROCCO SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

sub897B0-33321

main897B0-33321iAXZH10..LHD..EUR202307

VIETNAM SPEC

main897B0-33321iAXZH10..LHD..EUR202307

MOROCCO SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33321iAXZH10..LHD..EUR202307

MOROCCO SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33321iAXZH10..LHD..EUR202307

VIETNAM SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33321iAXZH10..LHD..EUR202307-202402

TURKEY SPEC

main897B0-33321iAXZH10..LHD..EUR202307-202402

ISRAEL SPEC

main897B0-33330iAXZH10..LHD..EUR202108

PERU SPEC

main897B0-33330iAXZH10..LHD..EUR202108

ARGENTINA SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33330iAXZH10..LHD..EUR202108

ARGENTINA SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33330iAXZH10..LHD..EUR202108-202411

ARGENTINA SPEC&TIRE & DISC WHEEL-235/40R19, SUMMER TIRE, FOR F SPORT

main897B0-33330iAXZH10..LHD..EUR201907-202411

PANAMA SPEC

main897B0-33330iAXZA10..EUR201907-202108

ARGENTINA SPEC&TIRE & DISC WHEEL-*592

main897B0-33330iAXZA10..EUR201907-202108

ARGENTINA SPEC&TIRE & DISC WHEEL-*591

main897B0-33330iAXZA10..EUR201806-202108

COSTA RICA, PANAMA SPEC

main897B0-33330iAXZA10..EUR201806-202108

DOMINICAN REPUBLIC SPEC

main897B0-33330iASZ10,AXZA10,AXZH10..CHI201806-201907

main897B0-33340iAXZH10..RHD..EUR201807-202008

INDIA SPEC&TIRE & DISC WHEEL-*592

main897B0-33340iAXZH10..RHD..EUR201807-201907

INDIA SPEC&TIRE & DISC WHEEL-*591

main897B0-33340iAXZH10..IND202001-202110

main897B0-33380iAXZH10..LHD..EUR201806-202108

CHILE SPEC

main897B0-33410iAXZA10,AXZH10,MXZA10..CHI201907-202402

main897B0-33430iAXZH10..LHD..EUR202008-202108

BRAZIL SPEC&TIRE & DISC WHEEL-*592

main897B0-33430iAXZH10..LHD..EUR202008-202108

BRAZIL SPEC&TIRE & DISC WHEEL-*591

main897B0-33450iAXZH10..LHD..EUR202108-202411

CHILE SPEC

main897B0-33450iAXZH10..LHD..EUR202411

CHILE SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33470iAXZH10..LHD..EUR202108

BRAZIL SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)

main897B0-33470iAXZH10..LHD..EUR202108-202411

BRAZIL SPEC&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)

main897B0-33580iAXZH10,MXZA10..CHI202402

main897B0-33590iAXZH10..EUR202402

9011906A07

main90119-06A07

2 parts on this diagram · 2 diagrams in section
