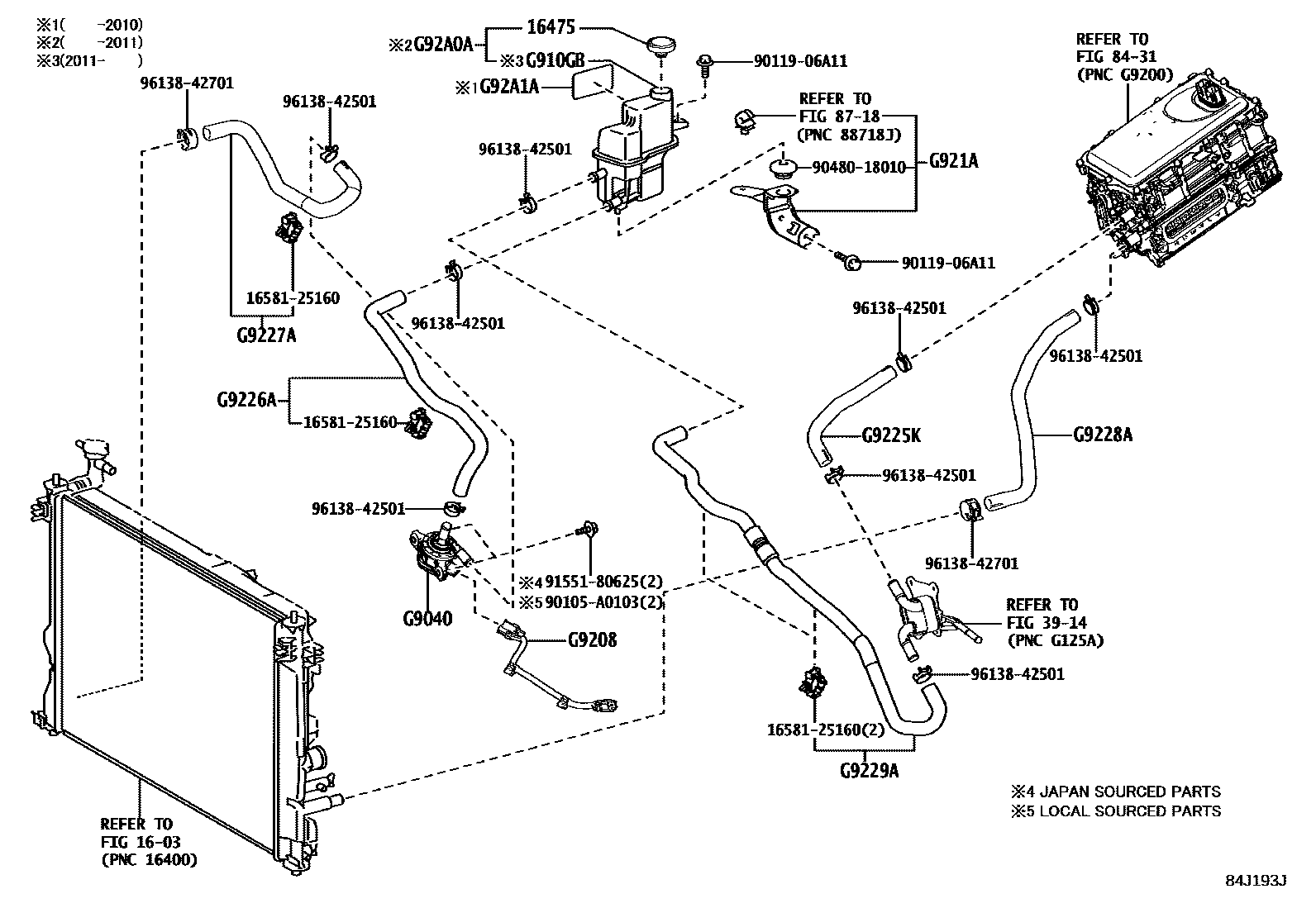

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS,A25BFXS..AXZH10201807-202110

3914

8431

8718

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iAXZH10201807-202402

mainG904048060iAXZH10202402

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G33010iAXZH10202011-202110

G9208WIRE SUB-ASSY, INVERTER

mainG920833060iAXZH10201807-202110

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H233010iAXZH10201807-202310

mainG91H233011iAXZH10202311

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533080iAXZH10201807-202110

G9226AHOSE, INVERTER COOLING, NO.2

mainG922633021iAXZH10201807-201908

mainG922633022iAXZH10201909-202110

G9227AHOSE, INVERTER COOLING, NO.3

mainG922733020iAXZH10201807-201908

subG9227-33021

mainG922733021iAXZH10201909-202110

G9228AHOSE, INVERTER COOLING, NO.4

mainG922833030iAXZH10201807-202110

G9229AHOSE, INVERTER COOLING, NO.5

mainG922933031iAXZH10201807-201908

mainG922933032iAXZH10201909-202110

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H033010iAXZH10201807-202011

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXZH10201807-202010

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

90105A0103

main90105-A0103

9011906A11

main90119-06A11

9048018010

main90480-18010

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

23 parts on this diagram · 1 diagram in section
