ELECTRONIC FUEL INJECTION SYSTEM

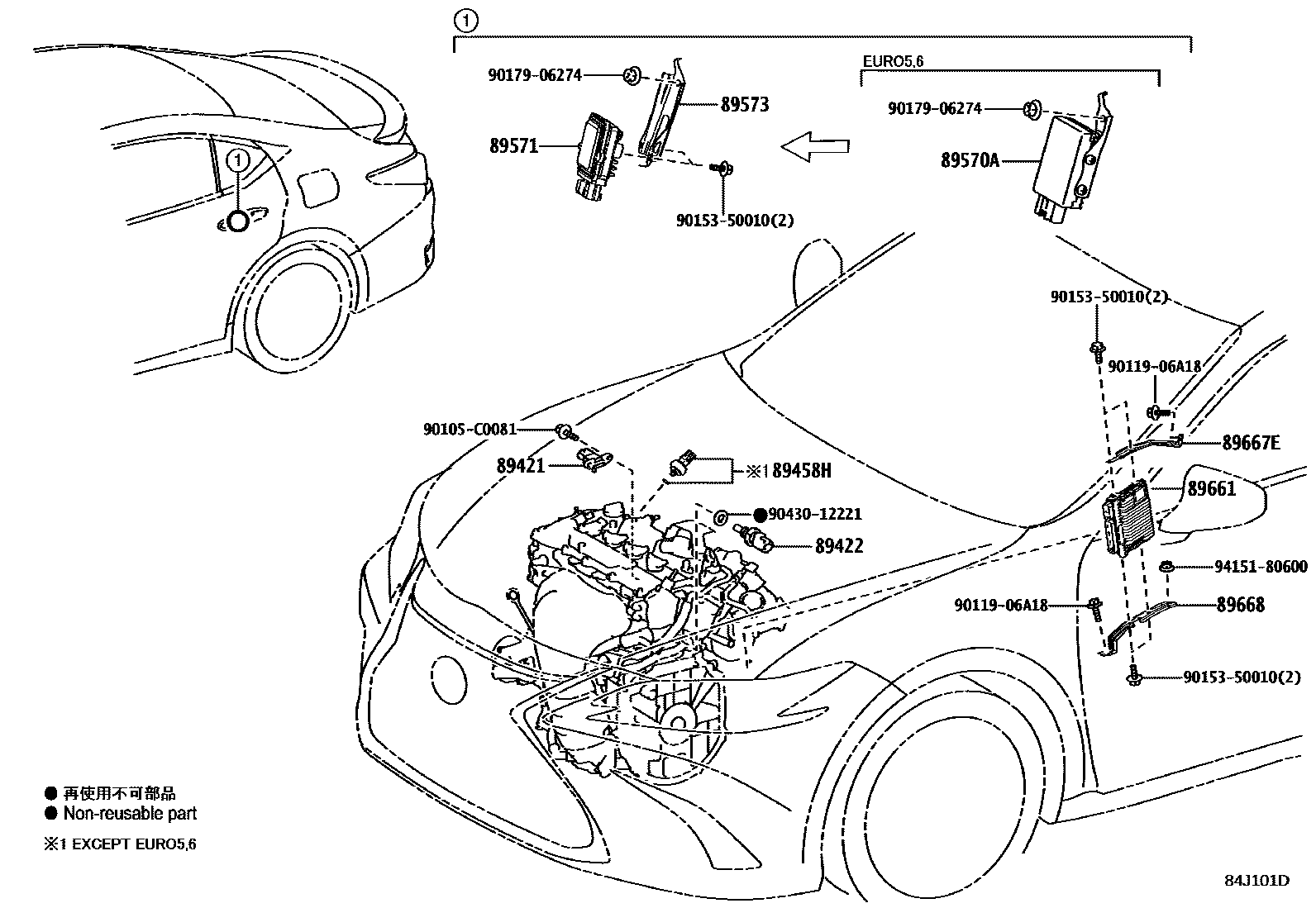

Parts diagram
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-26030i¥5,900201806-202108
main89421-33010i¥5,900201806-202110
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-0D010i¥2,390201806-202108
main89422-47010i¥2,410201806-202108
89458SENSOR, FUEL PRESSURE
main89458-33030i¥4,320201806-202110
89458HSENSOR, FUEL PRESSURE, NO.2
main89458-33041i¥4,760201806-202212
main89458-33042i¥4,320202301
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
main89570-33080i201806-202108
89571COMPUTER, FUEL PUMP CONTROL
main89571-06020i201806-201911
(L)
main89571-08010i201911-202108
(L)
main89571-33030i¥10,900201806-201911
main89571-42010i¥9,900201911-202110
main89571-58010i¥10,300201806-201911
(J)
main89571-58020i¥10,300201911-202108
(J)
89573BRACKET, FUEL PUMP CONTROL COMPUTER
main89573-33040i¥540201806-201911
main89573-33070i¥410201911-202110
89661COMPUTER, ENGINE CONTROL
main89661-33K10i201806-201907
DENSO
main89661-33P10i201806-201907
DENSO,MOLDOVA SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,GEORGIA SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO
sub89661-33P11
main89661-33P10i201806-201907
DENSO,CHILE SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,PERU SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,DOMINICAN REPUBLIC SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,COSTA RICA, PANAMA SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,MALAYSIA SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,INDONESIA SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,BRUNEI SPEC
sub89661-33P11
main89661-33P10i201806-201907
DENSO,UZBEKISTAN SPEC
sub89661-33P11
main89661-33Q30i201807-201907
DENSO
main89661-33W30i201806-201907
DENSO,AZERBAIJAN SPEC
sub89661-33W31
main89661-33W30i201806-201907
DENSO,UKRAINE SPEC
sub89661-33W31
main89661-33W30i201806-201907
DENSO
sub89661-33W31
main89661-33W50i201806-201810
DENSO
sub89661-33W51
main89661-33W51i201811-201907
DENSO
sub89661-33W52
main89661-33W80i201807-201907
DENSO
main89661-33X00i201807-201810
DENSO
sub89661-33X01
main89661-33X00i201807-201810
DENSO,TAIWAN SPEC
sub89661-33X01
main89661-33X01i201811-201907
DENSO
main89661-33X01i201811-201907
DENSO,TAIWAN SPEC
main89661-33X10i201806-201810
DENSO
sub89661-33X11
main89661-33X11i201811-201907
DENSO
main89661-33X20i201907-202007
DENSO
main89661-33X30i201806-202108
DENSO
main89661-33X60i201806-202108
DENSO,CURACAO SPEC
main89661-33X60i201806-202108
DENSO,ARUBA SPEC
main89661-33X60i201806-202108
DENSO,GUATEMALA SPEC
main89661-33X60i201806-202108
DENSO
main89661-33X60i201806-202108
DENSO,GEORGIA SPEC
main89661-33X60i201806-202108
DENSO,MOLDOVA SPEC
main89661-33X60i201806-202108
DENSO,NICARAGUA SPEC
main89661-33X80i201806-202108
DENSO
main89661-33Y00i201807-201907
DENSO
main89661-33Y00i201807-201907
DENSO,TAIWAN SPEC
main89661-33Y00i201807-201907
DENSO,MOROCCO SPEC
main89661-33Y00i201807-201907
DENSO,INDIA SPEC
main89661-33Y80i201806-201907
DENSO
sub89661-33Y81
main89661-33Z00i201907-202110
DENSO
main89661-33Z10i201907-202107
DENSO
main89661-33Z30i201907-202107
DENSO
main89661-33Z40i201907-202008
DENSO,TAIWAN SPEC
main89661-33Z40i201907-202008
DENSO
main89661-33Z50i202008-202107
DENSO
main89661-33Z50i202008-202107
DENSO,TAIWAN SPEC
main89661-33Z70i202008-202108
DENSO
main89661-3TA10i201907-202008
DENSO
main89661-3TA80i201907-202107
DENSO,AZERBAIJAN SPEC
main89661-3TA80i201907-202107
DENSO,UKRAINE SPEC
main89661-3TA80i201907-202107
DENSO
main89661-3TB00i201907-202008
DENSO
main89661-3TB10i202008-202107
DENSO
main89661-3TB20i201907-202107
DENSO
main89661-3TB30i201907-202107
DENSO,VIETNAM SPEC
main89661-3TB30i201907-202107
DENSO
main89661-3TB30i201907-202107
DENSO,CHILE SPEC
main89661-3TB30i201907-202107
DENSO,PERU SPEC
main89661-3TB30i201907-202107
DENSO,DOMINICAN REPUBLIC SPEC
main89661-3TB30i201907-202107
DENSO,COSTA RICA, PANAMA SPEC
main89661-3TB30i201907-202107
DENSO,MALAYSIA SPEC
main89661-3TB30i201907-202107
DENSO,INDONESIA SPEC
main89661-3TB30i201907-202107
DENSO,BRUNEI SPEC
main89661-3TB30i201907-202107
DENSO,MOLDOVA SPEC
main89661-3TB30i201907-202107
DENSO,GEORGIA SPEC
main89661-3TB30i201907-202107
DENSO,PANAMA SPEC
main89661-3TB40i201907-202107
DENSO
main89661-3TD00i202402
DENSO
main89661-3TF60i202108
DENSO
main89661-3TF70i202108
DENSO
main89661-3TF80i202108-202208
DENSO
main89661-3TG00i202108
DENSO
main89661-3TG30i202402
DENSO
main89661-3TG40i202108
DENSO
main89661-3TG40i202108
DENSO,VIETNAM SPEC
main89661-3TG40i202402
DENSO,GEORGIA SPEC
main89661-3TG40i202402
DENSO,MOLDOVA SPEC
main89661-3TG40i202108
DENSO,UKRAINE SPEC
main89661-3TG40i202108
DENSO,AZERBAIJAN SPEC
main89661-3TG50i202108-202208
DENSO
main89661-3TG60i202108
DENSO
main89661-3TG80i202108-202406
DENSO
main89661-3TG81i202407
DENSO
main89661-3TJ20i202108-202208
DENSO,ARGENTINA SPEC
main89661-3TJ20i202108-202208
DENSO
main89661-3TJ20i202108-202208
DENSO,VIETNAM SPEC
main89661-3TJ30i202108-202208
DENSO
main89661-3TJ40i202108-202208
DENSO,INDONESIA SPEC
main89661-3TJ40i202108-202208
DENSO,BRUNEI SPEC
main89661-3TJ40i202108-202208
DENSO,MOROCCO SPEC
main89661-3TJ40i202108-202208
DENSO,SOUTH AFRICA SPEC
main89661-3TJ40i202108-202208
DENSO
main89661-3TJ40i202108-202208
DENSO,CHILE SPEC
main89661-3TJ40i202108-202208
DENSO,PERU SPEC
main89661-3TJ50i202108-202303
DENSO
main89661-3TK00i202303-202402
DENSO
main89661-3TK20i202208
DENSO,UKRAINE SPEC
main89661-3TK20i202208-202411
DENSO
main89661-3TK20i202208
DENSO,VIETNAM SPEC
main89661-3TK20i202208
DENSO,ARGENTINA SPEC
main89661-3TK20i202208
DENSO,AZERBAIJAN SPEC
main89661-3TK20i202208
DENSO,MOROCCO SPEC
main89661-3TK30i202208-202402
DENSO
main89661-3TK40i202208
DENSO,BRUNEI SPEC
main89661-3TK40i202208
DENSO,SOUTH AFRICA SPEC
main89661-3TK40i202208
DENSO
main89661-3TK40i202208
DENSO,CHILE SPEC
main89661-3TK40i202208
DENSO,PERU SPEC
main89661-3TK40i202208
DENSO,INDONESIA SPEC
main89661-3TK50i202310-202402
DENSO
main89661-3TL50i202303-202402
DENSO
main89661-3TM70i202402
DENSO
main89661-3TN40i202411
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-33190i¥800201806-202208
main89667-33200i¥650201807-202303
main89667-33210i201806-202108
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-33240i201806-202208
main89668-33250i201807-202303
main89668-33260i201806-202108
main89668-33290i¥860201807-202110
90105C0081
main90105-C0081
9011906A18
main90119-06A18¥80
9015350010
main90153-50010¥70
9017906274
main90179-06274¥70
9043012221
main90430-12221¥200
9415180600
main94151-80600¥60

16 parts on this diagram · 5 diagrams in section
