ACCELERATOR LINK

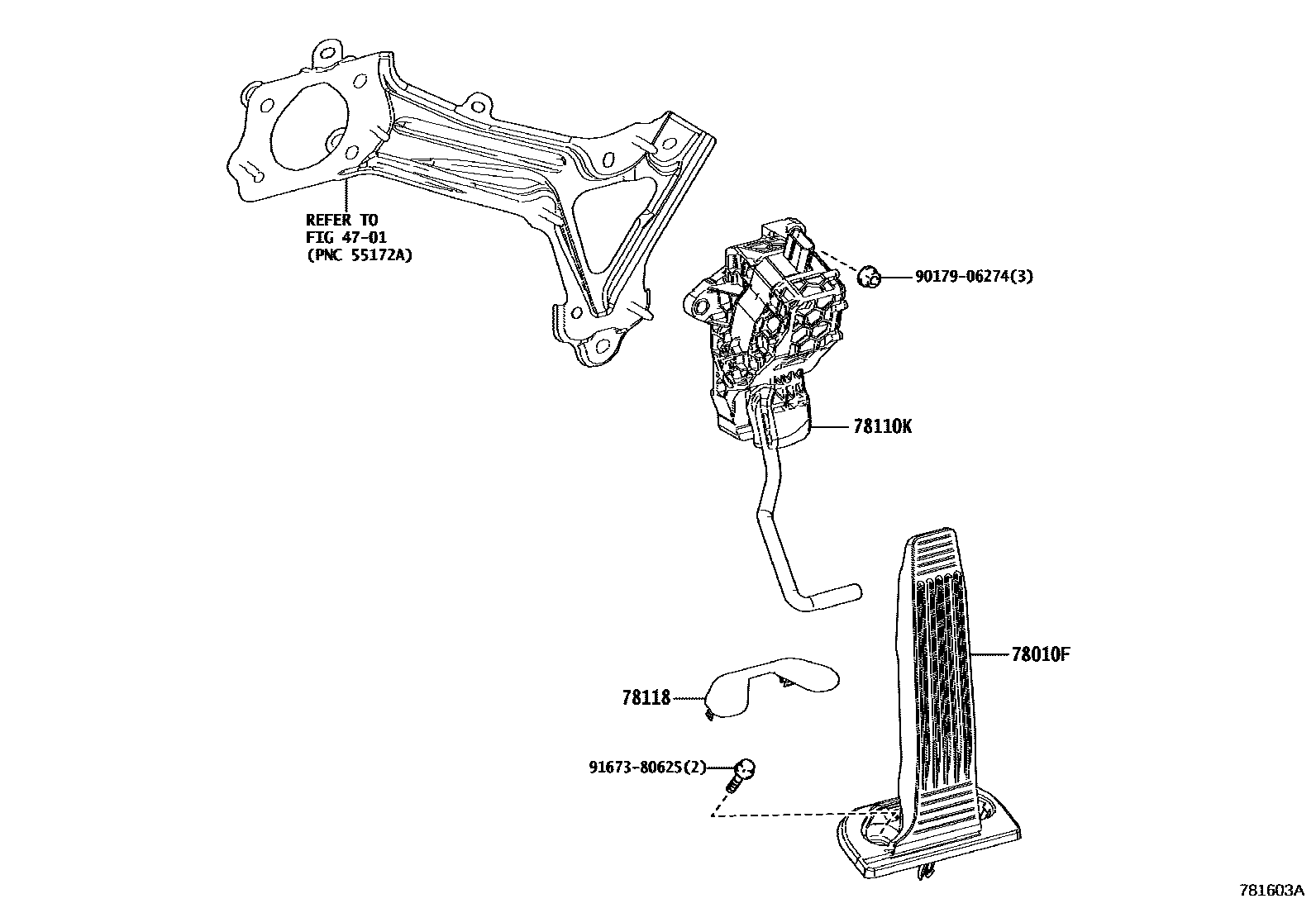

Parts diagram
4701
78010FPEDAL ASSY, ACCELERATOR
main78101-33060i201806-202202
sub78101-33061
main78101-33061i202203
main78101-33070i201806-202410
F SPORT
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
main78110-33130i201907-202008
ULTRA LUXURY PACKAGE
sub78110-33131
main78110-33130i201806-202009
sub78110-33131
main78110-33130i201902-202008
LUXURY PACKAGE
sub78110-33131
main78110-33131i202108-202410
F SPORT
main78110-33131i202010-202108
main78110-33140i201806-202009
sub78110-33141
main78110-33141i202010-202108
main78110-33150i201807-201901
sub78110-33151
main78110-33160i201806-202009
sub78110-33161
main78110-33161i202010-202108
main78110-33170i201902-202009
MOLDOVA SPEC
sub78110-33171
main78110-33170i201902-202009
GEORGIA SPEC
sub78110-33171
main78110-33170i201902-202009
KYRGYZ SPEC
sub78110-33171
main78110-33170i201902-202009
UKRAINE SPEC
sub78110-33171
main78110-33170i201902-202009
AZERBAIJAN SPEC
sub78110-33171
main78110-33170i201902-202009
BELARUS SPEC
sub78110-33171
main78110-33170i201902-201907
KAZAKHSTAN SPEC
sub78110-33171
main78110-33170i201902-201907
UZBEKISTAN SPEC
sub78110-33171
main78110-33171i202010-202108
KYRGYZ SPEC
main78110-33171i202010-202108
AZERBAIJAN SPEC
main78110-33171i202010-202108
BELARUS SPEC
main78110-33171i202010-202108
MOLDOVA SPEC
main78110-33171i202010-202108
GEORGIA SPEC
main78110-33171i202010-202108
UKRAINE SPEC
main78110-33171i202108
main78110-33180i201902-202009
sub78110-33181
main78110-33181i202010-202110
78118PAD, ACCELERATOR PEDAL
main78117-33020i201806-202110
9017906274
main90179-06274
9167380625
main91673-80625

6 parts on this diagram · 2 diagrams in section
