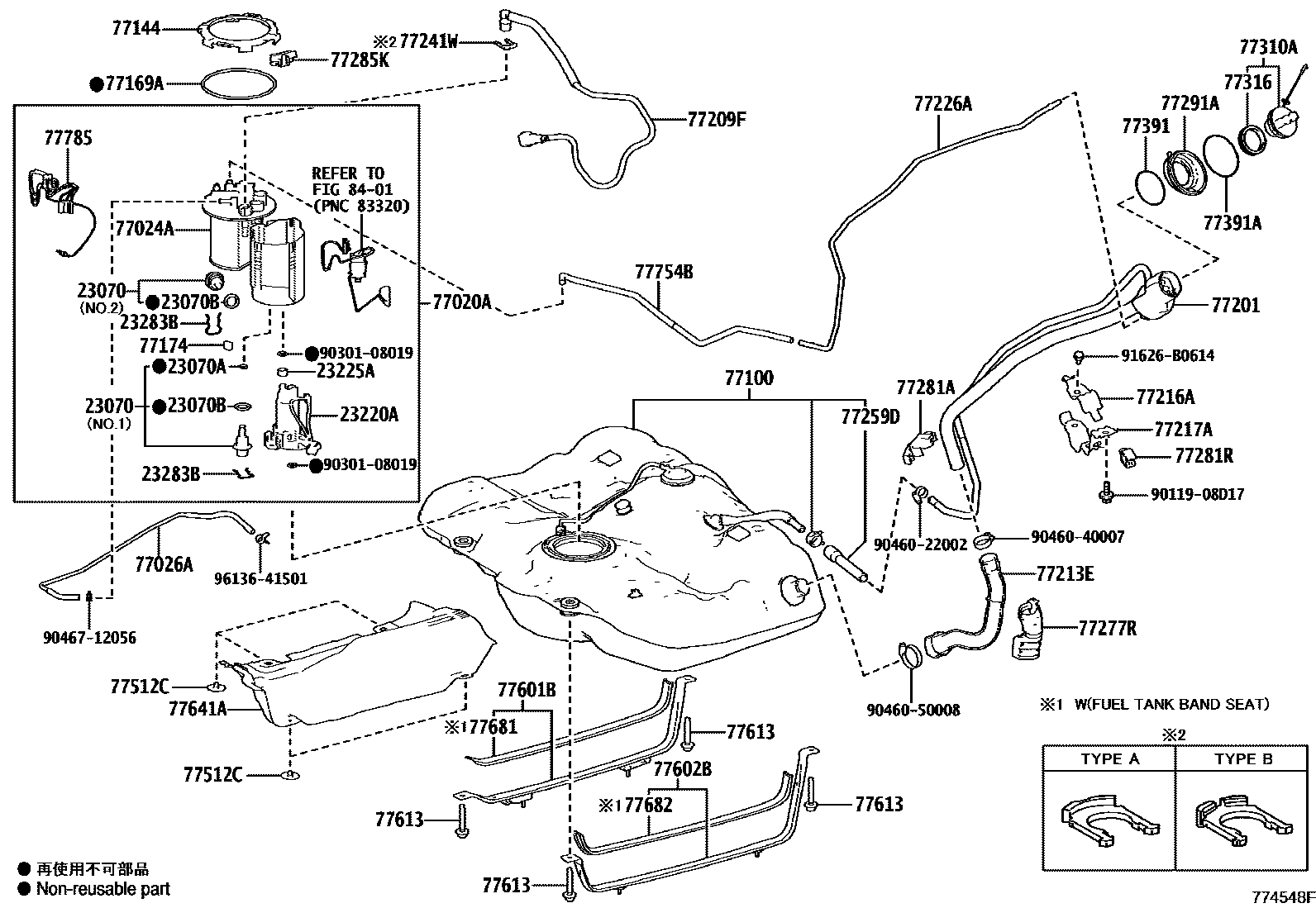

FUEL TANK & TUBE

0001 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK, CHINA6 0005 1FUEL TANK, CHINA6 0006 1FUEL TANK 0007 1FUEL TANK, CHINA5 0008 1FUEL TANK 0009 1FUEL TANK 0010 1FUEL TANK 0011 1FUEL TANK, EURO6D 0012 1FUEL TANK, EURO6D 0013 1FUEL TANK, CHINA6 0014 1FUEL TANK, CHINA6 0015 1FUEL TUBE 0016 1FUEL TUBE, CHINA6 0017 1FUEL TUBE 0018 1FUEL TUBE 0019 1FUEL TUBE, CHINA6 0020 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25AFXS,A25BFXS..AXZH10¥2,560201806-202111

NO.2:REFER ILLUST.

main23070-25020iA25AFXS..AXZH10¥2,560201912-202110

main23070-25040iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

NO.1:REFER ILLUST.

main23070-25040iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

TAIWAN SPEC,NO.1:REFER ILLUST.

main23070-31030i2GRFKS..GSZ10..EUR¥2,560201806-202111

NO.1:REFER ILLUST.

main23070-36010iA25AFXS..AXZH10¥2,560201807-202001

main23070-36010i2GRFKS..GSZ10¥2,560201806-202112

NO.2:REFER ILLUST.

main23070-36010iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN¥2,560202111-202112

TAIWAN SPEC,NO.2:REFER ILLUST.

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013i2GRFKS..GSZ10..GCC¥140201806-202209

main90301-04013i2GRFKS..GSZ10..EUR¥140202209-202210

UKRAINE SPEC

main90301-04013i2GRFKS..GSZ10..EUR¥140202209-202210

AZERBAIJAN SPEC

main90301-04013i2GRFKS..GSZ10..EUR¥140202209-202210

MOLDOVA SPEC

main90301-04013i2GRFKS..GSZ10..EUR¥140202209-202210

GEORGIA SPEC

23070BRING, O, NO.2(FOR FUEL MAIN VALVE)

main90301-15024i2GRFKS..GSZ10..EUR¥140202209-202210

GEORGIA SPEC

main90301-15024i6ARFSE..ASZ10..CHI¥140201806-202209

main90301-15024i2GRFKS..GSZ10..EUR¥140202209-202210

UKRAINE SPEC

main90301-15024i2GRFKS..GSZ10..EUR¥140202209-202210

AZERBAIJAN SPEC

main90301-15024i2GRFKS..GSZ10..EUR¥140202209-202210

MOLDOVA SPEC

23220APUMP ASSY, FUEL W/FILTER

main23220-25020i6ARFSE..ASZ10..CHI201806-202111

main23220-25030iA25AFKS..AXZA10..CHI¥23,900202111-202112

TAIWAN SPEC

main23220-31330i2GRFKS..GSZ10..EUR¥23,900201806-202108

main23220-36130i6ARFSE..ASZ10..EUR201806-202108

23225ASPACER, FUEL PUMP

main23225-21020i6ARFSE..ASZ10..EUR¥120201806-202108

main23225-31010i2GRFKS..GSZ10..EUR¥40201806-202108

main23225-31010iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN¥40202111-202112

TAIWAN SPEC

main23225-31020iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN¥40201806-202111

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iA25AFXS..AXZH10¥370201912-202110

main23283-36010i2GRFKS..GSZ10..EUR¥110201806-202108

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-33480iGSZ10..EUR201806-202110

main77020-33501iAXZA10..CHI201806-202108

main77020-33501iAXZA10,MXZA10..ARL,EUR,GCC,GEN202108-202110

TAIWAN SPEC

main77020-33510iAXZH10..ARL,EUR,GCC,GEN¥51,100201807-201912

sub77020-33511¥38,700

main77020-33511iAXZH10..IND¥38,700201912-202110

main77020-33511iAXZH10..ARL,EUR,GCC,GEN,IND¥38,700202108

TAIWAN SPEC

main77020-33531iAXZA10,MXZA10..CHI202008-202406

main77020-33532iMXZA10..CHI202407

main77020-33550iASZ10..CHI201806-202108

main77020-33571iAXZH10..CHI202008-202101

sub77020-33590

main77020-33590iAXZH10..CHI202102-202108

main77020-33590iAXZH10..CHI202108

BRAZIL SPEC

main77020-33610iAXZA10..CHI202111-202112

TAIWAN SPEC

sub77020-33501

main77020-33620iGSZ10202111-202112

sub77020-33480

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33241iAXZA10,MXZA10..CHI202008-202402

main77024-33260iGSZ10..EUR201806-202111

MARK=77020-33480

main77024-33260iGSZ10..EUR202112-202210

main77024-33321iAXZA10..CHI202108-202111

TAIWAN SPEC

main77024-33321iAXZA10,MXZA10..ARL,EUR,GCC,GEN201806-202108

main77024-33330iASZ10..CHI201806-202108

main77024-33340iAXZH10..CHI¥8,700201807-202001

main77024-33410iAXZH10..CHI202008-202101

sub77024-33430

main77024-33420iAXZH10..ARL,EUR,GCC,GEN¥6,500201912-202110

main77024-33420iAXZH10..ARL,EUR,GCC,GEN,IND¥6,500202108

TAIWAN SPEC

main77024-33430iAXZH10..CHI202108

BRAZIL SPEC

main77024-33430iAXZH10..CHI202102-202108

main77024-33490iAXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

TAIWAN SPEC

sub77024-33321

main77024-33500iGSZ10..EUR202111-202112

AZERBAIJAN SPEC,MARK=77020-33620

sub77024-33260

main77024-33500iGSZ10..EUR202111-202112

MOLDOVA SPEC,MARK=77020-33620

sub77024-33260

main77024-33500iGSZ10..EUR202111-202112

GEORGIA SPEC,MARK=77020-33620

sub77024-33260

main77024-33500iGSZ10..EUR202111-202112

MARK=77020-33620

sub77024-33260

main77024-33500iGSZ10..EUR202111-202112

UKRAINE SPEC,MARK=77020-33620

sub77024-33260

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-33030iAXZA10,MXZA10..CHI201806-202108

main77026-33040iAXZH10..CHI¥570202209

TAIWAN SPEC,PNC 77241W=TYPE B

main77026-33040iAXZH10..ARL,EUR,GCC,GEN,IND¥570202209

PNC 77241W=TYPE B

main77026-33050iAXZH10..ARL,EUR,GCC,GEN,IND¥680202108-202210

PNC 77241W=TYPE A

main77026-33050iAXZH10..ARL,EUR,GCC,GEN,IND¥680202108-202210

TAIWAN SPEC,PNC 77241W=TYPE A

main77026-33050iAXZH10..CHI¥680201807-202110

77100TANK ASSY, FUEL

main77001-33270iAXZA10..CHI202402

main77001-33270iAXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN202210

TAIWAN SPEC

main77001-33350iAXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN202108-202210

PNC 77241W=TYPE A

sub77001-33270

main77001-33350iASZ10;GSZ10..GCC;AXZA10..ARL,EUR,GCC,GEN201806-202108

sub77001-33270

main77001-33350iAXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN202108-202210

TAIWAN SPEC,PNC 77241W=TYPE A

sub77001-33270

main77001-33360iAXZA10,MXZA10..CHI202008-202108

sub77001-33460

main77001-33360iAXZA10,MXZA10..CHI202108-202208

PNC 77241W=TYPE A

sub77001-33460

main77001-33390iAXZH10..LHD..EUR¥31,600202108-202210

MOROCCO SPEC,PNC 77241W=TYPE A

sub77001-33580¥30,200

main77001-33390iAXZH10..CHI¥31,600201807-202008

INDIA SPEC

sub77001-33580¥30,200

main77001-33390iAXZH10..ARL,GCC,GEN,IND¥31,600201807-202110

sub77001-33580¥30,200

main77001-33390iAXZH10..ARL,GCC,GEN,IND¥31,600202108-202210

PNC 77241W=TYPE A

sub77001-33580¥30,200

main77001-33390iAXZH10..ARL,GCC,GEN,IND¥31,600202108-202210

CHILE SPEC,PNC 77241W=TYPE A

sub77001-33580¥30,200

main77001-33390iAXZH10..ARL,GCC,GEN,IND¥31,600202108-202210

PERU SPEC,PNC 77241W=TYPE A

sub77001-33580¥30,200

main77001-33390iAXZH10..ARL,GCC,GEN,IND¥31,600202108-202210

VIETNAM SPEC,PNC 77241W=TYPE A

sub77001-33580¥30,200

main77001-33390iAXZH10..ARL,GCC,GEN,IND¥31,600202108-202210

ARGENTINA SPEC,PNC 77241W=TYPE A

sub77001-33580¥30,200

main77001-33400iAXZH10..CHI202008-202108

sub77001-33470

main77001-33400iAXZH10..CHI202108-202210

PNC 77241W=TYPE A

sub77001-33470

main77001-33400iAXZH10..CHI202108-202210

BRAZIL SPEC,PNC 77241W=TYPE A

sub77001-33470

main77001-33410iAXZH10..CHI202108-202210

TAIWAN SPEC,PNC 77241W=TYPE A

sub77001-33310

main77001-33410iAXZH10..EUR201807-202108

sub77001-33310

main77001-33410iAXZH10..EUR202108-202210

PNC 77241W=TYPE A

sub77001-33310

main77001-33460iAXZA10..CHI202208-202402

MARK=A6

main77001-33470iAXZH10..CHI202210

BRAZIL SPEC

main77001-33550iAXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN202209

PNC 77241W=TYPE B

main77001-33550iMXZA10..CHI202209

TAIWAN SPEC,PNC 77241W=TYPE B

main77001-33560iMXZA10..CHI202210-202402

MARK = J2

main77001-33560iAXZA10,MXZA10..CHI202205-202210

PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

CHILE SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

PERU SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

VIETNAM SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

ARGENTINA SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

UKRAINE SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

AZERBAIJAN SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

MOLDOVA SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

GEORGIA SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209

MOROCCO SPEC,PNC 77241W=TYPE B

main77001-33580iAXZH10..LHD..EUR¥30,200202209-202503

PNC 77241W=TYPE B

main77001-33590iAXZH10..CHI202209

PNC 77241W=TYPE B

main77001-33590iAXZH10..LHD..EUR202209

BRAZIL SPEC,PNC 77241W=TYPE B

main77001-33600iAXZH10..CHI¥30,100202209

TAIWAN SPEC,PNC 77241W=TYPE B

main77001-33600iAXZH10..CHI¥30,100202209

PNC 77241W=TYPE B

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iGSZ10..EUR¥1,270201806-202110

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iAXZH10..LHD..EUR¥220202108

ARGENTINA SPEC

main77169-47030iAXZA10,AXZH10,MXZA10..CHI¥220201806-202503

main77169-47030iGSZ10;AXZH10..ARL,GCC,GEN¥220202108

CHILE SPEC

main77169-47030iGSZ10;AXZH10..ARL,GCC,GEN¥220202108

PERU SPEC

main77169-47030iGSZ10;AXZH10..ARL,GCC,GEN¥220202108

VIETNAM SPEC

main77169-47030iGSZ10;AXZH10..ARL,GCC,GEN¥220202108

MOROCCO SPEC

main77169-47040iAXZA10..CHI¥700202108-202210

TAIWAN SPEC,PNC 77241W=TYPE A

main77169-47040iAXZA10,AXZH10,MXZA10..CHI¥700201807-202402

main77169-47040iAXZA10..CHI¥700202108-202210

PNC 77241W=TYPE A

main77169-47040iAXZA10,MXZA10..ARL,EUR,GCC,GEN¥700202209

PNC 77241W=TYPE B

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33060iAXZA10,MXZA10..ARL,EUR,GCC,GEN201806-202111

main77174-33070iAXZA10..CHI202111-202112

TAIWAN SPEC

main77174-33070iGSZ10..EUR201806-202108

main77174-72010iASZ10..CHI¥520201806-202108

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33380iAXZH10..EUR¥10,300202108

TAIWAN SPEC

main77201-33380iAXZH10..EUR¥10,300201807-202108

main77201-33510iAXZH10,MXZA10..CHI202108

BRAZIL SPEC

main77201-33510iAXZA10..CHI202008-202402

main77201-33520iAXZA10,GSZ10,MXZA10..EUR201806-202108

main77201-33530iAXZH10..LHD..EUR¥6,200202108

ARGENTINA SPEC

main77201-33530iAXZA10,AXZH10,MXZA10..CHI¥6,200201806-202503

main77201-33530iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥6,200202108

CHILE SPEC

main77201-33530iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥6,200202108

PERU SPEC

main77201-33530iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥6,200202108

VIETNAM SPEC

main77201-33530iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥6,200202108

TAIWAN SPEC

main77201-33530iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥6,200202108

MOROCCO SPEC

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-33130iGSZ10201806-202108

main77209-33140iAXZH10..LHD..EUR¥1,570202108

VIETNAM SPEC

main77209-33140iAXZH10..CHI¥1,570201807-202008

INDIA SPEC

main77209-33140iAXZH10..LHD..EUR¥1,570202108

MOROCCO SPEC

main77209-33140iAXZH10..LHD..EUR¥1,570202108

CHILE SPEC

main77209-33140iAXZH10..LHD..EUR¥1,570202108

PERU SPEC

main77209-33140iAXZH10..LHD..EUR¥1,570202108

ARGENTINA SPEC

main77209-33140iAXZH10..ARL,GCC,GEN,IND¥1,570201807-202503

main77209-33151iMXZA10..CHI202008-202402

main77209-33160iAXZA10,MXZA10..ARL,EUR,GCC,GEN202108

TAIWAN SPEC

main77209-33160iAXZA10..ARL,EUR,GCC,GEN201806-202108

main77209-33170iAXZH10..EUR201807-201901

BEIJING SPEC

sub77209-33171¥1,010

main77209-33171iAXZH10..CHI,EUR¥1,010201902-202108

main77209-33190iASZ10201806-202108

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-33130iAXZA10..CHI¥2,200201806-202503

main77213-33130iAXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥2,200202108

CHILE SPEC

main77213-33130iAXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥2,200202108

PERU SPEC

main77213-33130iAXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥2,200202108

VIETNAM SPEC

main77213-33130iAXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥2,200202108

ARGENTINA SPEC

main77213-33130iAXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥2,200202108

TAIWAN SPEC

main77213-33130iAXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥2,200202108

MOROCCO SPEC

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33180iAXZH10..LHD..EUR202108

BRAZIL SPEC

main77216-33180iAXZA10..CHI202008-202402

main77216-33190iASZ10,AXZA10,AXZH10,GSZ10..EUR201806-202108

main77216-33190iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

TAIWAN SPEC

main77216-33200iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥310202108

MOROCCO SPEC

main77216-33200iAXZH10..LHD..EUR¥310202108

CHILE SPEC

main77216-33200iAXZH10..LHD..EUR¥310202108

PERU SPEC

main77216-33200iAXZH10..LHD..EUR¥310202108

VIETNAM SPEC

main77216-33200iAXZH10..LHD..EUR¥310202108

ARGENTINA SPEC

main77216-33200iAXZH10..LHD..EUR¥310202108

TAIWAN SPEC

main77216-33200iASZ10,GSZ10..CHI,GCC;AXZA10,AXZH10..ARL,GCC,GEN,IND¥310201806-202503

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33120iAXZA10,AXZH10,MXZA10..CHI202008-202402

main77217-33120iAXZH10,MXZA10..CHI202108

BRAZIL SPEC

main77217-33130iASZ10,AXZA10,AXZH10,GSZ10..EUR201806-202108

main77217-33130iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

TAIWAN SPEC

main77217-33140iAXZH10..LHD..EUR¥700202108

VIETNAM SPEC

main77217-33140iAXZA10,AXZH10,MXZA10..CHI¥700201806-202503

main77217-33140iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥700202108

CHILE SPEC

main77217-33140iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥700202108

PERU SPEC

main77217-33140iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥700202108

ARGENTINA SPEC

main77217-33140iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥700202108

TAIWAN SPEC

main77217-33140iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥700202108

MOROCCO SPEC

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33180iAXZA10,MXZA10..CHI202008-202402

main77226-33200iAXZH10..CHI202108

TAIWAN SPEC

main77226-33200iASZ10,AXZA10,AXZH10,GSZ10..EUR201806-202108

main77226-33210iAXZH10..LHD..EUR¥1,540202108

MOROCCO SPEC

main77226-33210iAXZA10,AXZH10,MXZA10..CHI¥1,540201806-202503

main77226-33210iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥1,540202108

CHILE SPEC

main77226-33210iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥1,540202108

PERU SPEC

main77226-33210iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥1,540202108

VIETNAM SPEC

main77226-33210iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥1,540202108

ARGENTINA SPEC

main77226-33210iAXZA10,AXZH10,GSZ10..ARL,GCC,GEN¥1,540202108

TAIWAN SPEC

main77226-33220iAXZH10..LHD..EUR202108

BRAZIL SPEC

main77226-33220iAXZH10..CHI202008-202108

77241WCLIP, TUBE JOINT

main77241-33011iGSZ10..EUR¥80201806-202110

main77241-33011iAXZH10..CHI¥80202008-202108

TAIWAN SPEC

main77241-33011iAXZA10,GSZ10,MXZA10;AXZH10..ARL,EUR,GCC,GEN,IND¥80202108-202210

TYPE A:REFER ILLUST.

main77241-33011iAXZA10,GSZ10,MXZA10;AXZH10..ARL,EUR,GCC,GEN,IND¥80202108-202210

TAIWAN SPEC,TYPE A:REFER ILLUST.

main77241-33011iAXZA10,GSZ10,MXZA10;AXZH10..ARL,EUR,GCC,GEN,IND¥80202108-202210

BRAZIL SPEC,TYPE A:REFER ILLUST.

main77241-60550iAXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND¥50202209

BRAZIL SPEC,TYPE B:REFER ILLUST.

main77241-60550iAXZA10,MXZA10..CHI¥50202205

TYPE B:REFER ILLUST.

main77241-60550iAXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND¥50202209

TAIWAN SPEC,TYPE B:REFER ILLUST.

77259DHOSE, FUEL, NO.1

main77259-33080iGSZ10..EUR202108-202503

main77259-33080iGSZ10..GCC;AXZA10,MXZA10..ARL,EUR,GCC,GEN202108

TAIWAN SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

CHILE SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

PERU SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

VIETNAM SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

ARGENTINA SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

UKRAINE SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

AZERBAIJAN SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

MOLDOVA SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

GEORGIA SPEC

main77259-33080iGSZ10..EUR;AXZH10..ARL,GCC,GEN202210

MOROCCO SPEC

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33110iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10¥720201806-202110

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33080iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10¥320201806-202110

77281ACLAMP, FUEL FILLER PIPE

main77281-33050iAXZH10,MXZA10..CHI¥790202108

TAIWAN SPEC

main77281-33050iASZ10,GSZ10;AXZA10,AXZH10..ARL,EUR,GCC,GEN,IND¥790201806-202110

main77281-33070iAXZH10..LHD..EUR202108

BRAZIL SPEC

main77281-33070iAXZA10,AXZH10,MXZA10..CHI202008-202402

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-30110iAXZA10,AXZH10,MXZA10..CHI¥190201806-202110

main77281-30110iAXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND¥190202108

TAIWAN SPEC

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iGSZ10..EUR¥200201806-202110

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10¥1,040201806-202110

77310ACAP ASSY, FUEL TANK

main77300-11010iAXZH10..CHI202008-202108

main77300-12020iAXZH10..LHD..EUR¥1,660202108

CHILE SPEC

main77300-12020iAXZA10,AXZH10,MXZA10..CHI¥1,660201806-202110

main77300-12020iAXZH10..LHD..EUR¥1,660202108

ARGENTINA SPEC

main77300-12020iAXZH10..LHD..EUR¥1,660202108

MOROCCO SPEC

main77300-12020iAXZH10..LHD..EUR¥1,660202108

PERU SPEC

main77300-12020iAXZH10..LHD..EUR¥1,660202108

VIETNAM SPEC

main77300-33080iAXZA10,MXZA10..CHI202008-202402

main77300-48020iAXZH10..EUR¥1,960202108

TAIWAN SPEC

main77300-48020iAXZH10..EUR¥1,960201807-202108

77316GASKET, FUEL TANK CAP

main77316-52040iAXZH10..LHD..EUR¥230202108

CHILE SPEC

main77316-52040iAXZA10,AXZH10,MXZA10..CHI¥230201806-202110

main77316-52040iAXZH10..ARL,GCC,GEN,IND;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥230202108

PERU SPEC

main77316-52040iAXZH10..ARL,GCC,GEN,IND;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥230202108

VIETNAM SPEC

main77316-52040iAXZH10..ARL,GCC,GEN,IND;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥230202108

ARGENTINA SPEC

main77316-52040iAXZH10..ARL,GCC,GEN,IND;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN¥230202108

MOROCCO SPEC

main77316-75020iAXZH10..EUR¥200201807-202108

77391RING, FUEL INLET BOX

main77391-12020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10¥180201806-202110

77391ARING, FUEL INLET BOX

main77391-20040iASZ10,AXZA10,AXZH10,GSZ10,MXZA10¥190201806-201912

main77391-33060iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10¥200202001-202110

77512CBRACKET, FUEL TANK

main77512-35140iASZ10,AXZA10,GSZ10,MXZA10¥230201806-202110

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33150iASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-202108

main77601-33170iAXZA10,GSZ10,MXZA10..EUR201806-202108

main77601-33180iAXZH10¥1,540201807-202110

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33160iAXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-202108

main77602-33180iAXZA10,GSZ10,MXZA10..EUR201806-202108

main77602-33190iAXZH10¥1,540201807-202110

77613BOLT, FUEL TANK BAND SET

main90119-10995iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10¥190201806-202110

77641APROTECTOR, FUEL TANK, NO.1

main77606-33030iAXZH10¥2,000201807-202110

main77641-33030iAXZA10,GSZ10,MXZA10201806-202108

77681SEAT, FUEL TANK BAND, RH

main77682-47020iAXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN¥620201806-202108

77682SEAT, FUEL TANK BAND, LH

main77682-75010iASZ10..CHI¥1,800201806-202108

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-33070iAXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN202108

TAIWAN SPEC

main77754-33070iAXZA10,MXZA10..CHI201806-202108

main77754-33080iAXZH10..ARL,EUR,GCC,GEN,IND¥1,270202108

TAIWAN SPEC

main77754-33080iAXZH10..CHI¥1,270201807-202110

77785HARNESS, FUEL PUMP

main77785-33140iAXZA10,MXZA10..CHI201806-202111

main77785-33150iAXZA10,MXZA10..ARL,EUR,GCC,GEN¥860202111-202112

TAIWAN SPEC

main77785-33150iGSZ10¥860201806-202108

main77785-33180iAXZH10..CHI¥870201807-202110

main77785-33180iAXZH10..CHI¥870202108

TAIWAN SPEC

main77785-42070iAXZH10..LHD..EUR¥870202108

BRAZIL SPEC

main77785-42070iAXZH10..CHI¥870202008-202108

main77785-72020iASZ10..CHI¥950201806-202108

8401

9011908D17

main90119-08D17¥100

9030108019

main90301-08019¥200

9046022002

main90460-22002¥530

9046040007

main90460-40007¥190

9046050008

main90460-50008¥240

9046712056

main90467-12056¥70

91626B0614

main91626-B0614¥60

9613641501

main96136-41501¥70

49 parts on this diagram · 19 diagrams in section
