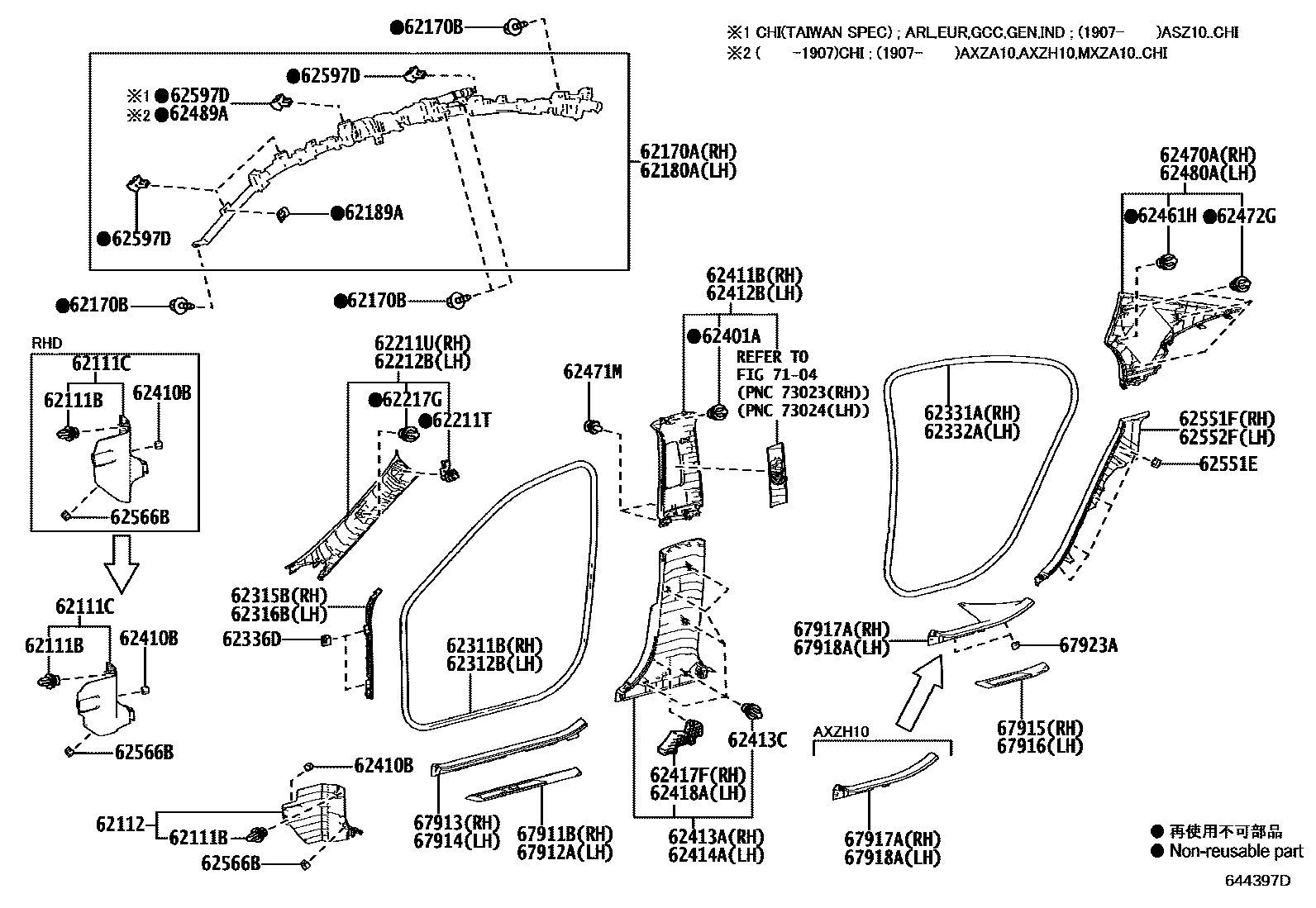

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
TAIWAN SPEC
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
TAIWAN SPEC
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
62212BGARNISH ASSY, FRONT PILLAR, LH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62336DCLAMP
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62410BCLIP
62411BGARNISH, CENTER PILLAR, UPPER RH
L WHITE,TRIM1#,21,22,23
L WHITE,TRIM1#,20,21,22,23
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
L WHITE,TRIM0#,21,22,23,6#
L WHITE,TRIM0#,2#,6#
L WHITE,TRIM0#,20,21,22,23,6#
L WHITE,TRIM2#
L WHITE,TRIM1#,21,22,23
L WHITE,TRIM1#,20,21,22,23
L WHITE,TRIM1#,2#
BLACK,TRIM24,25,26,3#,7#
BLACK,TRIM24,25,26,3#,40,41,42,43,7#
BLACK,TRIM3#,7#
BLACK,TRIM3#,40,41,43,7#
BLACK,TRIM7#
BLACK,TRIM24,25,26,7#
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM40,41,43,46
HAZEL,TRIM40,41,42,43,44,45,46
HAZEL,TRIM4#
62412BGARNISH, CENTER PILLAR, UPPER LH
L WHITE,TRIM1#,21,22,23
L WHITE,TRIM1#,2#
L WHITE,TRIM1#,20,21,22,23
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
L WHITE,TRIM0#,20,21,22,23,6#
L WHITE,TRIM0#,21,22,23,6#
L WHITE,TRIM0#,2#,6#
L WHITE,TRIM1#,21,22,23
L WHITE,TRIM1#,20,21,22,23
L WHITE,TRIM1#,2#
L WHITE,TRIM2#
BLACK,TRIM24,25,26,7#
BLACK,TRIM24,25,26,3#,7#
BLACK,TRIM24,25,26,3#,40,41,42,43,7#
BLACK,TRIM3#,7#
BLACK,TRIM3#,40,41,43,7#
BLACK,TRIM7#
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM40,41,42,43,44,45,46
HAZEL,TRIM4#
HAZEL,TRIM40,41,43,46
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62417FPAD, CENTER PILLAR GARNISH, RH
62418APAD, CENTER PILLAR GARNISH, LH
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LWHITE,TRIM1#,21,22,23
LWHITE,TRIM1#,20,21,22,23
LWHITE,TRIM0#,20,21,22,23,6#
LWHITE,TRIM1#,2#
LWHITE,TRIM2#,6#
LWHITE,TRIM0#,21,22,23,6#
LWHITE,TRIM0#,2#,6#
BLACK,TRIM24,25,26,7#
BLACK,TRIM24,25
BLACK,TRIM24,25,26,3#,40,41,42,43,7#
BLACK,TRIM3#,7#
BLACK,TRIM3#,40,41,43,7#
BLACK,TRIM7#
BLACK,TRIM24,25,26,3#,7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM40,41,42,43,44,45,46
HAZEL,TRIM40,41,43,46
HAZEL,TRIM4#
62471MCLIP
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LWHITE,TRIM1#,21,22,23
LWHITE,TRIM1#,2#
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
LWHITE,TRIM0#,20,21,22,23,6#
LWHITE,TRIM0#,2#,6#
LWHITE,TRIM0#,21,22,23,6#
LWHITE,TRIM1#,21,22,23
LWHITE,TRIM1#,20,21,22,23
LWHITE,TRIM1#,2#
LWHITE,TRIM2#
BLACK,TRIM24,25,26,3#,40,41,42,43,7#
BLACK,TRIM3#,7#
BLACK,TRIM3#,40,41,43,7#
BLACK,TRIM7#
BLACK,TRIM24,25,26,7#
BLACK,TRIM24,25,26,3#,7#
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM40,41,43,46
HAZEL,TRIM40,41,42,43,44,45,46
HAZEL,TRIM4#
62489ACLIP, ROOF SIDE INNER GARNISH
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62597DCLIP
TAIWAN SPEC
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
LUXURY PACKAGE,BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
PHILIPPINE SPEC&LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
PHILIPPINE SPEC&ULTRA LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
ULTRA LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
ULTRA LUXURY PACKAGE,BLACK,TRIM0#,2#,4#,6#,7#
F SPORT,BLACK,TRIM0#,2#,4#,6#,7#
F SPORT,BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
PHILIPPINE SPEC,BLACK,TRIM0#,2#,4#,6#,7#
PHILIPPINE SPEC,BLACK,TRIM1#,2#
PHILIPPINE SPEC,NOBLE BROWN,TRIM5#,6#
NOBLE BROWN,TRIM5#,6#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
LUXURY PACKAGE,BLACK,TRIM0#,2#,4#,6#,7#
F SPORT,BLACK,TRIM0#,2#,4#,6#,7#
F SPORT,BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
PHILIPPINE SPEC&LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
PHILIPPINE SPEC&ULTRA LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
ULTRA LUXURY PACKAGE,BLACK,TRIM0#,2#,3#,4#,6#,7#
ULTRA LUXURY PACKAGE,BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
PHILIPPINE SPEC,BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
PHILIPPINE SPEC,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
PHILIPPINE SPEC,NOBLE BROWN,TRIM5#,6#
NOBLE BROWN,TRIM5#,6#
67917APLATE, REAR DOOR SCUFF, RH
PHILIPPINE SPEC&ULTRA LUXURY PACKAGE,BLACK,TRIM1#,2#
PHILIPPINE SPEC&LUXURY PACKAGE,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
PHILIPPINE SPEC&ULTRA LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
NOBLE BROWN,TRIM5#,6#
PHILIPPINE SPEC&LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM1#,2#
PHILIPPINE SPEC&LUXURY PACKAGE,BLACK,TRIM1#,2#
PHILIPPINE SPEC&ULTRA LUXURY PACKAGE,BLACK,TRIM1#,2#
PHILIPPINE SPEC&LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
NOBLE BROWN,TRIM5#,6#
PHILIPPINE SPEC&ULTRA LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,6#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
48 parts on this diagram · 1 diagram in section
