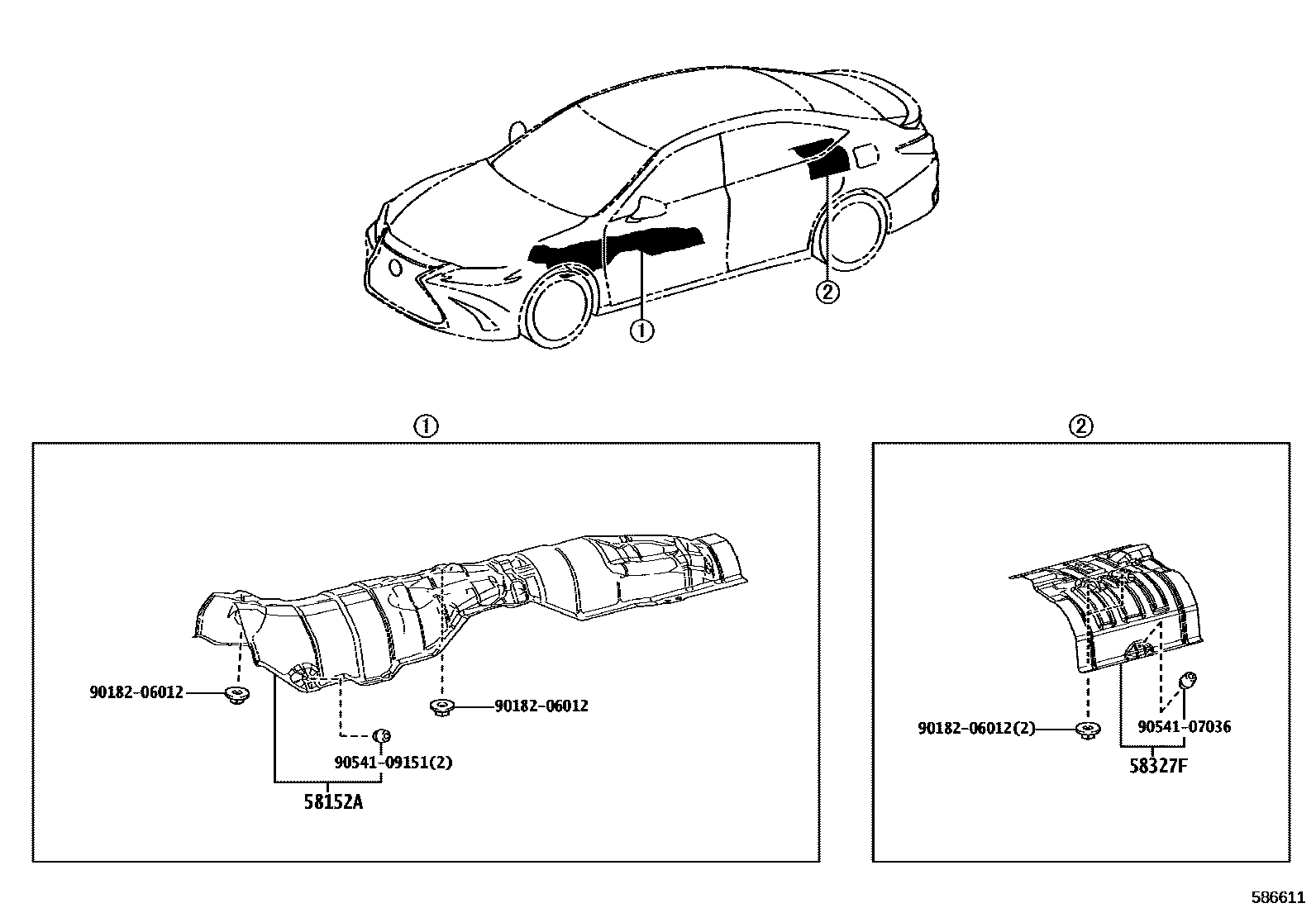

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-33090iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202212

sub58152-33100

main58152-33100iAXZA10,AXZH10,GSZ10,MXZA10202301

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-33080iASZ10..CHI201806-202108

9018206012

main90182-06012

9054107036

main90541-07036

9054109151

main90541-09151

5 parts on this diagram · 4 diagrams in section
