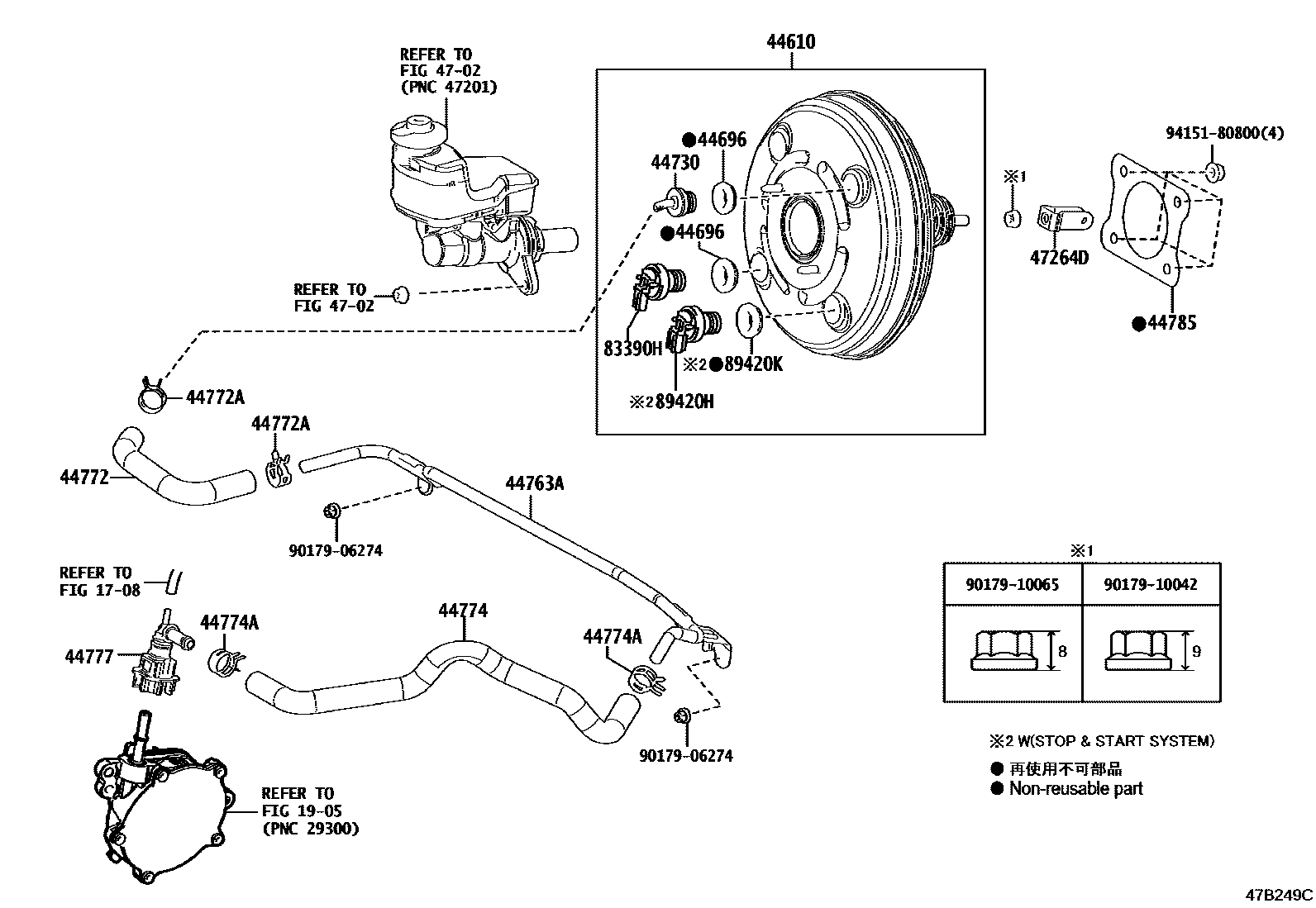

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1708

1905

44610BOOSTER ASSY, BRAKE

main44610-33A30iGSZ10..GCC201806-202108

PHILIPPINE SPEC

main44610-33B40iGSZ10..GCC201806-202108

main44610-33B70iASZ10..CHI201806-202108

main44610-33C10iAXZA10..RHD201806-202108

main44610-33C50iGSZ10..GCC202108

main44610-33C80iGSZ10..EUR;AXZA10..GCC202108

CAMBODIA SPEC

main44610-33C90iAXZA10,MXZA10..CHI,EUR202108

main44610-33D00iAXZA10..RHD202108

44696GROMMET, CHECK VALVE

main90480-24439iASZ10..CHI201806-202108

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iAXZA10..RHD201806-202108

main44730-20080iASZ10,GSZ10..EUR;AXZA10,MXZA10..LHD201806-202108

PHILIPPINE SPEC

main44730-20080iGSZ10..EUR;AXZA10,MXZA10..LHD202108

CAMBODIA SPEC

main44730-20080iASZ10..CHI201806-202007

main44730-22150iGSZ10..GCC201806-202108

main44730-30060iGSZ10..GCC202108

44763ATUBE, HOSE TO HOSE, NO.1

main44763-33120iAXZA10..RHD201806-202108

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33240iAXZA10..RHD201806-202108

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iAXZA10..RHD201806-202108

44774HOSE, UNION TO CONNECTOR TUBE

main44774-33140iAXZA10..RHD201806-202108

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iAXZA10..RHD201806-202108

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXZA10,MXZA10201806-202108

44785GASKET, BRAKE BOOSTER

main44785-12040iASZ10,AXZA10,GSZ10,MXZA10201806-202108

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iASZ10..CHI201806-202108

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iASZ10..CHI201806-202108

89420HSENSOR ASSY, VACUUM

main89421-52020iASZ10..CHI201806-202108

89420KGROMMET, VACUUM SENSOR

main90480-24439iASZ10..CHI201806-202108

9017906274

main90179-06274

9017910042

main90179-10042

9017910065

main90179-10065

9415180800

main94151-80800

21 parts on this diagram · 4 diagrams in section
