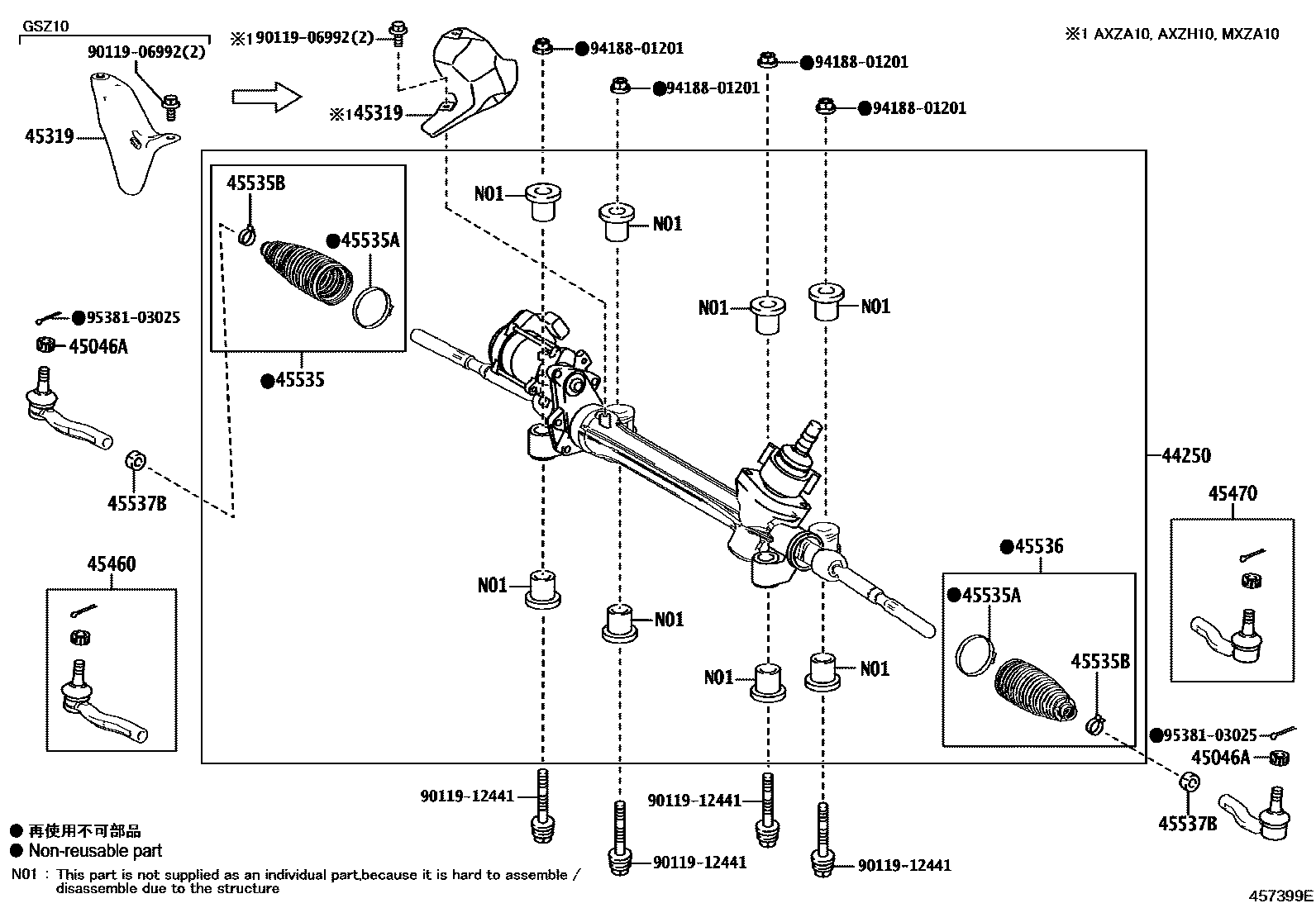

FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
ULTRA LUXURY PACKAGE
TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)
ULTRA LUXURY PACKAGE&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)
LUXURY PACKAGE&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)
LUXURY PACKAGE&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)
TIRE & DISC WHEEL-215/55R17, SUMMER TIRE, ALUMINUM
LUXURY PACKAGE&TIRE & DISC WHEEL-*591
PREMIUM PACKAGE&TIRE & DISC WHEEL-*591
ULTRA LUXURY PACKAGE&TIRE & DISC WHEEL-*592
LUXURY PACKAGE&TIRE & DISC WHEEL-*592
PREMIUM PACKAGE&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)
LUXURY PACKAGE&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)
LUXURY PACKAGE&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)
ULTRA LUXURY PACKAGE&TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(SILVER)
TIRE & DISC WHEEL-235/45R18, SUMMER TIRE, ALUMI(GRAY)
TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMINUM
45046ANUT, CASTLE(FOR TIE ROD END)
45319INSULATOR, STEERING GEAR HEAT
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537BNUT, RACK END LOCK
9011906992
9011912441
9418801201
9538103025
14 parts on this diagram · 2 diagrams in section
