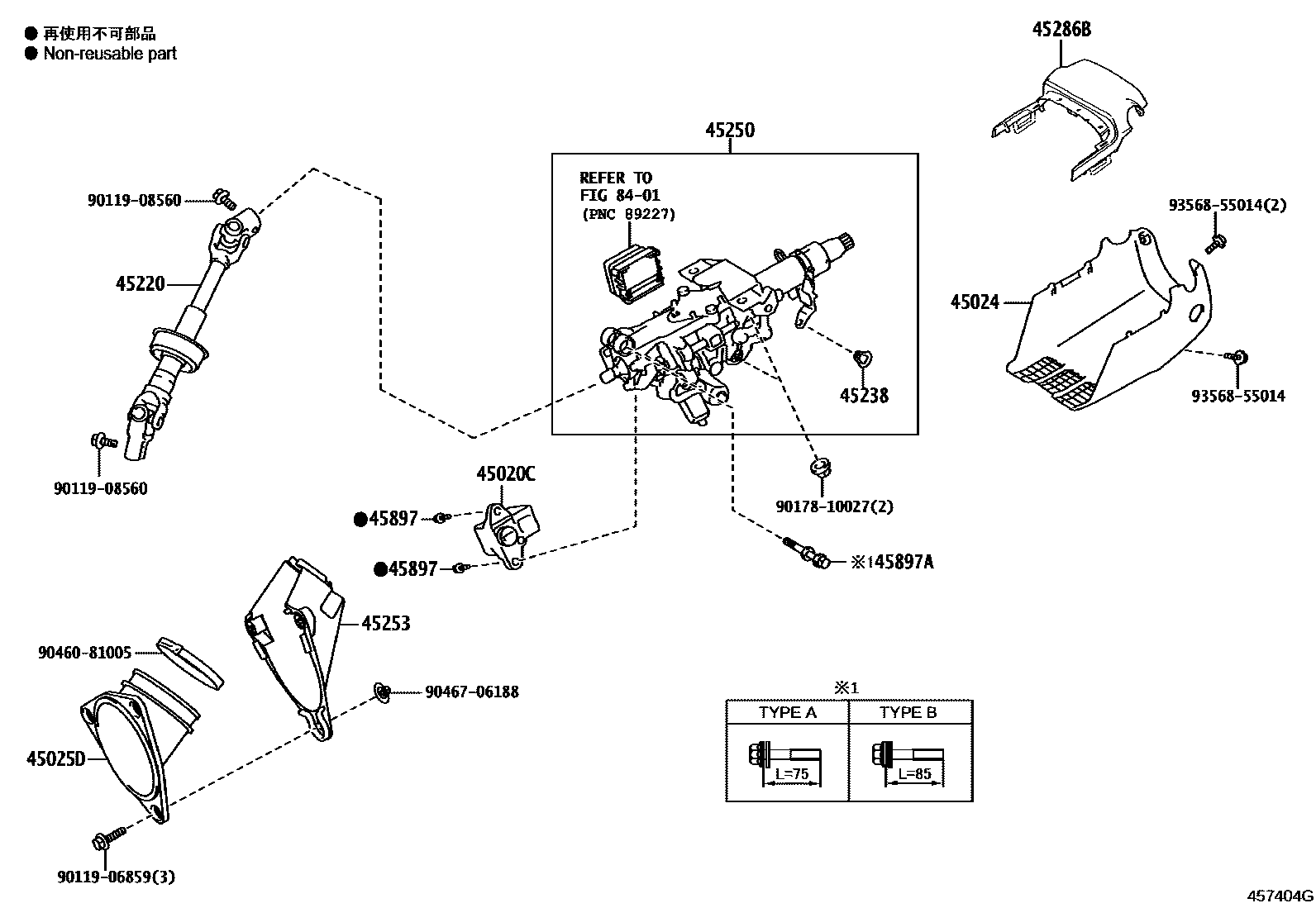

STEERING COLUMN & SHAFT

0001 1ELECTRIC TILT & TELESCOPIC 0002 1MANUAL TILT & TELESCOPIC 0003 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33250iASZ10,AXZA10,AXZH10,GSZ10..EUR,IND201806-202210

main45020-33250iAXZH10..ARL;AXZH10..LHD..EUR202108-202208

SOUTH AFRICA SPEC

main45020-33250iAXZH10..ARL;AXZH10..LHD..EUR202108-202208

F SPORT

main45020-33250iGSZ10..EUR202108

GEORGIA SPEC&ULTRA LUXURY PACKAGE

main45020-33250iAXZH10..RHD..EUR202108-202402

PANAMA SPEC

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

PERU SPEC

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

VIETNAM SPEC

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

UKRAINE SPEC

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

AZERBAIJAN SPEC

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

AZERBAIJAN SPEC&F SPORT

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

MOLDOVA SPEC

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

GEORGIA SPEC

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

GEORGIA SPEC&F SPORT

main45020-33250iAXZA10,GSZ10,MXZA10..EUR202108

AZERBAIJAN SPEC&ULTRA LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR202108-202208

VIETNAM SPEC&ULTRA LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR202108-202208

SLOVENIA SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

ICELAND SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

CANARY ISLANDS SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

*552

main45020-33260iAXZH10..LHD..EUR202108-202208

SWITZERLAND SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

TURKEY SPEC

main45020-33260iAXZH10..LHD..EUR201806-202208

UKRAINE SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

UKRAINE SPEC&LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR202108-202208

UKRAINE SPEC&ULTRA LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR202108-202208

UKRAINE SPEC&F SPORT

main45020-33260iAXZH10..LHD..EUR202108-202208

ROMANIA SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

BULGARIA SPEC

main45020-33260iAXZH10..LHD..EUR201806-202208

AZERBAIJAN SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

AZERBAIJAN SPEC&LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR201806-202208

KAZAKHSTAN SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

ISRAEL SPEC

main45020-33260iAXZH10..LHD..EUR201806-202208

MOLDOVA SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

MOLDOVA SPEC&LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR201806-202208

GEORGIA SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

GEORGIA SPEC&LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR201806-202208

KYRGYZ SPEC

main45020-33260iAXZH10..LHD..EUR202108-202208

MOROCCO SPEC&LUXURY PACKAGE

main45020-33260iAXZH10..LHD..EUR202108-202208

MACEDONIA SPEC

main45020-33260iAXZA10..EUR202108-202208

PORTUGAL, GREECE SPEC

main45020-33260iAXZA10..EUR202108-202208

FRANCE SPEC

main45020-33260iAXZA10..EUR202108-202208

VIETNAM SPEC

main45020-33260iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-202108

BELARUS SPEC

main45020-42270iAXZA10..ARL202108-202208

main45020-60880iAXZH10..RHD..EUR202402

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-11010-C1iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

BLACK,TRIM0#,2#,4#,6#,7#

main45024-11010-C1iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main45024-11010-C1iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,4#,6#,7#

main45024-11010-C1iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

F SPORT,BLACK,TRIM0#,2#,4#,6#,7#

main45024-11010-C1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

BLACK,TRIM1#,2#

main45024-11010-C1iAXZH10..IND202110

BLACK,TRIM2#,4#,6#,7#

main45024-11010-E0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

NOBLE BROWN,TRIM5#,6#

main45024-33250-C0iAXZA10..ARL202108

BLACK,TRIM0#,2#,4#,6#,7#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33150iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33350iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201806-201908

sub45220-33351

main45220-33351iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201909-202011

sub45220-33352

main45220-33352iAXZA10,AXZH10,GSZ10,MXZA10..LHD202012-202108

main45220-33360iAXZA10,AXZH10..RHD201806-201908

sub45220-33361

main45220-33361iAXZA10,AXZH10..RHD201909-202011

sub45220-33362

main45220-33362iAXZA10,AXZH10..RHD202012-202110

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXZH10;AXZA10,GSZ10,MXZA10..CHI,EUR,GCC,GEN202108

SOUTH AFRICA SPEC

main45238-11010iAXZH10;AXZA10,GSZ10,MXZA10..CHI,EUR,GCC,GEN202108

F SPORT

main45238-11010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

main45238-52010iAXZA10..ARL202108

45250COLUMN ASSY, STEERING

main45250-33D40iAXZA10..ARL202108

main45250-33D50iASZ10,AXZA10,AXZH10,MXZA10..CHI201806-202006

sub45250-48420

main45250-33D60iASZ10,AXZA10,AXZH10,GSZ10..ARL,EUR,GCC,GEN,IND201806-202005

sub45250-48430

main45250-46050iGSZ10..EUR202208

F SPORT

main45250-46050iAXZA10..EUR202208

AZERBAIJAN SPEC&ULTRA LUXURY PACKAGE

main45250-46050iAXZA10..EUR202208

GEORGIA SPEC&ULTRA LUXURY PACKAGE

main45250-46050iAXZA10..ARL202208

PERU SPEC

main45250-46050iAXZA10..ARL202208

VIETNAM SPEC

main45250-46050iAXZA10..ARL202208

SOUTH AFRICA SPEC

main45250-46050iAXZA10..ARL202208

UKRAINE SPEC

main45250-46050iAXZA10..ARL202208

AZERBAIJAN SPEC

main45250-46050iAXZA10..ARL202208

AZERBAIJAN SPEC&F SPORT

main45250-46050iAXZA10..ARL202208

MOLDOVA SPEC

main45250-46050iAXZA10..ARL202208

GEORGIA SPEC

main45250-46050iAXZA10..ARL202208

GEORGIA SPEC&F SPORT

main45250-46050iAXZH10..IND202210

main45250-46060iAXZA10,AXZH10,MXZA10..CHI202208

main45250-48420iAXZA10,AXZH10,MXZA10..CHI202007-202208

main45250-48430iAXZA10..ARL202108-202208

F SPORT

main45250-48430iAXZH10..IND202006-202210

main45250-48430iAXZH10..LHD..EUR;AXZH10..ARL,GCC,GEN;AXZA10,GSZ10..GCC,GEN202108-202208

SOUTH AFRICA SPEC

45253COVER, STEERING COLUMN HOLE

main45253-33100iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

45286BCOVER, STEERING COLUMN, UPR

main45286-11010-C1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

BLACK,TRIM1#,2#

main45286-11010-C1iAXZH10..ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10..CHI,GCC,GEN202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main45286-11010-C1iAXZH10..IND202110

BLACK,TRIM2#,4#,6#,7#

main45286-11010-C1iAXZH10..ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10..CHI,GCC,GEN202108

BLACK,TRIM0#,2#,4#,6#,7#

main45286-11010-E0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

NOBLE BROWN,TRIM5#,6#

45897BOLT, STEERING LOCK SET

main45897-12020iGSZ10..EUR202108

MOLDOVA SPEC

main45897-12020iGSZ10..EUR202108

GEORGIA SPEC

main45897-12020iGSZ10..EUR202108

GEORGIA SPEC&F SPORT

main45897-12020iGSZ10..EUR202108

AZERBAIJAN SPEC&ULTRA LUXURY PACKAGE

main45897-12020iGSZ10..EUR202108

GEORGIA SPEC&ULTRA LUXURY PACKAGE

main45897-12020iGSZ10..EUR202108

PERU SPEC

main45897-12020iGSZ10..EUR202108

UKRAINE SPEC

main45897-12020iGSZ10..EUR202108

AZERBAIJAN SPEC

main45897-12020iGSZ10..EUR202108

AZERBAIJAN SPEC&F SPORT

main45897-12020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202210

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

TYPE A:REFER ILLUST.

main90119-10981iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

TYPE B:REFER ILLUST.

8401

9011906859

main90119-06859

9011908560

main90119-08560

9017810027

main90178-10027

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

17 parts on this diagram · 3 diagrams in section
