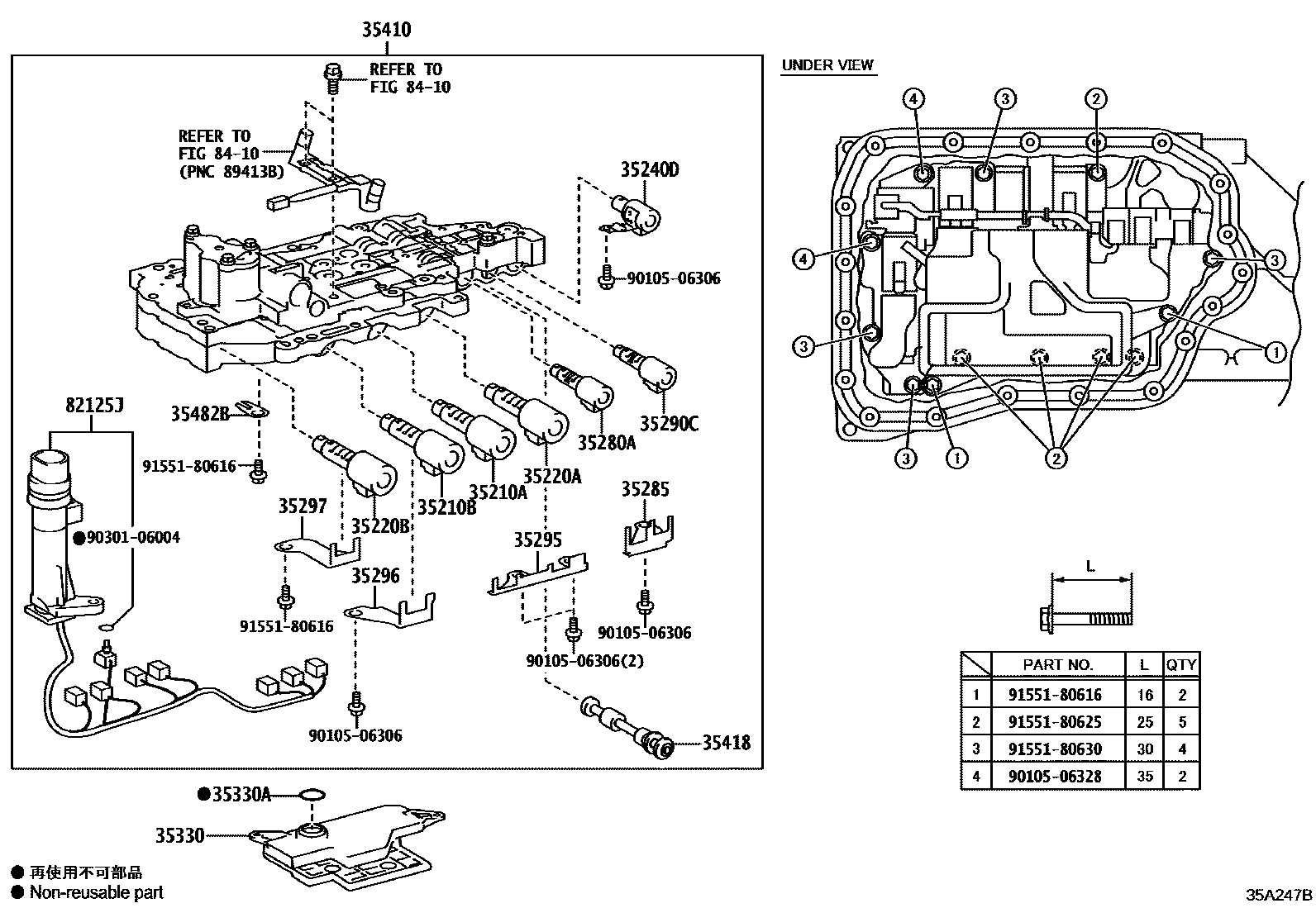

VALVE BODY & OIL STRAINER (ATM)

0001 1U761E 0002 1U761E 0003 1UB80E W(STOP&START SYSTEM) 0004 1UA80E,UB80E W/O(STOP&START SY

35210AVALVE, SOLENOID(SL1)

main35210-48020iAXZA10,GSZ10¥7,000201806-202108

main35210-48020iGSZ10¥7,000201806-202004

TOYOTA:REFER 35-01

main35210-48020iGSZ10¥7,000202006-202108

AISIN AW:REFER 35-01

main35210-48030iASZ10¥7,700201806-202108

35210BVALVE, SOLENOID(SL3)

main35210-48020iGSZ10¥7,000202006-202108

AISIN AW:REFER 35-01

main35210-48020iGSZ10¥7,000201806-202004

TOYOTA:REFER 35-01

main35210-48020iAXZA10¥7,000201806-202108

main35210-48030iASZ10¥7,700201806-202108

35220AVALVE, SOLENOID(SL2)

main35220-33100iASZ10..CHI201806-202108

35220BVALVE, SOLENOID(SL4)

main35220-33050iASZ10..CHI201806-202108

35240DVALVE, SOLENOID(SL)

main35240-48020iGSZ10¥7,000202006-202108

AISIN AW:REFER 35-01

main35240-48020iGSZ10¥7,000201806-202004

TOYOTA:REFER 35-01

main35240-48020iAXZA10¥7,000201806-202108

main35240-73010iASZ10¥11,100201806-202108

35280AVALVE, SOLENOID(SLU)

main35280-33040iASZ10201806-202108

main35280-48030iAXZA10¥7,000201806-202108

main35280-48030iGSZ10¥7,000202006-202108

AISIN AW:REFER 35-01

main35280-48030iGSZ10¥7,000201806-202004

TOYOTA:REFER 35-01

35285PLATE, SOLENOID LOCK

main35285-33070iASZ10¥360201806-202108

main35285-48030iGSZ10¥500201806-202004

TOYOTA:REFER 35-01

main35285-48030iAXZA10¥500201806-202108

main35285-48030iGSZ10¥500202006-202108

AISIN AW:REFER 35-01

35290CVALVE, SOLENOID(SLT)

main35290-48020iASZ10¥7,700201806-202108

main35290-48030iGSZ10¥7,000201806-202004

TOYOTA:REFER 35-01

main35290-48030iAXZA10¥7,000201806-202108

main35290-48030iGSZ10¥7,000202006-202108

AISIN AW:REFER 35-01

35295PLATE, SOLENOID LOCK, NO.2

main35295-33050iASZ10..CHI¥510201806-202108

35296PLATE, SOLENOID LOCK, NO.3

main35296-33050iASZ10..CHI¥340201806-202108

35297PLATE, SOLENOID LOCK, NO.4

main35297-33030iASZ10..CHI201806-202108

35330STRAINER ASSY, VALVE BODY OIL

main35330-73021iASZ10..CHI¥3,290201806-202108

35330ARING, O (FOR OIL STRAINER)

main90301-27015iASZ10..CHI¥190201806-202108

35410BODY ASSY, TRANSMISSION VALVE

main35410-33270iASZ10201806-202108

main35410-48070iAXZA10..GCC201806-202403

sub35410-48090

main35410-48070iGSZ10201806-202004

TOYOTA:REFER 35-01

sub35410-48090

main35410-48080iAXZA10..ARL,CHI,EUR,GEN¥80,200201806-202004

sub35410-48100¥72,700

main35410-48090iAXZA10..GCC202108

main35410-48090iGSZ10202006-202108

AISIN AW:REFER 35-01

main35410-48100iAXZA10..ARL,CHI,EUR,GEN¥72,700202004-202108

35418VALVE, MANUAL

main35418-33030iASZ10..EUR201806-202108

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iGSZ10¥170201806-202004

TOYOTA:REFER 35-01

main35482-73010iAXZA10¥170201806-202108

main35482-73010iGSZ10¥170202006-202107

AISIN AW:REFER 35-01

82125JWIRE, TRANSMISSION

main82125-33170iGSZ10;AXZA10..GCC201806-201808

sub82125-33171

main82125-33171iGSZ10;AXZA10..GCC201808-202108

main82125-33210iAXZA10..ARL,CHI,EUR,GEN201806-201808

sub82125-33211¥2,140

main82125-33211iAXZA10..ARL,CHI,EUR,GEN¥2,140201808-202108

main82125-73010iASZ10¥4,250201806-201808

sub82125-73011¥3,540

main82125-73011iASZ10¥3,540201808-202108

8410

9010506306

main90105-06306¥80

9010506328

main90105-06328¥70

9030106004

main90301-06004¥120

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180630

main91551-80630¥60

24 parts on this diagram · 4 diagrams in section
