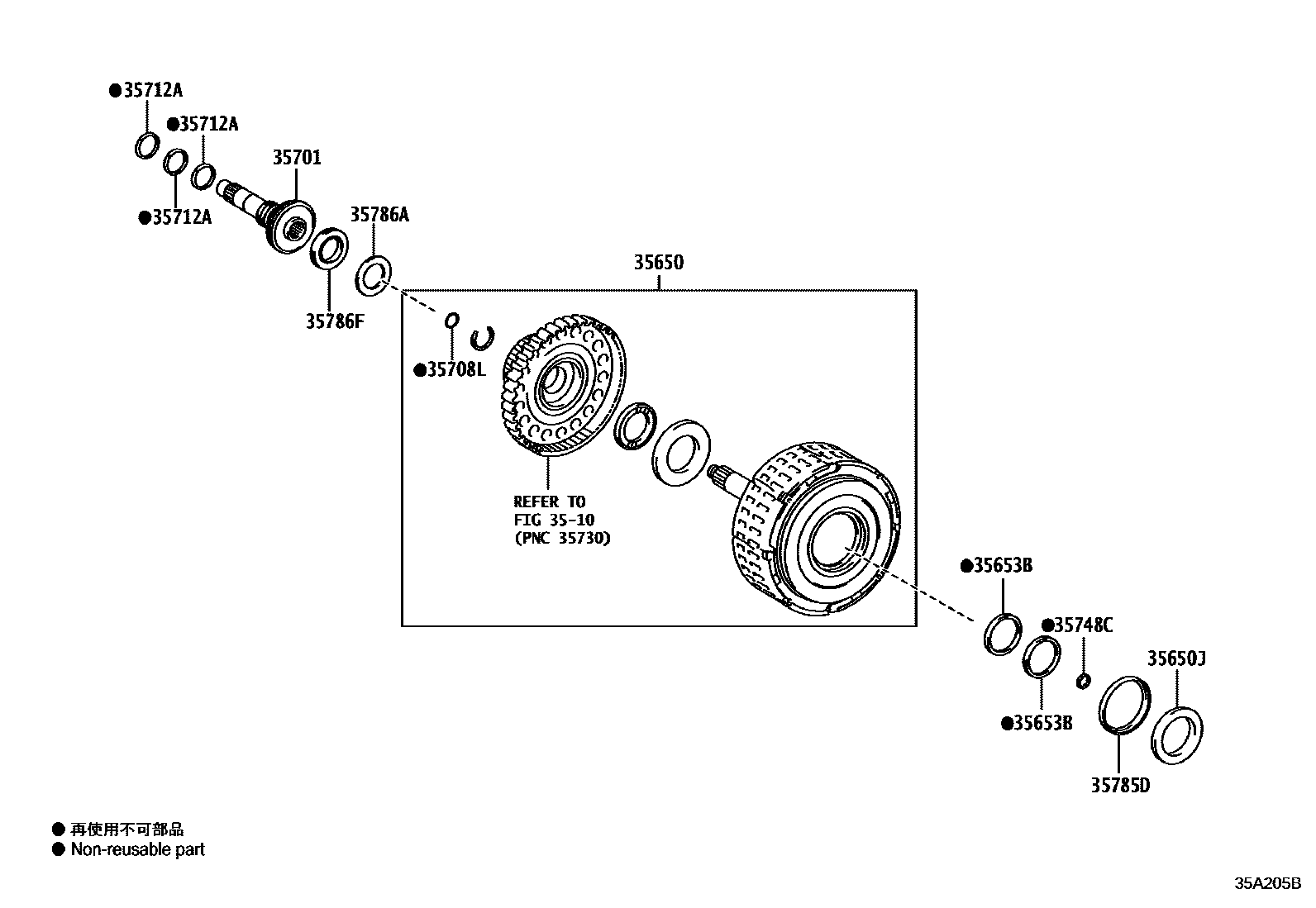

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
3510
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
35701SHAFT SUB-ASSY, INPUT
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1,AISIN:SEE 35-01
*229,NO.1:REF.ILLUST
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
*229,NO.2:REF.ILLUST
NO.2,AISIN:SEE 35-01
35712ARING, INPUT SHAFT OIL SEAL
35748CRING, INTERMEDIATE SHAFT OIL SEAL
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35786FBEARING, THRUST NEEDLE ROLLER
11 parts on this diagram · 3 diagrams in section
