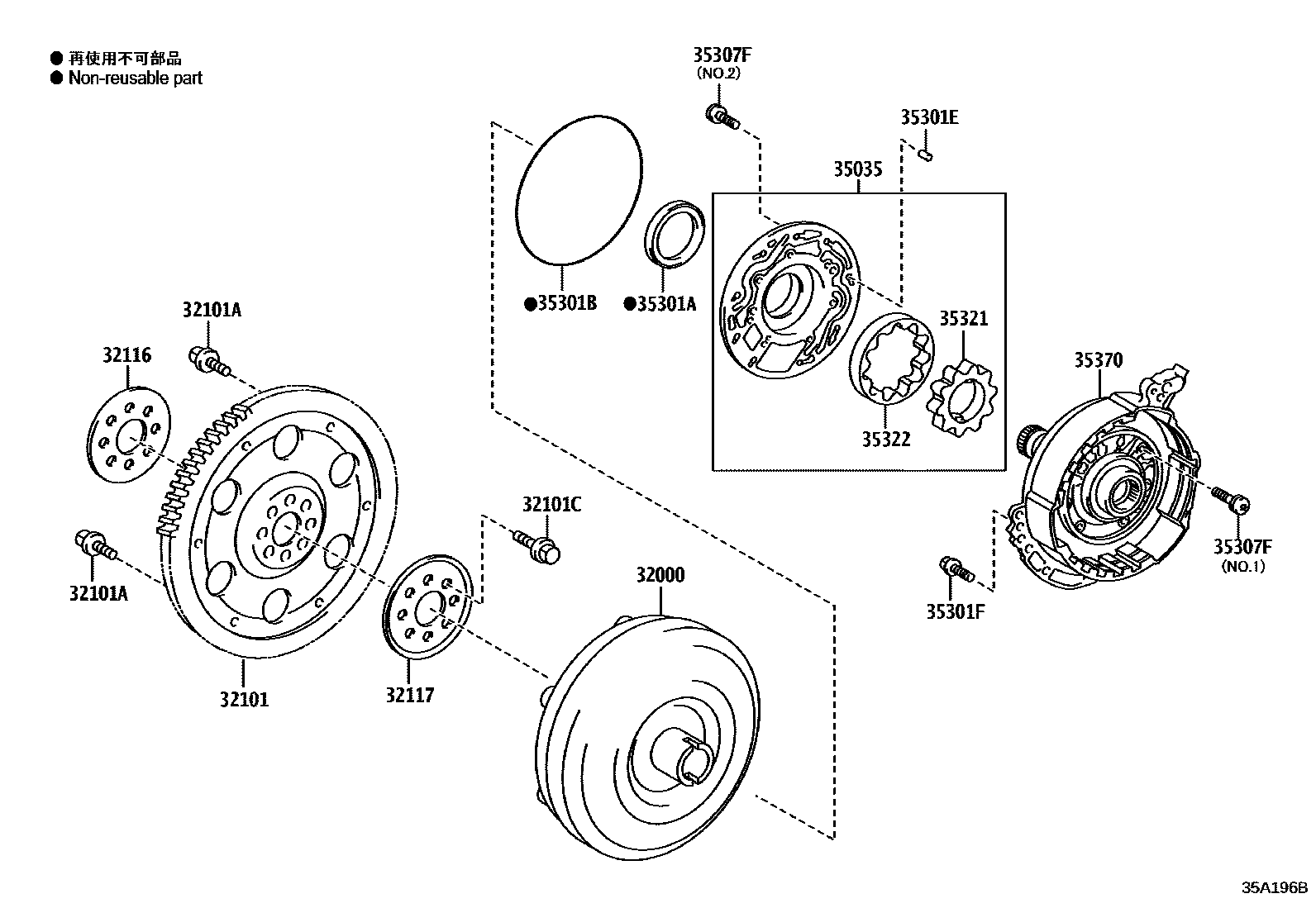

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
*12-1.25PX21-15
*12-1.25PX20.3-14.3
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
(L)
(J)
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35321GEAR, FRONT OIL PUMP DRIVE
T=11.567,MARK A
T=11.567,MARK B
T=11.567,MARK C
T=11.567,MARK D
T=16.66
T=16.66,AISIN AW:REFER 35-01
T=16.66,TOYOTA:REFER 35-01
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.567,MARK A
T=11.567,MARK B
T=11.567,MARK C
T=11.567,MARK D
T=16.66,AISIN AW:REFER 35-01
T=16.66,TOYOTA:REFER 35-01
T=16.66
15 parts on this diagram · 3 diagrams in section
